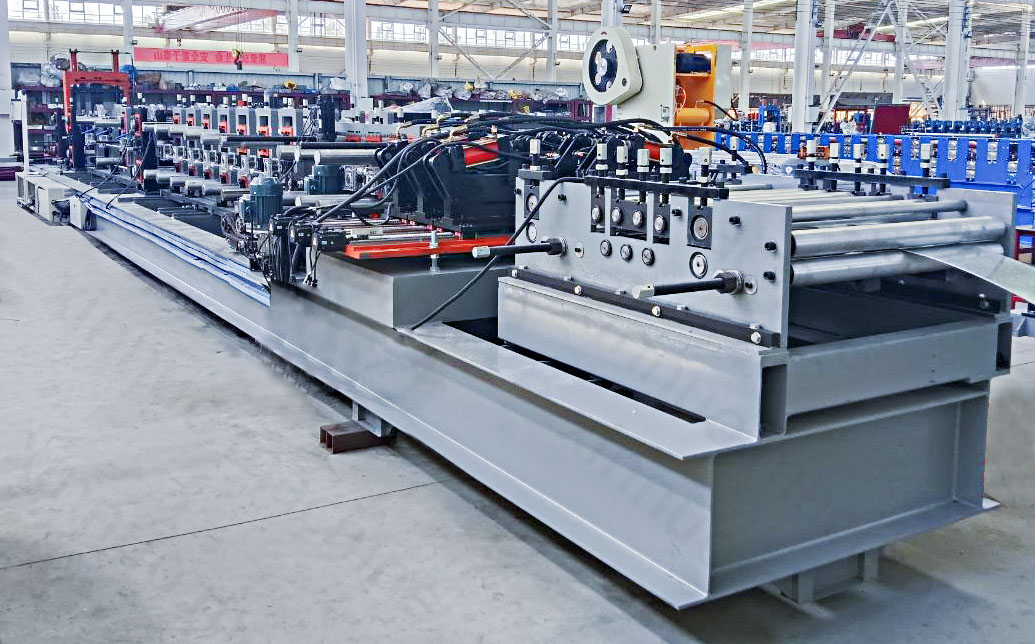

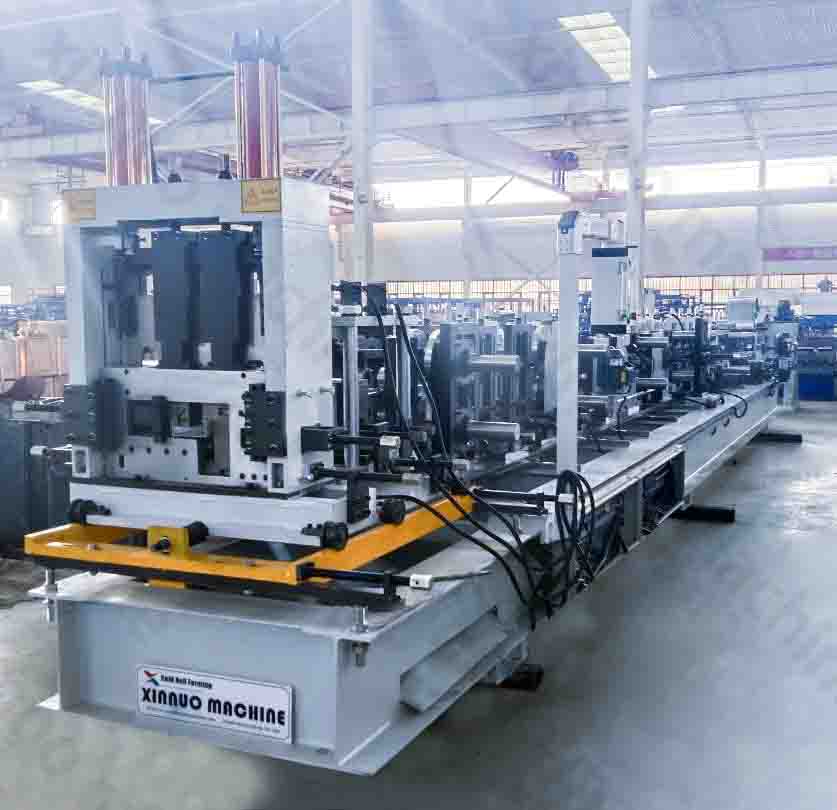

C Z automatic purlin roll forming machine

Short Description:


  • FOB Price: US $6500- 52000/set
  • Min.Order Quantity: 1 set
  • Supply Ability: 10 sets per Month
  • :
  • Product Detail

    configuration

    COMPANY PROFILE:

    what is metal roll forming?

    Product Tags

    Product Description
    lQLPDhsy5Pz0n0zNA-bNBiSwID5powPX6bQCJA8IUsDBAA_1572_998lQLPDhsy5RAHb6fNA-LNBdmw2NQg8vnWqWQCJA8npcDVAA_1497_994 lQLPDhsy5RrCArzNA2XNBWWwEVSB44ykLIoCJA844EDBAA_1381_869 lQLPDhsy5QZ-BlXNA-fNBg6w2F_eFp4758cCJA8X6oDaAA_1550_999lQLPDhsy5RrCArzNA2XNBWWwEVSB44ykLIoCJA844EDBAA_1381_869lQLPDhsy5RrCArzNA2XNBWWwEVSB44ykLIoCJA844EDBAA_1381_869
    c purlin roll forming machine use
    Specification
    1.
    Configation
    Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching
    Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
    2.
    Control System
    PLC Inverter Encoder Touch Screen
    3.
    Main Frame
    400mm H-Beam
    4.
    Total Power
    22 kw
    5.
    Power Supply
    380V, 3-Phase,50Hz
    6.
    Forming Speed
    12-24m/min
    7.
    Roll Station
    18 stands
    8.
    Roller Diameter
    80mm
    9.
    Effective Width
    80-300mm
    10.
    Feeding Thickness
    1.5-3.0mm
    11.
    Backboard Thickness
    20mm
    12.
    Cutter Standard
    GCr12
    13.
    Roller Standard
    Gcr15#
    14.
    Overall Size
    About 8500×1000×1400mm
    15.
    Total Weight
    About 10T
    16.
    Custom
    According to customer’s requirements
    表格宽度最宽为750,超过750的部分及内容均无法展示
    Why Choose Us
    Customer Reviews
    Packing & Delivery
    Packaging Details:
    Main machine is nude, the computer control box is packed with wooden frame.
    Main machine is nude in the container, the computer control box is packed with wooden packaging.
    Delivery Detail:
    20 days
    c z purlin roll forming machine of china c z section purlin cold roller machine
    Our Advantages
    LARGE CNC MILLING MACHINE
    c z purlin roll forming machine of china c z section purlin cold roller machine a unique plant in Hebei Province.It directly mills the entire frame. The milling machine can make the machine’s large surface smoother and the machine is more perfect. c z purlin roll forming machine of china c z section purlin cold roller machine
    SHOT BLASTING MACHINE
    c z purlin roll forming machine of china c z section purlin cold roller machine can handle the entire machine frame or parts,making the rusty surface clean and smooth The surface of the product increases adhesion.c z purlin roll forming machine of china c z section purlin cold roller machine
    NEW CNC MILLING
    c z purlin roll forming machine of china c z section purlin cold roller machine make the backboard of purlin machine, also make the holes on backboard. This milling machine can milling the backboard more level, hole place is more precious. This can make the roller more level after installing,and then the purlin will be more straight.
    Mechanical process
    c z purlin roll forming machine of china c z section purlin cold roller machine line, have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.After produce, have professional engineer to check if these are qualified.From one roller to one machine, we do every step carefully to make sure the quality.
    ELECTRICAL CONTROL
    All the control system of our machines we

    make by ourselves. we have a professional engineer to design and make the control system. c z purlin roll forming machine of china c z section purlin cold roller machine can make sure the after-sale service, when customer have problem with control, we can solve it timely.
    ENVIRONMENT FRIENDLY SPRAYING EQUIPMENT
    c z purlin roll forming machine of china c z section purlin cold roller machine electrostatic spraying equipment meets the environmental protection regulations of the Chinese government and guarantees the delivery time of the machine.
    Company Profile
    FAQ



  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.

  •
