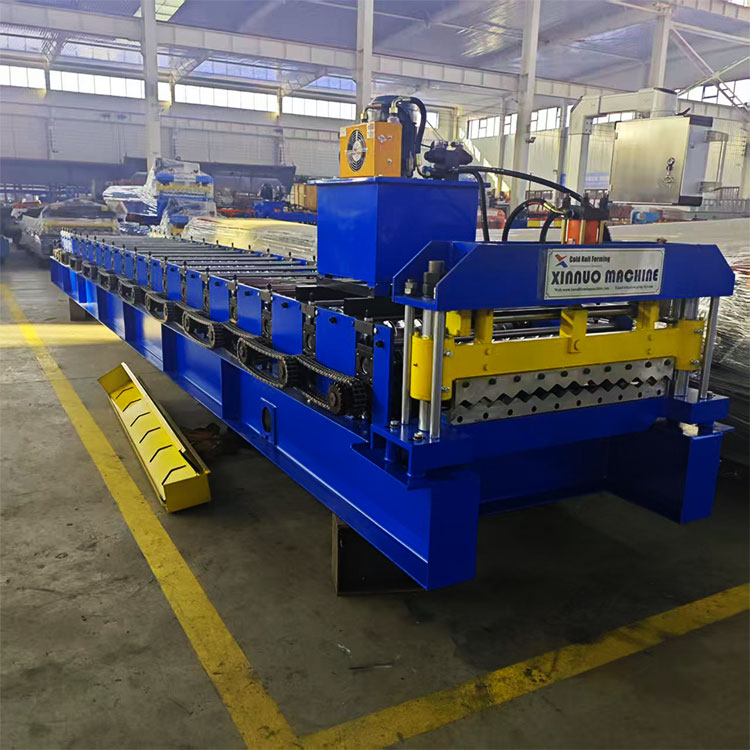

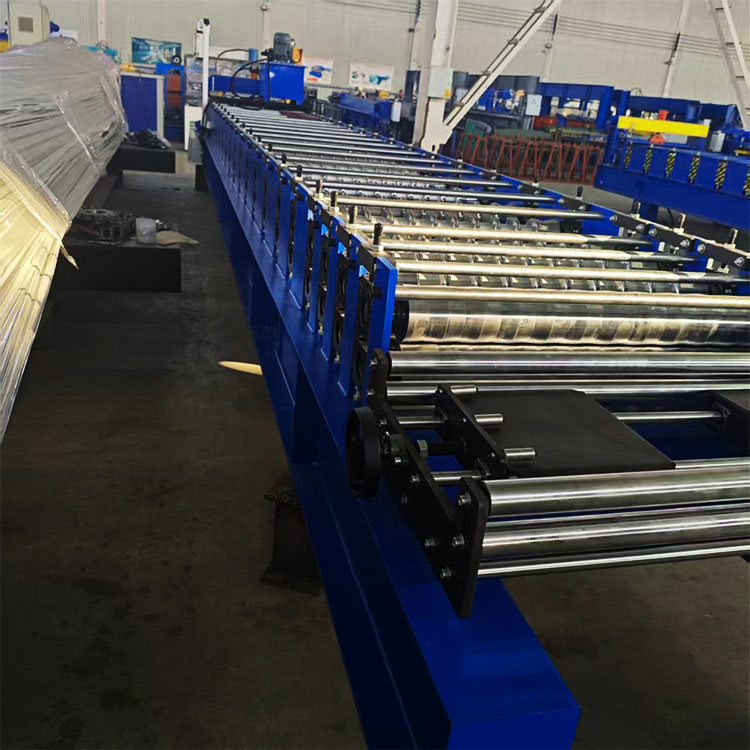

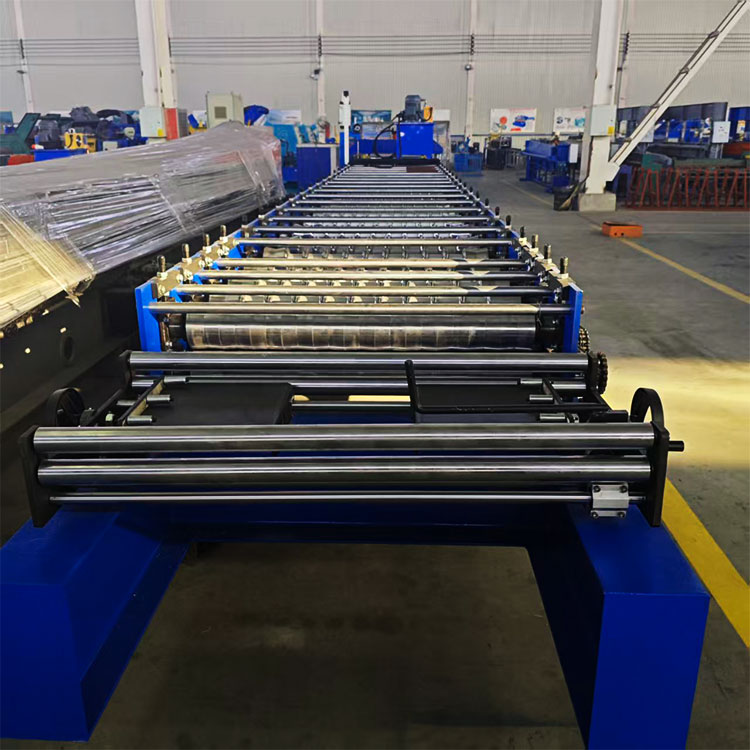

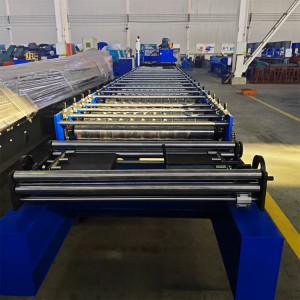

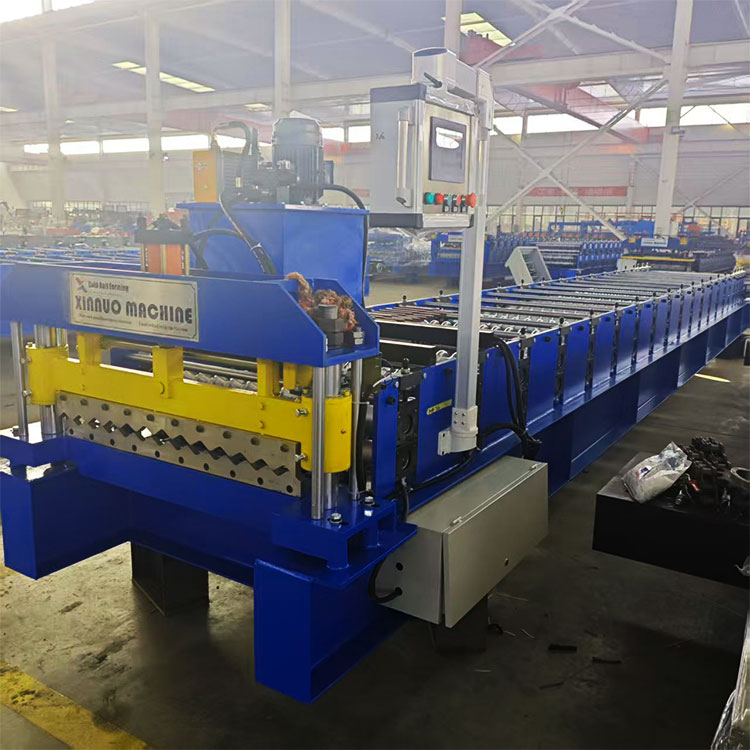

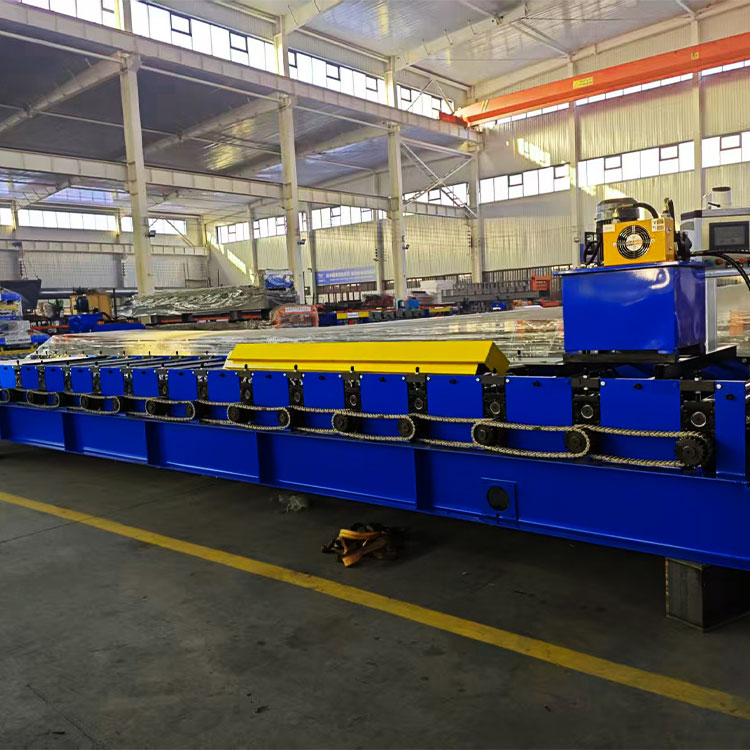

corrugated panel roll forming machine

Short Description:


Product Detail

configuration

COMPANY PROFILE:

what is metal roll forming?

Product Tags

corrugated  panel  roll  forming  machine

No. Main parameter of the machine for reference
1 Suitable to process Color steel plate
2 Width of the plate 850m
3 Thickness of the plate 0.3-0.8mm
4 De-coiler  Manual one, can load 5 tons raw material
5 Rollers for forming  11rows
6 Diameter of the roller 70mm
7 Rolling material Carbon Steel 45#
8 Main motor power 4kw
9 Productivity 8-12m/min
10 Cutting method Hydraulic mould cutting
11 Material of the cutting blade Cr12mov
12 Hydraulic cutting power  3kw
13 Processing precision Within 1.00mm
14 Control system Delta PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300H steel
17 Weight  About 3.5T
18 Dimensions 6.0*1.5*1.25m
19 Voltage 380V 3phases
20 Certificate  CE/ISO/TUV
Customized according to customer requirements




DSC04934 (2).jpg


Guarantee:

 12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.

 After-sale service:

 We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer  should pay the salary 100USD/DAY.



♦ COMPANY PROFILE:

     Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.








  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.

  •
