Product Overview
The Customizable Light Steel Keel Machine is a highly versatile, OEM-grade metal stud production line specifically engineered to meet the bespoke manufacturing needs of the drywall and partition wall industry. Designed for fabricators who require tailored solutions, this advanced roll forming system can be fully customized to produce a wide array of C-studs, U-tracks, and specialized framing profiles to exact architectural specifications. By integrating flexible mechanical design, automated hydraulic punching, and intelligent PLC control, this customizable production line empowers manufacturers to seamlessly adapt to diverse market demands, streamline OEM workflows, and deliver premium, dimensionally accurate steel framing components for modern construction projects.
- Ultimate Customizability & OEM Flexibility: Engineered to accommodate bespoke client requirements, the machine’s forming stations and punching dies can be easily modified or swapped. Whether you need non-standard profile dimensions, specific rib designs, or unique interlocking mechanisms, this OEM production line can be precisely tailored to manufacture your proprietary drywall framing systems.

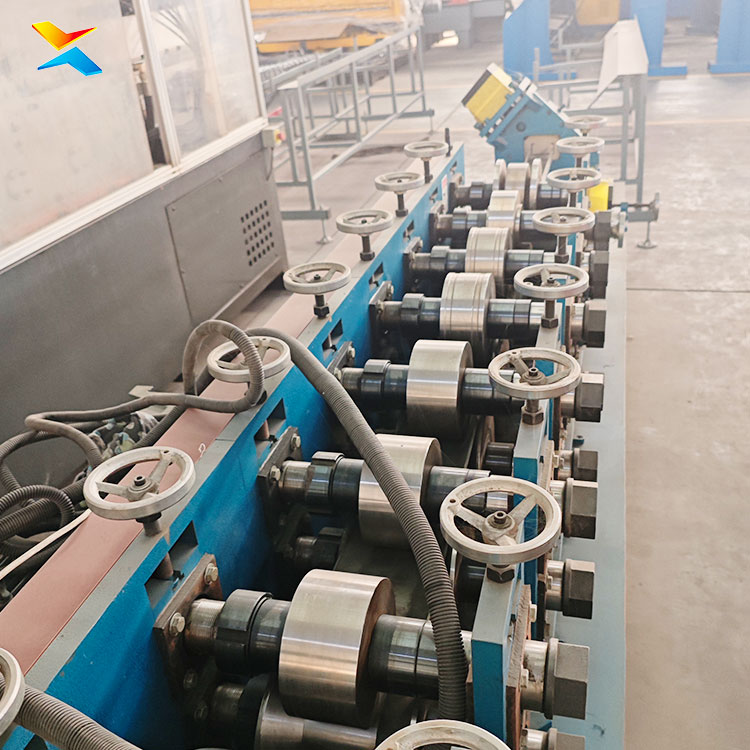

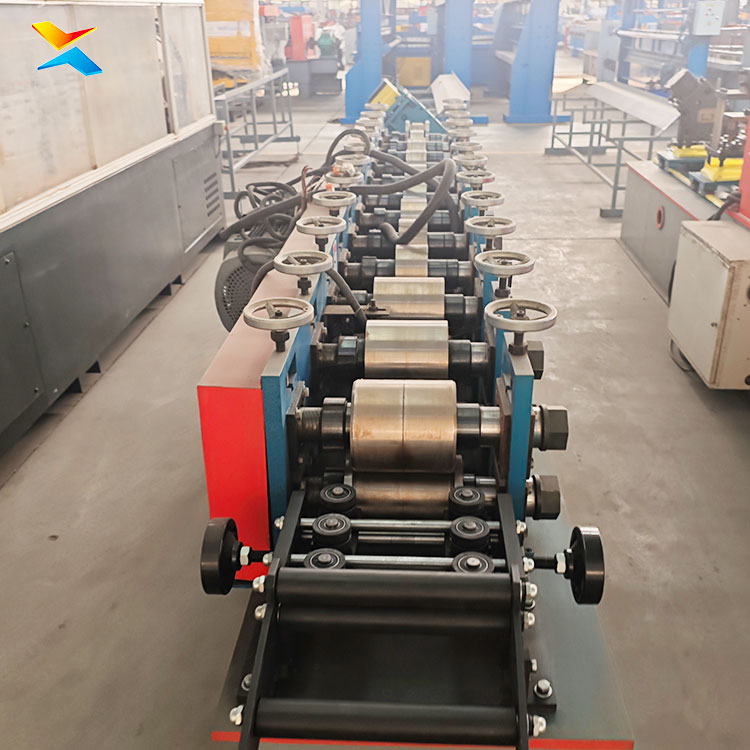

- Precision Roll Forming & Structural Integrity: The machine features meticulously calibrated, heavy-duty forming rollers crafted from premium-grade tool steel. This guarantees that every customized metal stud and track features crisp edges, exact dimensional tolerances, and flawless structural straightness, ensuring perfect alignment and superior load-bearing capacity during drywall installation.
- Integrated Automatic Hydraulic Punching: Designed for OEM efficiency, the system includes a high-speed hydraulic punching unit that automatically creates precise mounting holes, service openings, and screw dimples directly during the forming process. The punching positions and patterns are fully programmable via the PLC, eliminating secondary processing and drastically reducing labor costs.
- Intelligent PLC Automation & Quick Changeovers: Governed by a cutting-edge Programmable Logic Controller (PLC) and a user-friendly touchscreen HMI, the machine automates the entire workflow. Operators can effortlessly store and recall custom profiles, set production lengths, and manage batch quantities. The intelligent system ensures high repeatability and rapid recipe switching for different OEM orders.

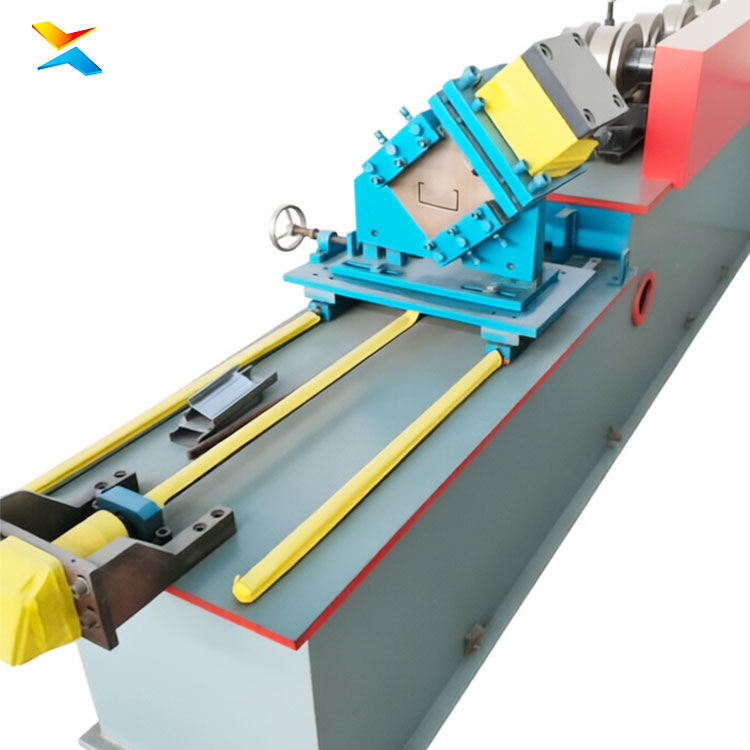

- Continuous High-Speed Cutting System: Equipped with a reliable hydraulic flying shear or high-speed mechanical cutting mechanism, the machine executes clean, burr-free cuts at exact lengths without stopping the production line. This continuous cutting technology maximizes throughput and ensures seamless manufacturing of custom-length studs and tracks.
- Premium Material Compatibility & Surface Protection: Specifically optimized for processing high-quality galvanized steel coils, the machine’s precision leveling systems and smooth, hard-chromed rollers protect the zinc coating from scratching or peeling. This ensures the final customized keels maintain their superior corrosion resistance and long-term durability.
The highly customizable light steel keels and tracks produced by this OEM machine serve as the foundational framework for a wide range of modern construction and architectural sectors, including:
- Custom Drywall & Partition Systems: Manufacturing proprietary or specialized steel framing for commercial offices, hospitals, hotels, and retail spaces requiring unique acoustic or fire-resistant solutions.
- Light Steel Frame (LSF) Housing: Producing bespoke structural studs and tracks for residential homes, villas, and multi-story buildings tailored to specific architectural blueprints.
- Modular & Prefabricated Construction: Supplying highly standardized, yet custom-sized, steel components for rapid-deployment modular housing, temporary structures, and container conversions.
- Specialized Architectural Framing: Creating unique metal profiles for suspended ceilings, curved walls, and specialized interior design elements that require non-standard steel framing.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
