 CZ  purlin  roll  forming  machine

Product Description:

china supplier XINNUO 2016 hot sale high quality fully automatic C Z purlin roll forming machine



Equipment components:



Man-made uncoiler, Roll forming machine, computer control  system, hydraulic control system, cutting

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building

manufacturing, and have features such as nice appearance and durable.









C Z Purlin Roll Forming Machine Main parameters



1.Echnical parameters



1. Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler,  Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
2. Control System PLC  Inverter  Encoder   Touch Screen
3. Main Frame 400mm H-Beam
4. Total Power 22 kw
5. Power Supply 380V, 3-Phase,50Hz
6. Forming Speed 12-24m/min
7. Roll Station 18 stands
8. Roller Diameter 80mm
9. Effective Width 80-300mm
10. Feeding Thickness 1.5-3.0mm
11. Backboard Thickness 20mm
12. Cutter Standard GCr12
13. Roller Standard Gcr15#
14. Overall Size About 8500×1000×1400mm
15. Total Weight About 10T
16. Custom According to customer’s requirements

NOTE: All technical parameters can be changed according to user s need, and only as a reference.





2.C Z Purlin Roll Forming Machine Components specification



(1) Manual Uncoiler

Max.Capacity:5T



(2)Pre- Cutting Device& Pre-Punching Device

It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

Cutting length tolerance:±2mm

Material:GCr12 with quenched treatment 60-62°C



(3)Hydraulic System

Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

Power: 22 KW



(4)Control System

It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

Computed mode: automatic or manual



(5)Encoder

The counter gauges length, and modulates pulses.



(6)Simple Stack

It is used for loading the formed plate.







Product Pictures:

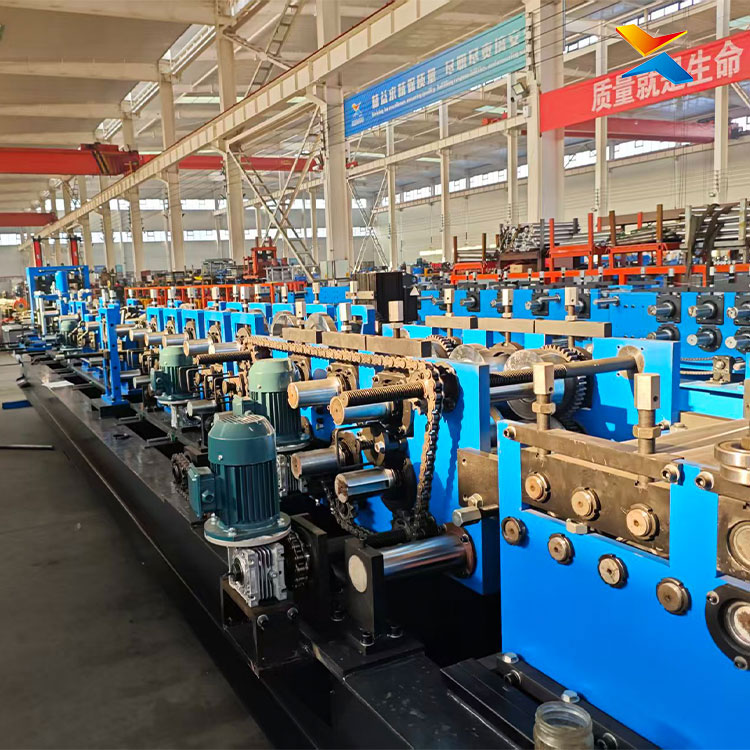

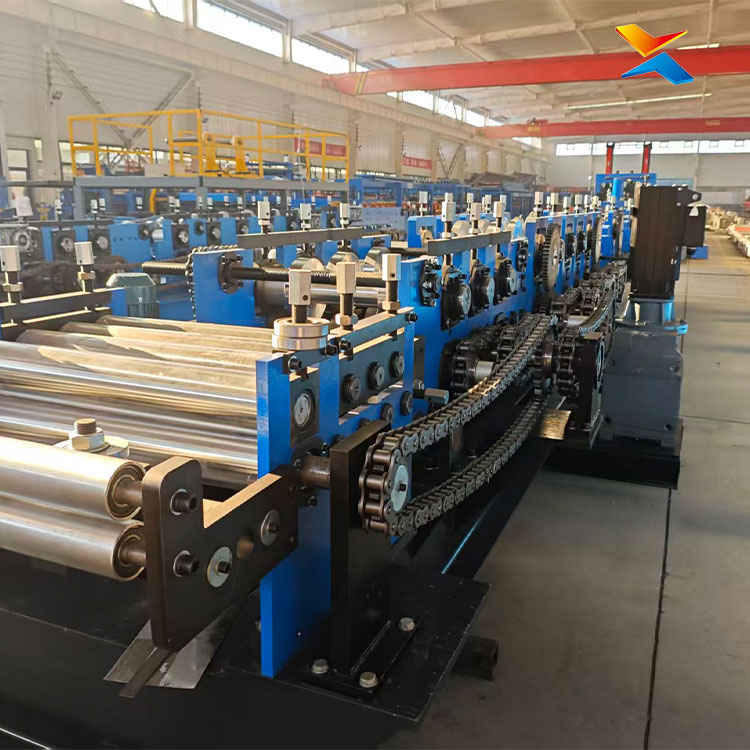

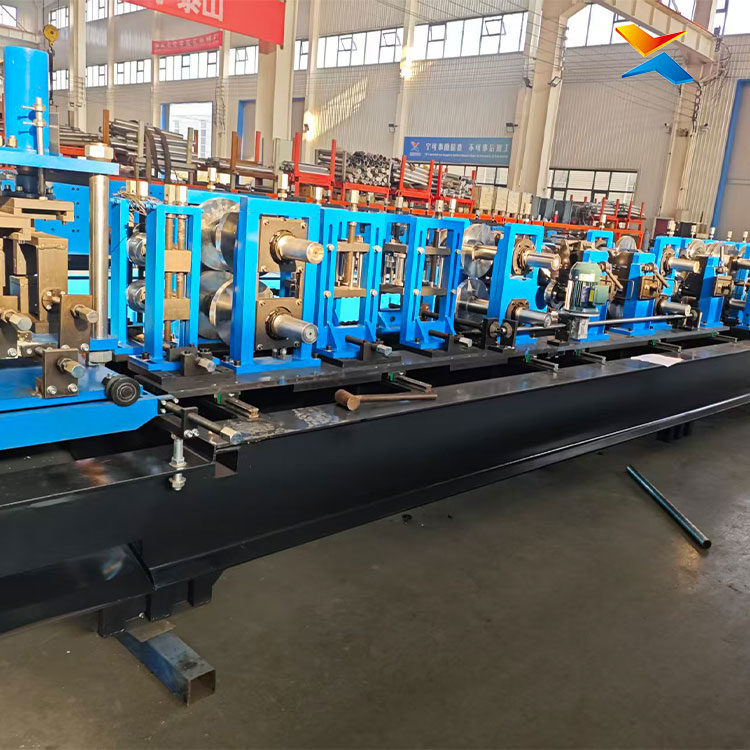

china supplier XINNUO 2016 hot sale high quality fully automatic C Z purlin roll forming machinechina supplier XINNUO 2016 hot sale high quality fully automatic C Z purlin roll forming machinechina supplier XINNUO 2016 hot sale high quality fully automatic C Z purlin roll forming machine









Detailed Images:

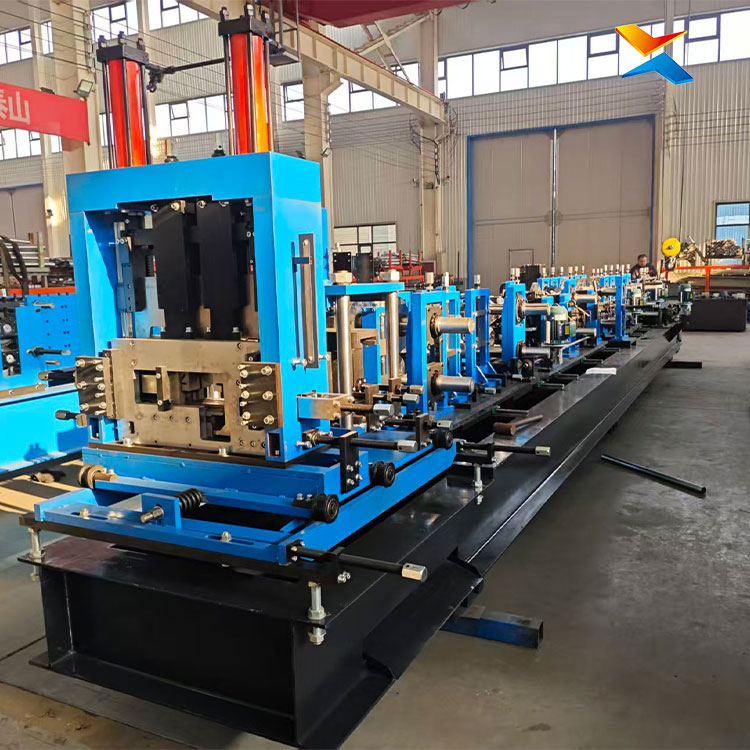

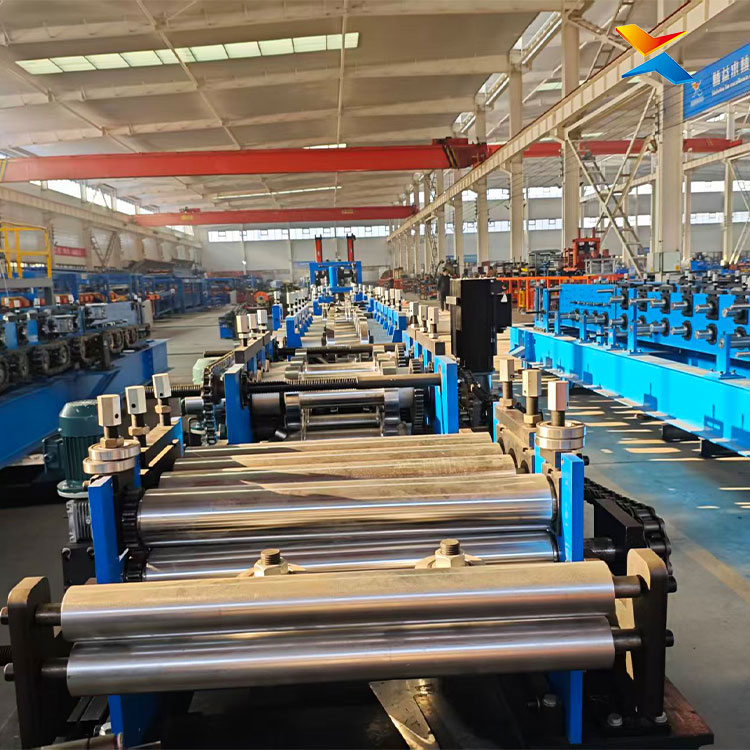

china supplier XINNUO 2016 hot sale high quality fully automatic C Z purlin roll forming machine

Our Services:

 china supplier XINNUO 2016 hot sale high quality fully automatic C Z purlin roll forming machine



Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract

value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa,

Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.





Packaging & Shipping:

 china supplier XINNUO 2016 hot sale high quality fully automatic C Z purlin roll forming machine

Company Information:

           Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming

machines, but also develop intelligent automatic roll forming production lines, C Z Purlin Roll Forming Machine ,

highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel

machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products’ quality. We adopt computer software for

design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced

computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by

day!Our sales network covers all over China. We also sell products to all over the world.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you

throughout the period of our cooperation.If necessary, we can supply you with local technical support and send

technicians to for installation and operation training.







FAQ:





  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.

  •
