Double Layer Single Sheet Forming Machine Details

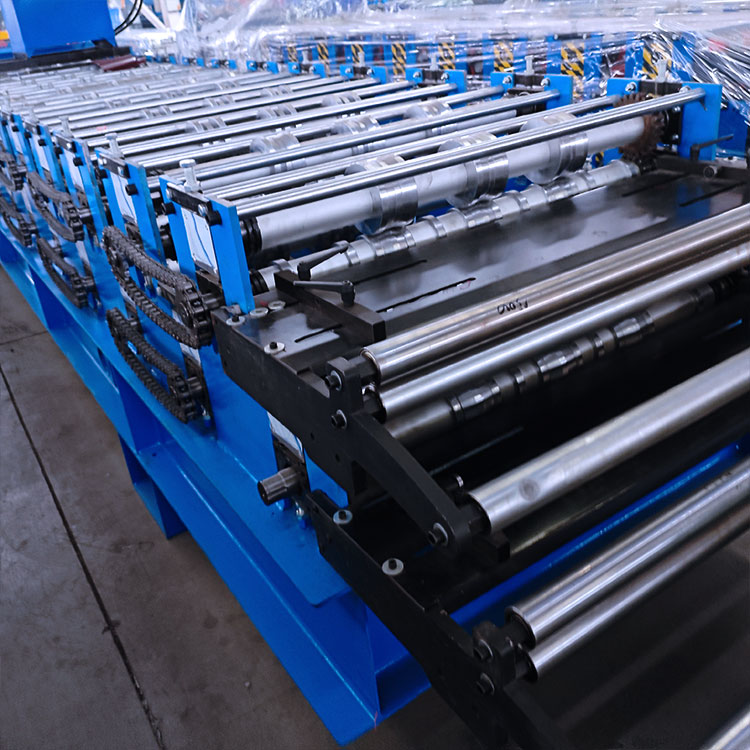

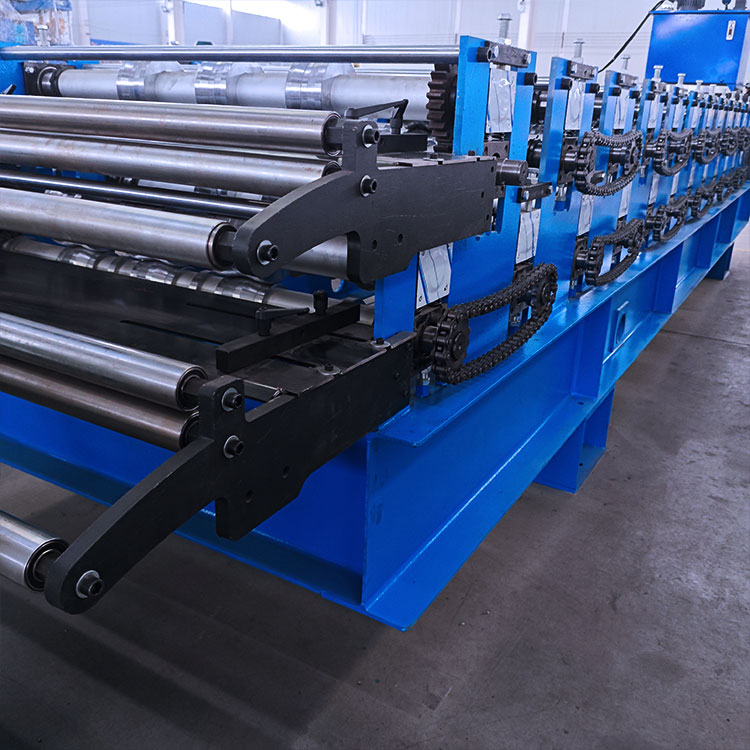

Double Layer Single Sheet Forming Machine is a professional automatic cold roll forming equipment, mainly used for continuous forming of metal sheets into two different specifications of profiles. It integrates uncoiling, leveling, feeding, roll forming, automatic cutting and receiving into one integrated production line, which is efficient, space-saving and cost-effective.

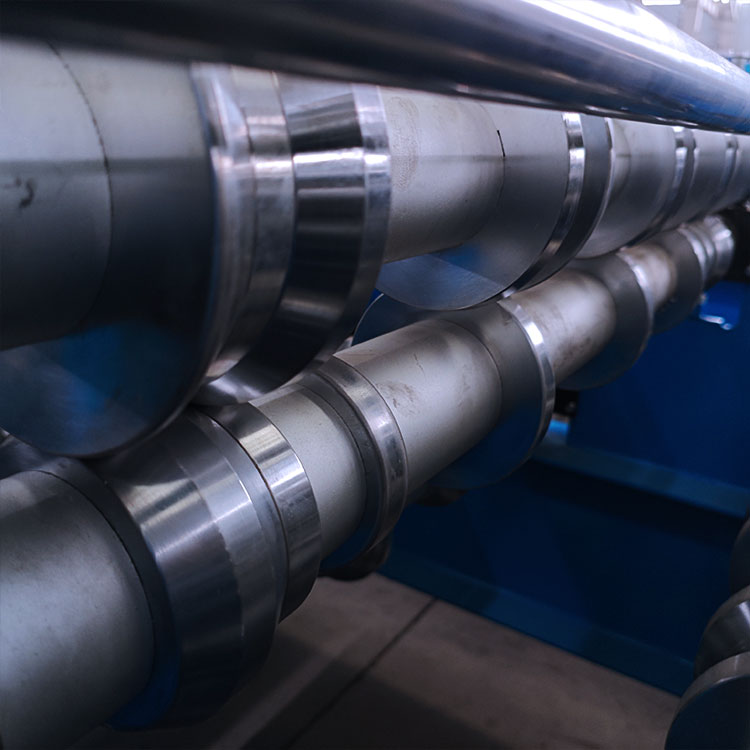

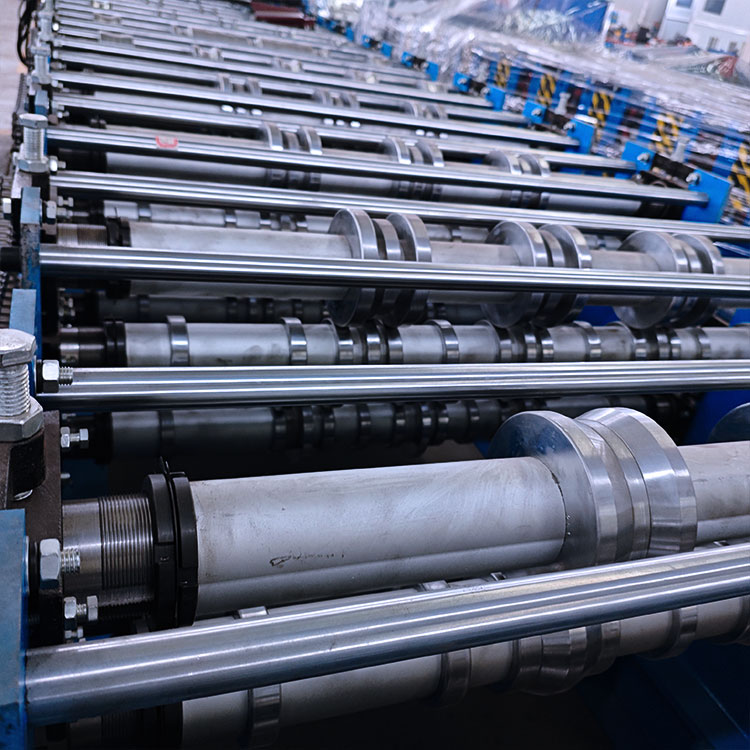

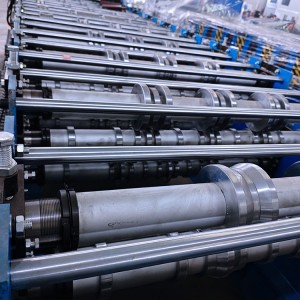

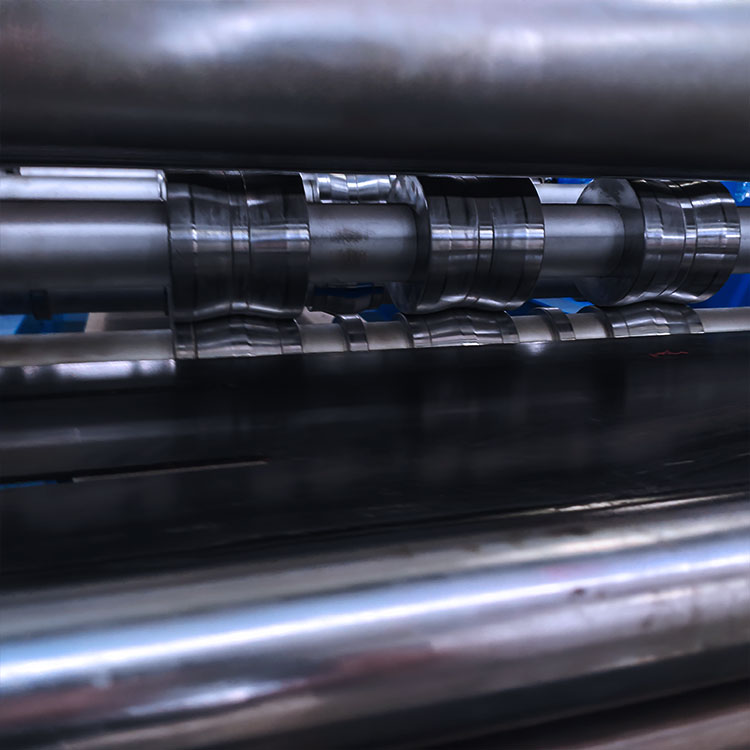

Core Performance: Adopts double-layer independent forming stations, which can produce two different profiles (trapezoidal sheet, corrugated sheet, etc.) simultaneously or separately, saving 50% workshop space. Equipped with PLC touch screen control system, it is easy to set parameters and realize full automatic operation, reducing labor cost. Forming rollers are made of high-quality alloy steel, with high precision (tolerance ≤±0.1mm), smooth profile surface and no burrs.

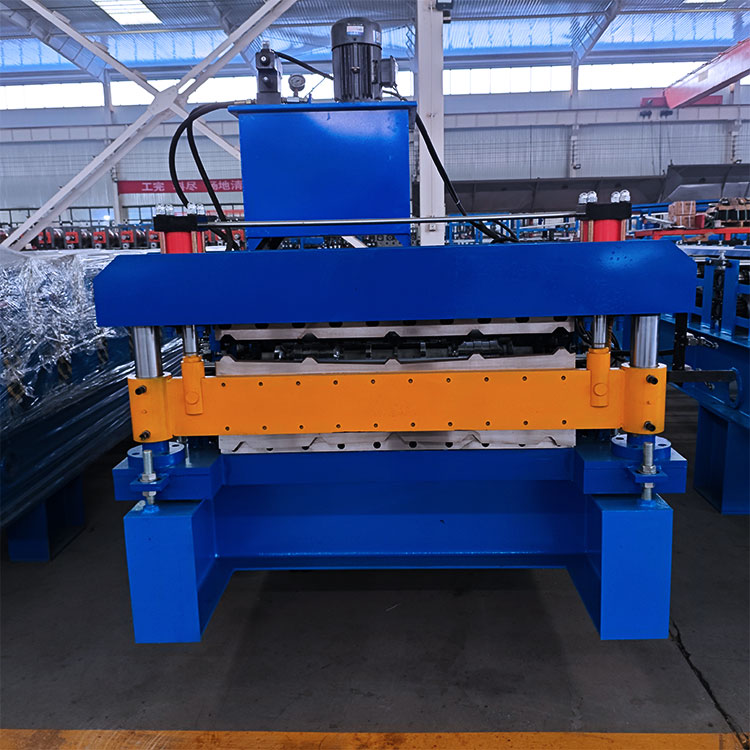

Applicable Materials & Parameters: Suitable for galvanized steel sheet, color steel sheet, aluminum sheet. The material thickness is 0.3-0.8mm (customizable up to 1.2mm), forming speed is 8-12m/min, and voltage is 380V 3P 50Hz (customizable). The cutting mode is hydraulic, realizing fixed-length cutting with clean and accurate effect.
Application: Widely used in industrial factories, warehouses, commercial buildings, residential construction, steel structure projects and prefabricated buildings, mainly for processing roof panels, wall panels and other building materials.
Quality & After-sales: It is CE and ISO9001 certified and strictly tested before delivery. We provide 1-year warranty for the whole machine, lifelong maintenance, as well as professional technical support and spare parts supply.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
