High Efficiency Trapezoidal Sheet Production Line Equipment
Product Description
This high-efficiency trapezoidal sheet production line is a fully automatic integrated equipment designed for continuous mass production of trapezoidal profiled sheets. It is mainly used for processing color-coated steel coils, galvanized steel coils and other metal coils, widely applied in the manufacturing of roof panels, wall panels and enclosure sheets for steel structure buildings, warehouses, factories and commercial buildings.

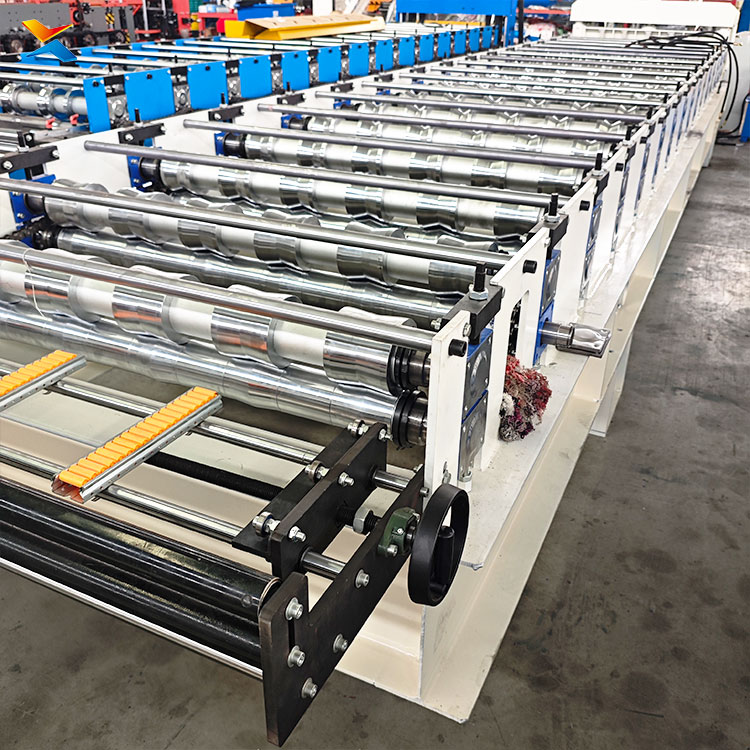

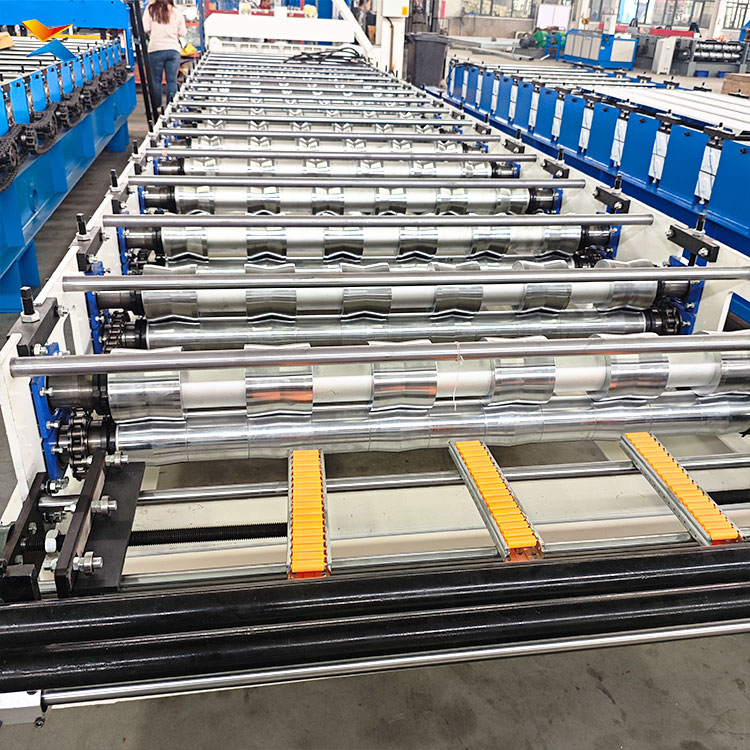

The whole production line consists of decoiler, leveling device, roll forming host, hydraulic cutting system, receiving table and PLC electrical control system. It realizes fully automatic operation from uncoiling, feeding, leveling, forming to fixed-length cutting, greatly improving production efficiency and reducing labor cost.

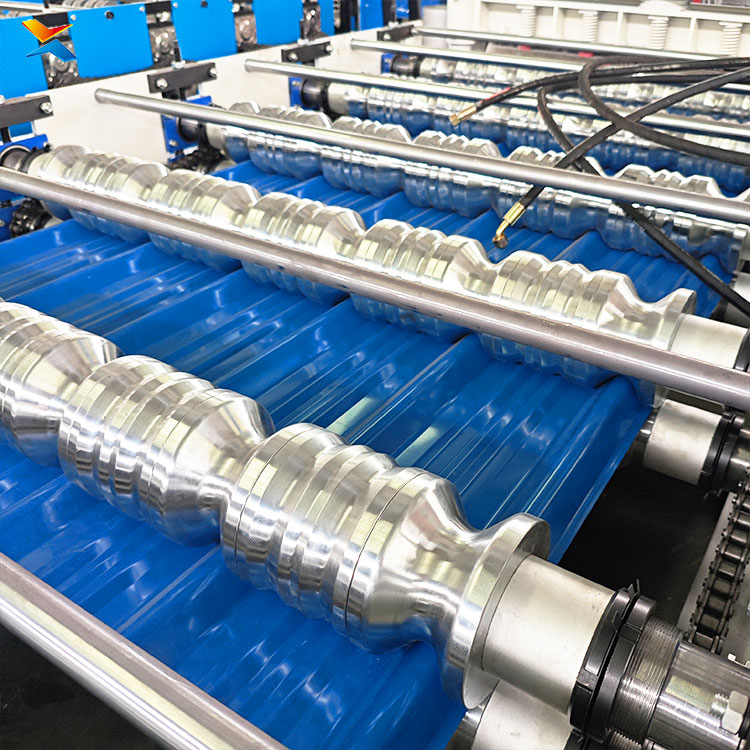

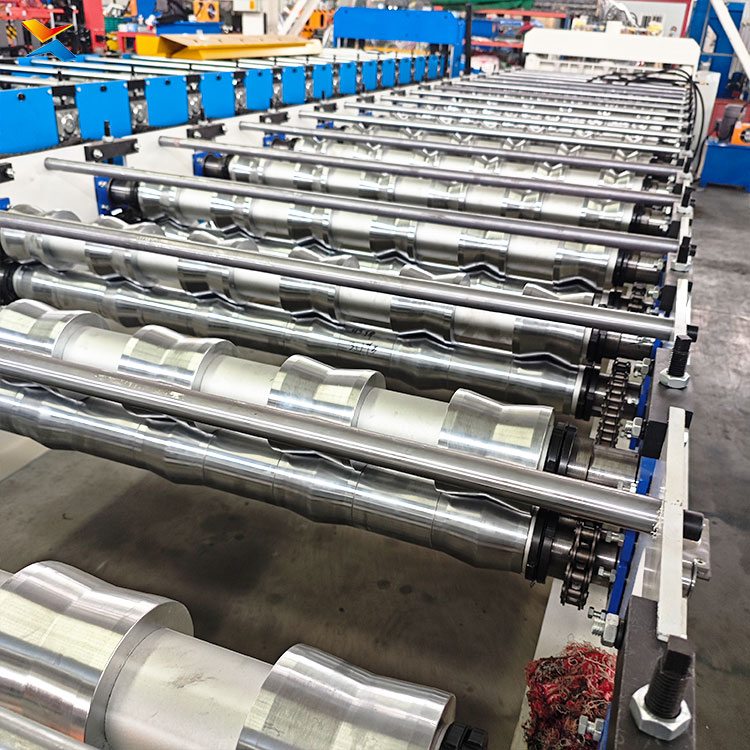

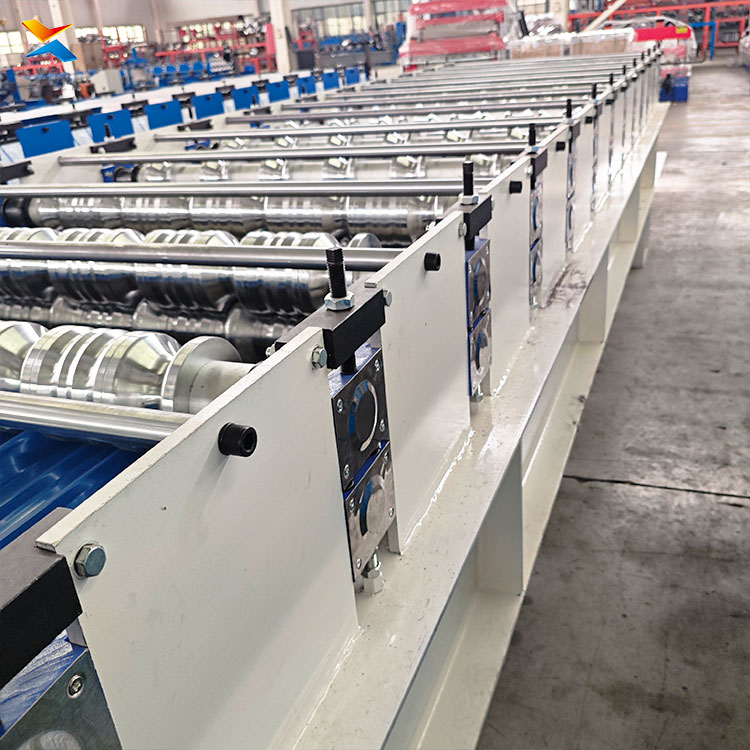

The equipment adopts a heavy-duty welded frame structure with strong rigidity and good stability, ensuring stable and reliable operation under long-term high-load working conditions. The forming rollers are made of high-quality alloy steel through precision machining, quenching and hard chrome plating, featuring high wear resistance, long service life and high forming precision. The finished sheets have smooth surface, neat size and good consistency.
Equipped with an intelligent PLC control system and touch screen operation interface, it supports free setting of sheet length, production quantity and running speed. The hydraulic cutting system adopts high-grade mould steel, with fast cutting speed, flat incision and no burrs, effectively reducing material waste. The transmission system is stable with low noise, and the speed can be adjusted steplessly to meet different production capacity requirements.
This production line features compact structure, easy operation, convenient maintenance, high automation and stable performance. It can adapt to metal coils of different thicknesses and produce various standard trapezoidal profiles, which is ideal equipment for building material manufacturers to achieve efficient and large-scale production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
