Light Keel Roll Forming Machine

Short Description:


Product Detail

configuration

COMPANY PROFILE:

what is metal roll forming?

Product Tags



Light  Keel  Roll  Forming  Machine





Product Description:
1 Suitable to process Color steel plate, galvanized sheet,

aluminum coils and etc.

Control System PLC Colored Touch Screen
3 Roller station 10 rows or custom
4 Thickness of feeding material 0.3-1.5mm
5 Productivity  35-50m/min
6 Rollers’ material 45# Plating Cr
7 Diameter of shaft 42mm
8 Weight  About 2.5T
9 Size  5000*800*1600mm
10 Voltage 380V 50Hz 3phases
11 Cutter Standard GCr12
12 Main frame 18mm steel welding
13  Motor power 5.5+4 kw







Packaging Details: Main machine is nude, the computer control box is packed with wooden frame.
  Main machine is nude in the container, the computer control box is

packed with wooden packaging.

Delivery Detail: 20 days

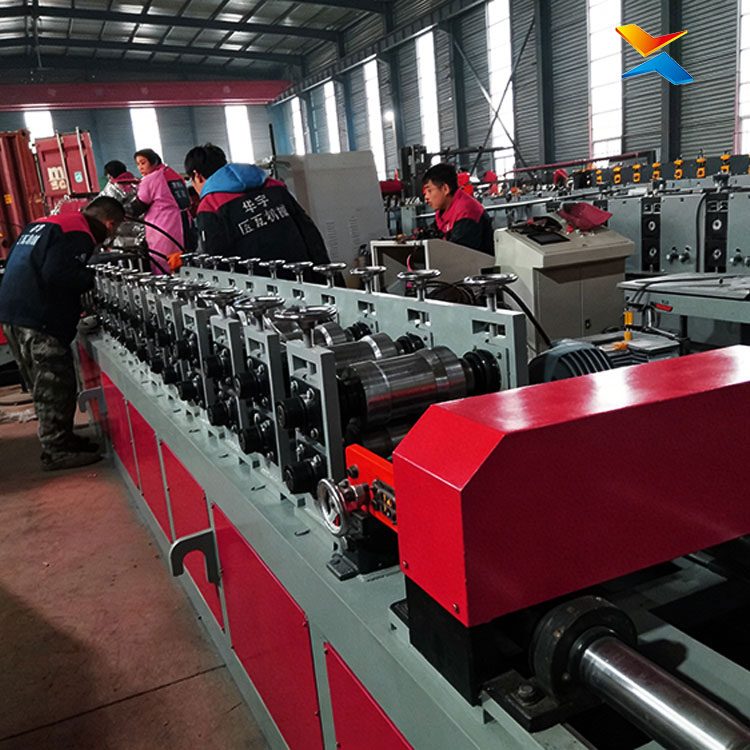

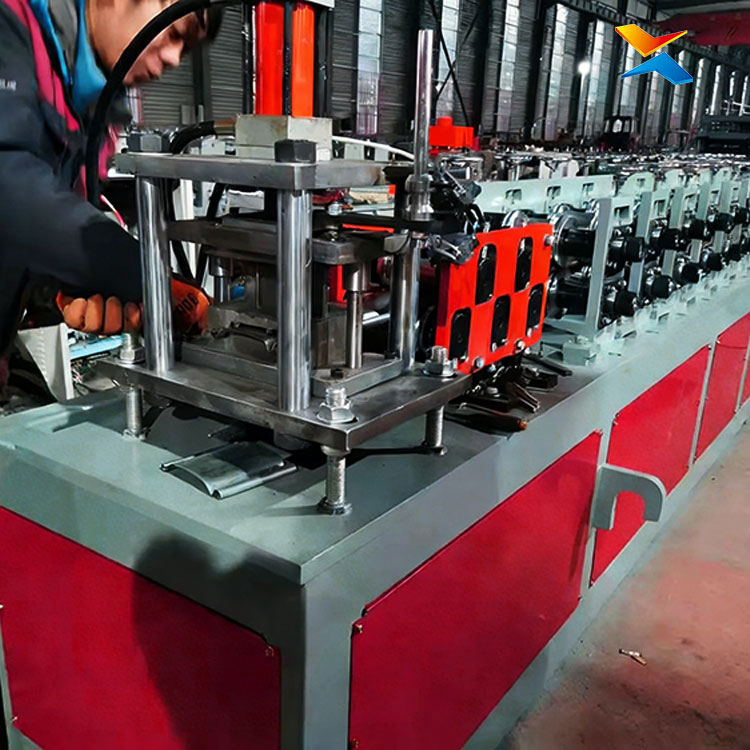

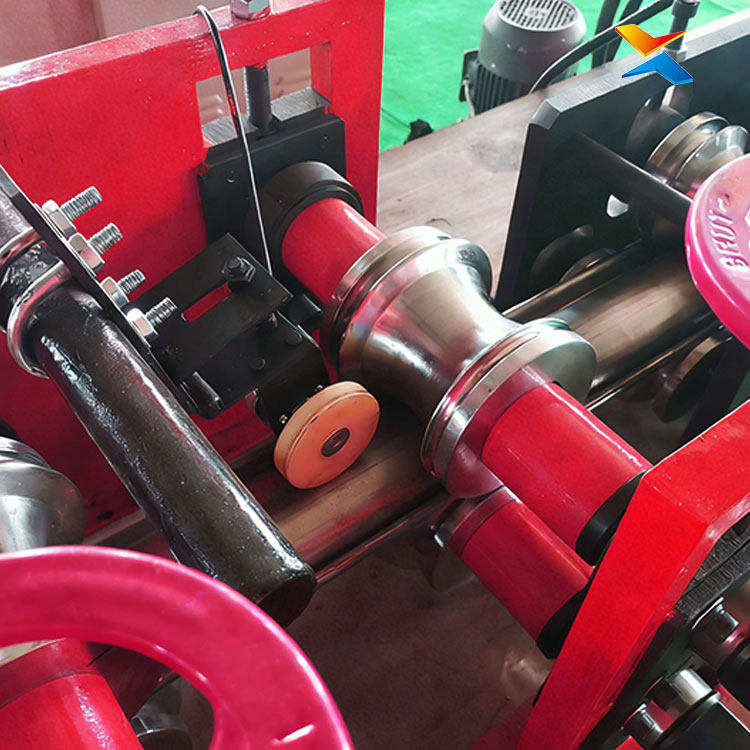

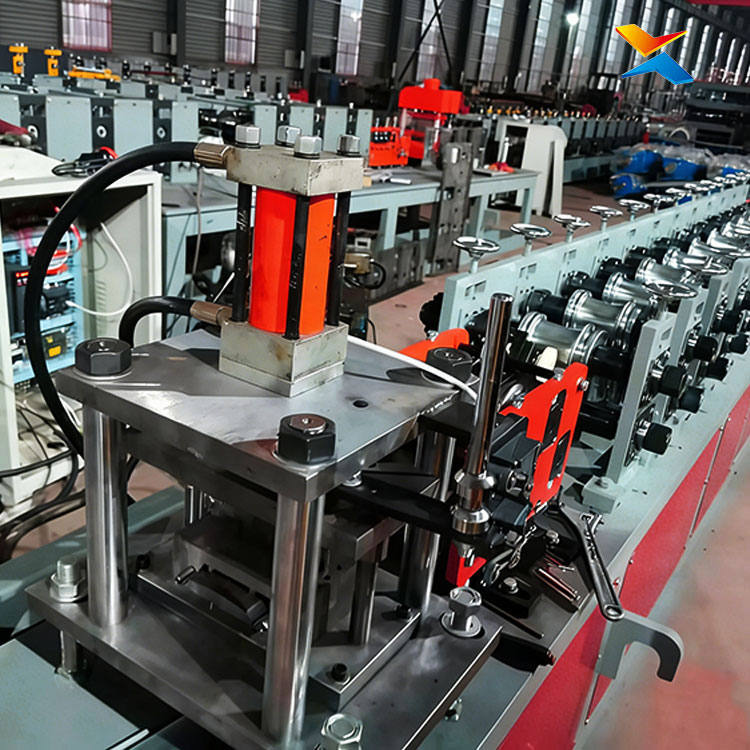

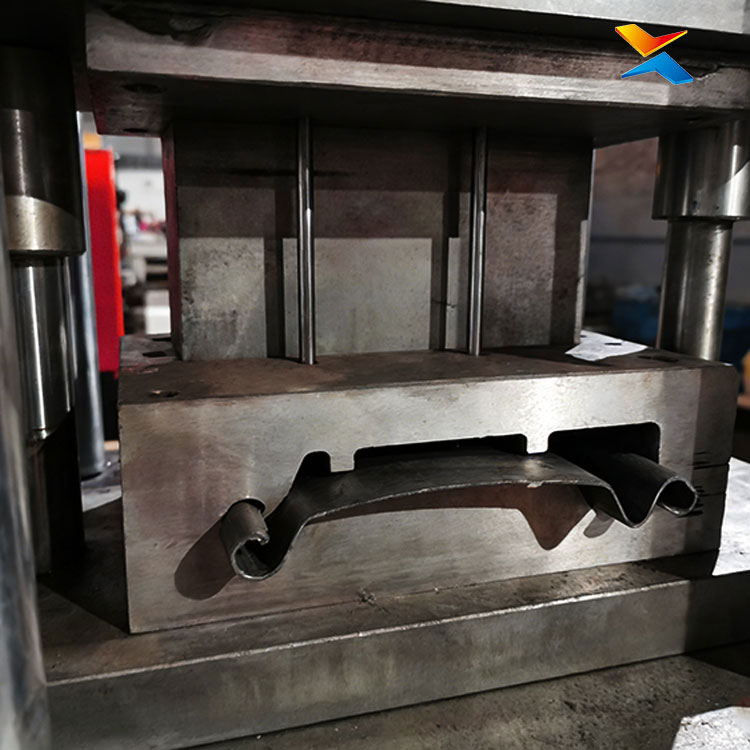

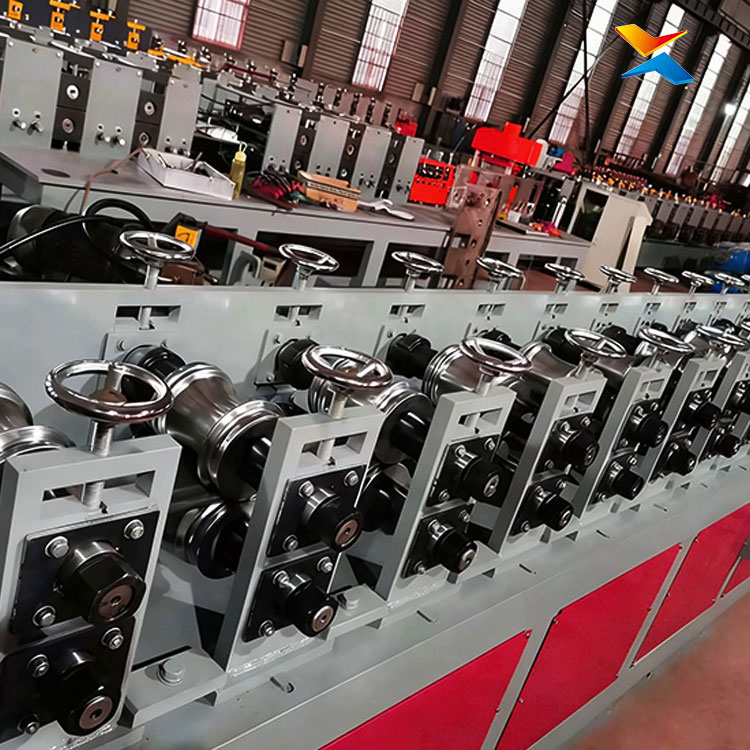

Product Pictures:


















COMPANY PROFILE:



    Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming

machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway

guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines,

shutter slat door forming machines, downpipe machines, gutter machines, etc.

Our Services:










Guarantee:



12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due

to operate error,buyer will pay for the shipping fee.

After-sale service:

We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket

and suitable accommodation,also buyer should pay the salary 100USD/DAY.

Metal keel cu shape roll forming machine / light steel gauge metal truss production line
FAQ:



  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.

  •
