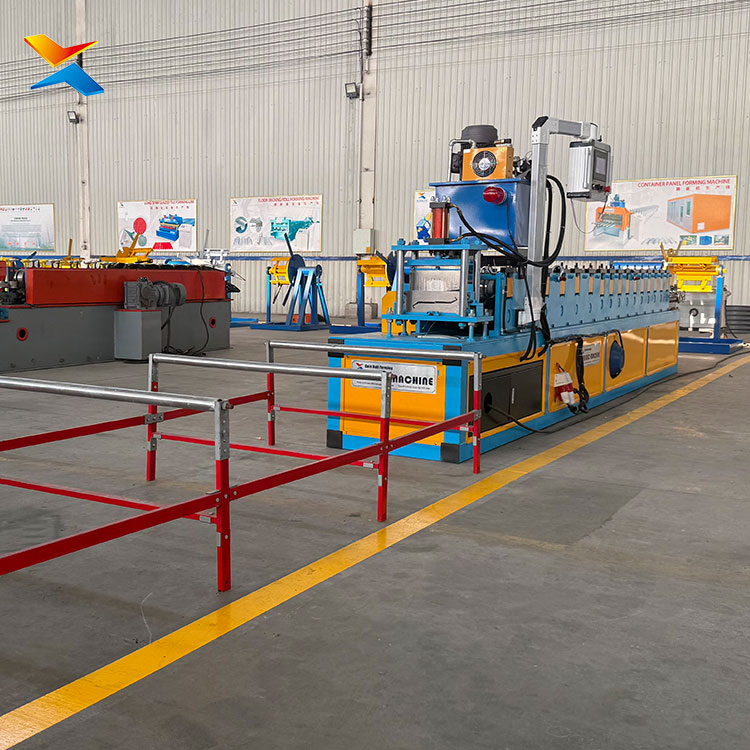

Louvers Panel Roll Forming Machine For Building Wall Decoration
Product Overview
The louver panel roll forming machine is a professional, high-efficiency cold roll forming equipment specially developed for the production of building wall decoration louver panels. It is designed to meet the personalized and diversified production demands of modern architectural exterior and interior wall decorative louvers. Adopting advanced continuous roll forming technology, the machine can process various metal raw materials into standardized, beautiful and high-strength wall louver panels in one continuous process, which is an ideal core equipment for building decoration material manufacturers to upgrade production and improve product competitiveness.

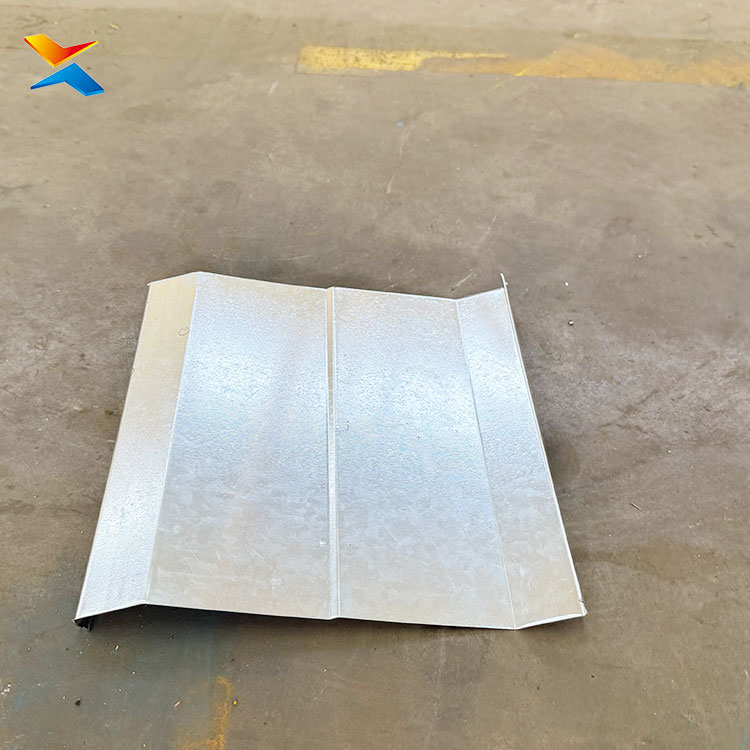

This forming machine is tailored for architectural wall decoration scenarios. The finished louver panels produced have uniform plate type, smooth surface, precise size and good three-dimensional sense. They are widely applicable to exterior wall ventilation and heat dissipation decoration of commercial buildings, office buildings, villas, as well as interior wall shading, sound insulation and decorative louver structures. The equipment realizes fully automated continuous production, effectively solving the problems of low efficiency, poor consistency and high error rate of traditional manual or semi-automatic louver processing equipment.
Core Features & Advantages
1. Integrated One-Time Forming, High Production Efficiency

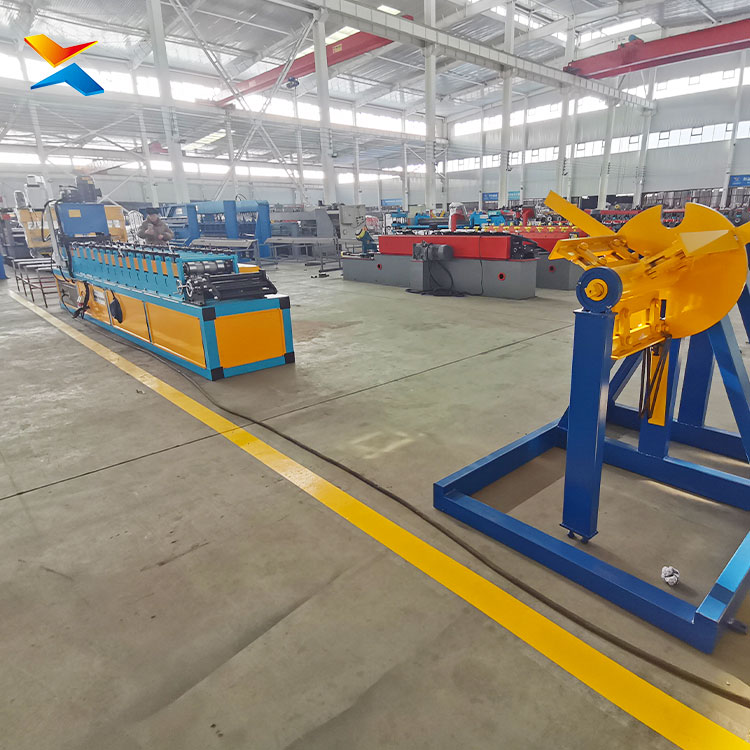

The machine integrates feeding, leveling, roll forming, punching, cutting and discharging into one automatic production line. It completes the whole processing procedure from raw material coil to finished louver panel at one time without secondary processing. The production speed is stable and efficient, which greatly saves labor costs and shortens the production cycle. It can realize continuous batch production and effectively improve the enterprise’s production capacity and delivery efficiency.
2. Precise Forming & Stable Product Quality
Equipped with high-precision alloy forming rollers and imported servo control system, the equipment features stable operation and high forming precision. The roller surface is treated with hard chromium plating, which is wear-resistant, anti-deformation and long in service life. It ensures that the arc, angle, hole position and size of each louver panel are completely consistent, with low product error and high flatness. The finished products have standardized assembly size, no burrs on the edge, and beautiful overall appearance, fully meeting the high-standard decoration requirements of modern buildings.
3. Wide Material & Specification Compatibility
This louver forming machine supports the processing of various metal materials with good plasticity, including color steel coil, galvanized steel coil, aluminum coil, stainless steel coil, etc. It can produce wall louver panels of different thicknesses, widths and louver spacings by simply adjusting the rollers and parameters. It can meet the diversified customization needs of different architectural decoration styles, such as ventilation louvers, decorative shutters, sunshade louvers and other different types of wall panel products, with strong equipment versatility.
4. Durable Structure & Low Maintenance Cost
The whole machine adopts heavy-duty steel plate welded frame, which has high rigidity, strong shock resistance and no deformation during long-term high-load operation. The transmission system adopts high-quality chain and gear transmission, with stable power output and low failure rate. All electrical components are well-known brand parts, with stable performance and long service life. The equipment is designed with a humanized structure, convenient for daily inspection, maintenance and parts replacement, effectively reducing later operation and maintenance costs.
5. Intelligent Automatic Control, Easy Operation

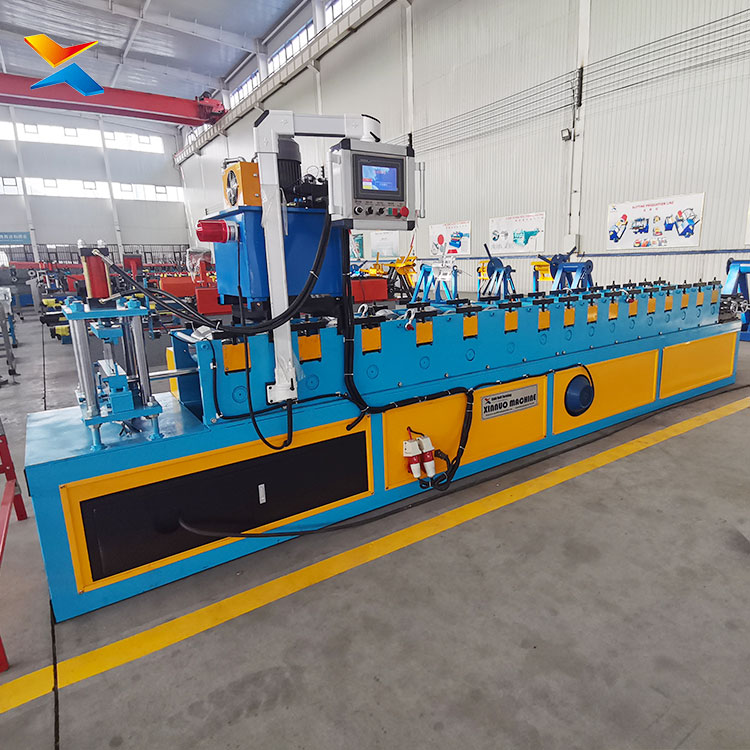

Adopting PLC intelligent touch screen control system, the operation interface is simple and intuitive. Workers can set parameters such as production length, quantity and forming speed freely. The equipment has automatic counting, fixed-length cutting, fault alarm and emergency stop functions, which realizes unmanned automatic production. It effectively reduces the technical threshold for operators and avoids product waste caused by human operation errors.
Application Scope

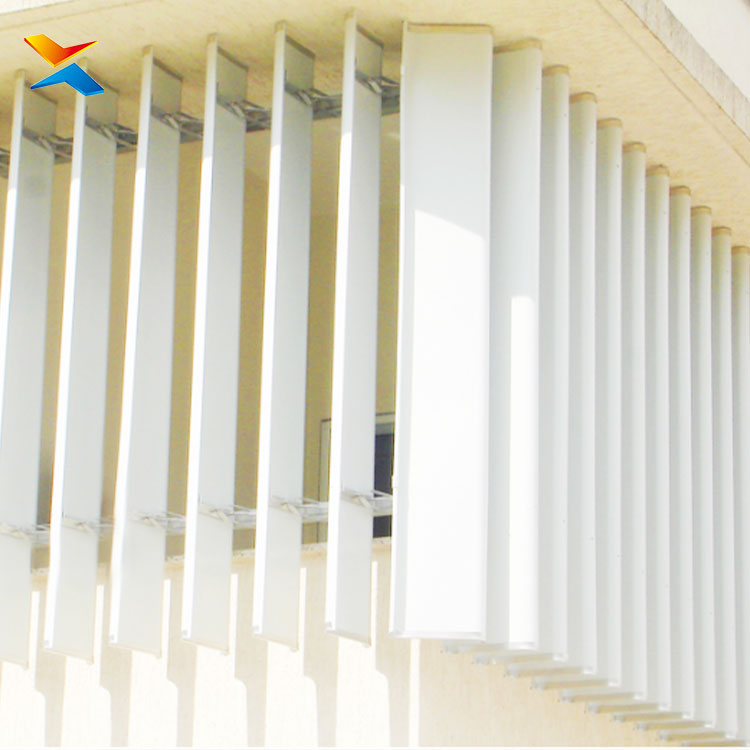

The finished wall louver panels produced by this equipment are widely used in various architectural decoration fields: exterior wall sunshade and ventilation decoration of high-rise buildings, shopping malls, hotels and office buildings; exterior wall heat insulation and noise reduction louver systems of industrial plants and villas; interior wall decorative louvers, partition louvers, ceiling ventilation louvers and other indoor decoration projects. The products are energy-saving, beautiful, durable, and have excellent ventilation, heat dissipation and shading performance, which is in line with the modern green building decoration concept.
Technical Highlights
- Full automatic production: Realize automatic feeding, forming, punching and cutting, save 80% labor cost
- High forming precision: Size error controlled within ±0.5mm, product consistency rate up to 99%
- Customized production: Support non-standard louver panel size and shape customization
- Stable operation: Low noise, low failure rate, 24-hour continuous work support
- Energy saving and environmental protection: Low power consumption, no waste material, high material utilization rate
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
