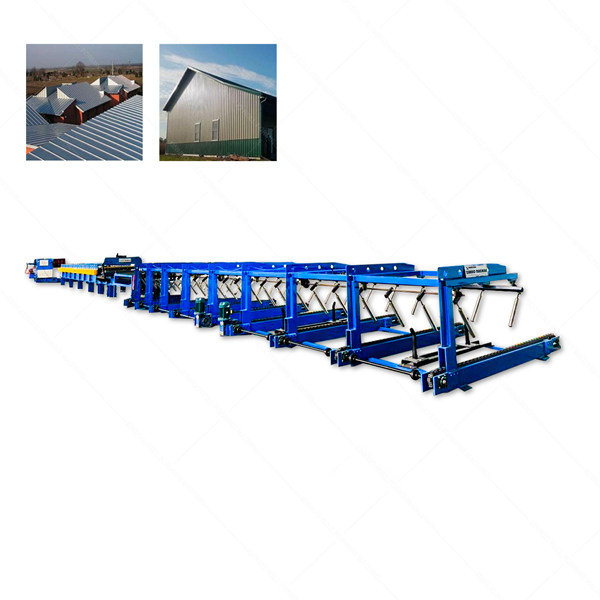

1000 High-Speed Roofing Sheet Roll Forming Machine Line

1000 High-Speed Roofing Sheet Roll Forming Machine Line Launches, Setting New Standards in Efficiency and Precision

Botou, 25.7.24—Xinnuo Roll Forming Machinery Co.,Ltd

Introduces the 1000 High-Speed Roofing Sheet Roll Forming Machine Line, engineered for high-volume manufacturing of precision roof tiles. Combining robust construction with advanced automation, this system delivers exceptional performance for global roofing material producers.

Technical Specifications & Features:

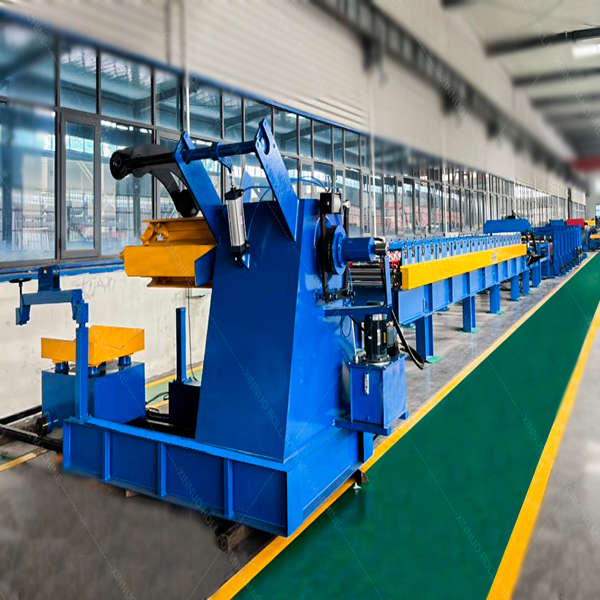

1. Material Handling:
   • Feeding width: 1220mm
   • Raw material thickness: 0.3–0.8mm (standard range: 0.3–0.7mm)
2. Control System:
   • Trilingual interface (Chinese, English, Arabic) with remote monitoring/control
   • Delta PLC control cabinet with inverter
   • Premium electronics (Chint, Schneider)
   • Omron production counter
3. Forming System:
   • 22-row forming (custom configurations available)
   • 80mm diameter shafts
   • Bearing steel forming wheels with thick-walled casings
   • Speed: 30 meters/minute
4. Structural Design:
   • Main frame: H350 steel with 16mm thick vertical plate
   •  6 point double-chain transmission
5. Power Unit:
   • 7.5kW main motor + 5.5kW air-cooled hydraulic station
   • Reinforced oil tank
6. Cutting System:
   • Guide-column type electric guillotine
   • Tracking servo shearing
   • High-end feeding platform with manual front cutting
   • Includes two (2) shear molds

Operational Advantages:

• Precision Engineering: Servo-driven tracking shear ensures ±0.5mm cutting accuracy.
• Durability: Heavy-gauge steel frame and bearing-grade components withstand continuous operation.
• Adaptability: Customizable forming rows accommodate diverse tile profiles.
• Global Compliance: Multilingual controls simplify international deployment.

“The 1000 Series redefines roof tile manufacturing efficiency,” stated Bessy. “Its integration of servo technology, structural resilience, and intelligent controls delivers unmatched ROI through reduced waste and maximized uptime.”

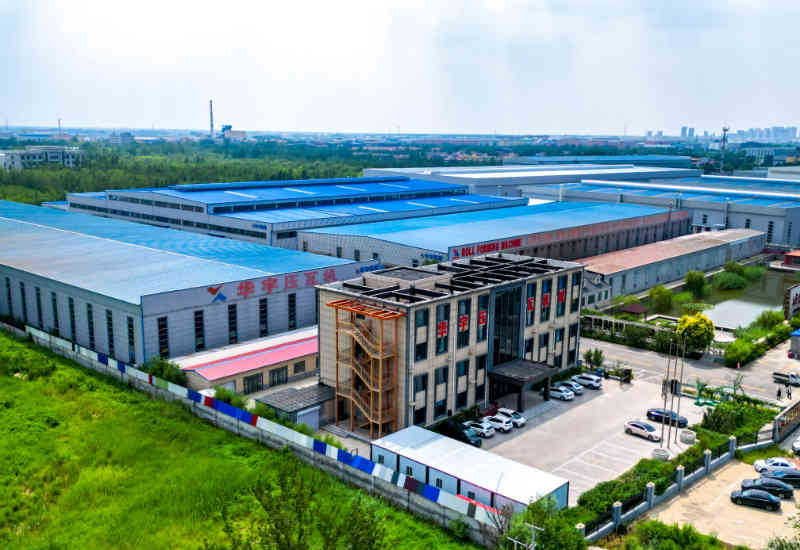

About Hebei Xinnuo Roll Forming Machinery Co.,Ltd

Hebei Xinnuo Roll Forming Machinery Co.,Ltd  specializes in advanced construction machinery for global markets, with installations across 127 countries. Our solutions prioritize operational efficiency, durability, and smart automation.
