Product Overview

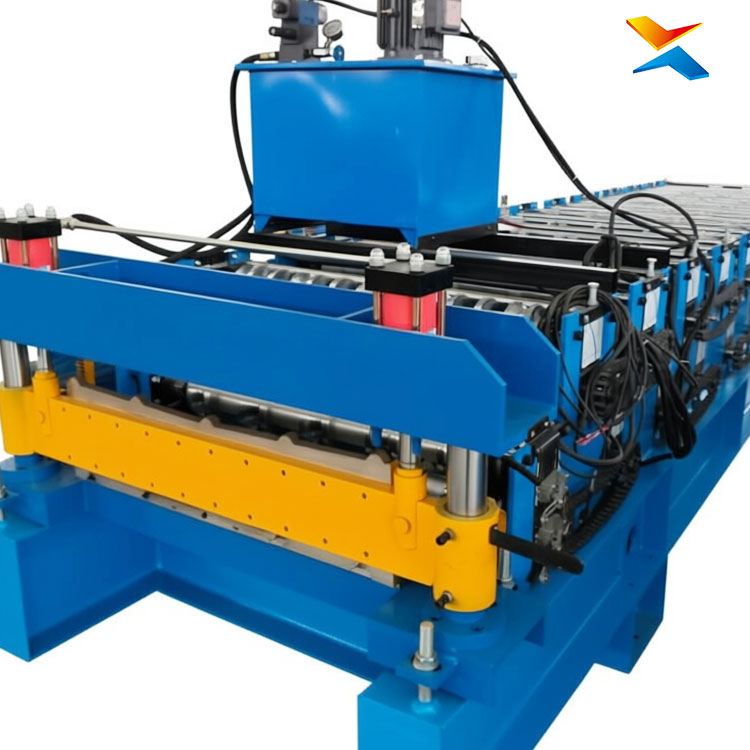

The Portable Trapezoidal Roof Sheet Machine is a highly compact and mobile roll forming system specifically engineered for on-site metal panel manufacturing. Designed to overcome the logistical challenges of transporting oversized roofing sheets, this innovative equipment brings the factory directly to the construction site. It efficiently transforms PPGI and GI steel coils into precise, continuous-length trapezoidal roofing panels exactly where they are needed. Featuring a lightweight yet robust design, rapid setup capabilities, and intuitive PLC automation, this on-site roll forming equipment is the ultimate strategic solution for contractors and fabricators working on remote locations, high-rise buildings, and large-span industrial projects.
- True Portability & Rapid Deployment: Engineered for maximum mobility, the machine features a compact footprint and is often equipped with heavy-duty wheels or a trailer-mounted chassis. This allows for effortless transportation to remote or restricted-access construction sites. The quick-setup design enables operators to begin production within minutes of arrival, significantly reducing project lead times.
- Custom Continuous-Length Production: The most significant advantage of on-site roll forming is the ability to produce panels in exact, continuous lengths (often exceeding 30 meters) without the need for lap joints. This eliminates potential leak points, reduces material waste, and drastically cuts down on installation labor and sealing costs.

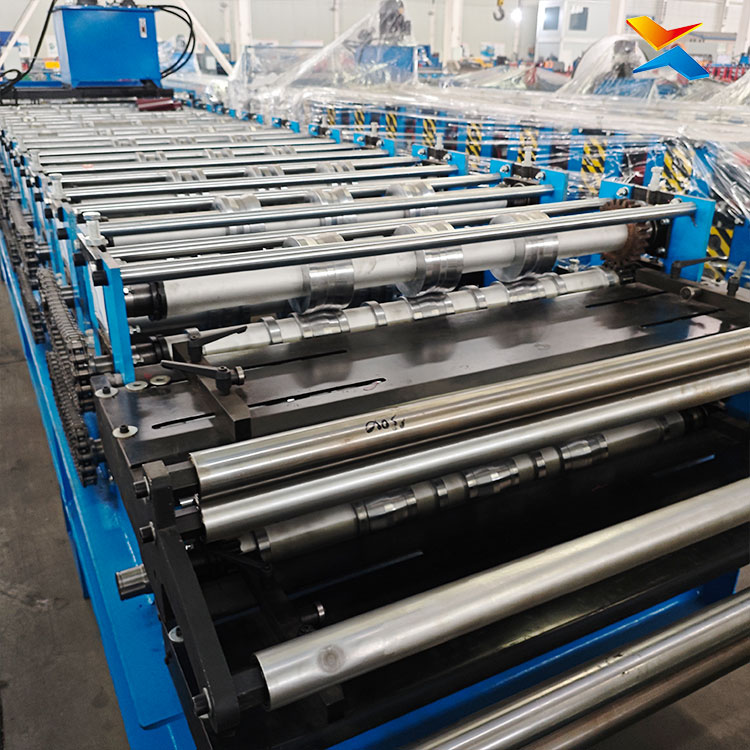

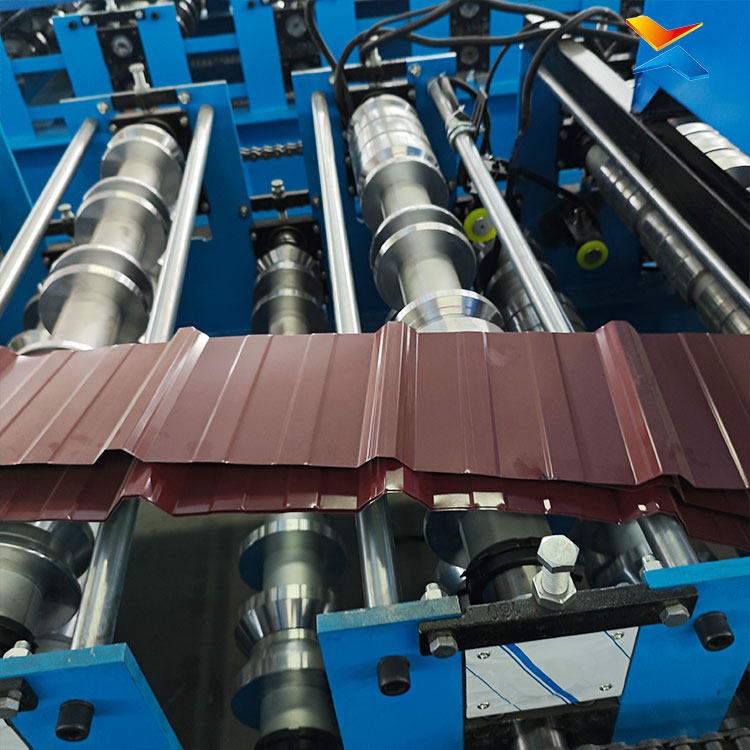

- Precision Trapezoidal Forming On-Site: Despite its portable size, the machine does not compromise on structural integrity. It features meticulously calibrated forming rollers that guarantee crisp, uniform trapezoidal ribs, exact interlocking tolerances, and superior water-shedding performance, ensuring the on-site panels match factory-grade quality.
- Intelligent PLC Automation: Governed by an advanced, user-friendly PLC control system, the machine automates the feeding, forming, and cutting processes. Operators can easily input the exact roof dimensions, and the system will produce panels to precise specifications, minimizing human error and material waste.
- High-Speed Automatic Cutting: Equipped with a reliable automatic cutting mechanism (hydraulic or precision mechanical), the machine executes clean, burr-free cuts at exact lengths. This ensures that every panel is perfectly tailored to the specific measurements of the building’s roof.

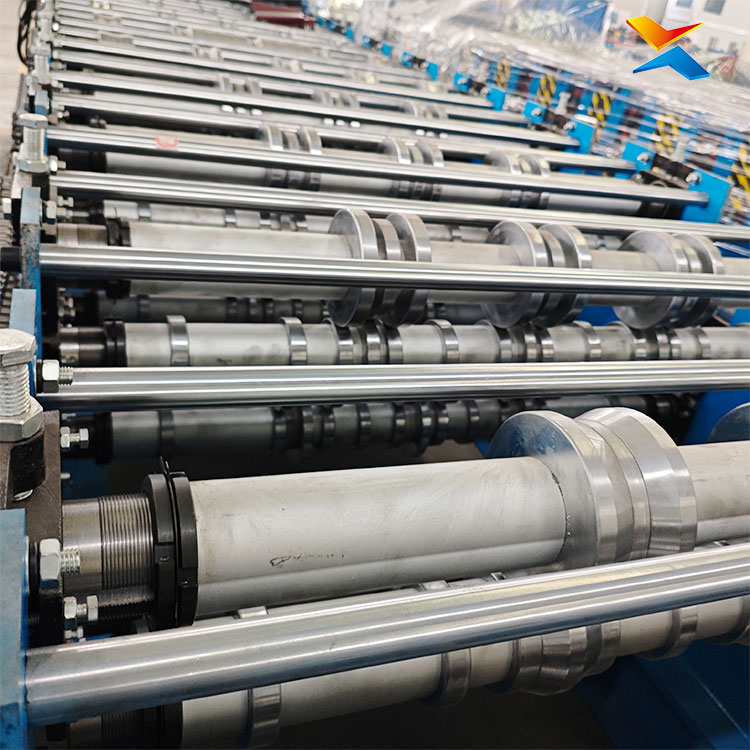

- Surface Protection & Material Versatility: The smooth, hard-chromed rollers and precision guide systems are designed to protect the sensitive color-coated (PPGI) and galvanized (GI) surfaces from scratching during the forming process. It reliably handles standard construction steel thicknesses, ensuring the final panels maintain their corrosion resistance and aesthetic appeal.
The continuous, custom-length trapezoidal panels produced by this portable machine are essential for overcoming logistical constraints in various construction scenarios, including:
- Remote & Off-Grid Construction: Manufacturing roofing on-site for agricultural facilities, mining camps, and rural infrastructure where transporting long panels is impossible or prohibitively expensive.
- High-Rise & Commercial Buildings: Producing exact-length panels at ground level for skyscrapers and large commercial complexes, eliminating the need for specialized long-bed trucks and crane lifting of oversized sheets.
- Large-Span Industrial Warehouses: Supplying continuous, leak-proof roofing for massive factories and logistics centers, ensuring superior weather protection without end-laps.
- Emergency & Rapid-Deployment Housing: Quickly producing custom-sized roofing for disaster relief shelters, military bases, and temporary modular structures.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
