rain gutter making machine for sheet metal profiles gutter machines for sale

Short Description:


Product Detail

configuration

COMPANY PROFILE:

what is metal roll forming?

Product Tags

gutter cold rolling machine drywall profile machine metal roofing machines for saleSteel panel downpipe roll forming machine / colored steel down spout down-pipe making machine

Product Description
Technical Parameters (depending on specific requirements of users)

Suitable steel plate



Type Color steel plate
Thickness  0.3-1.0mm
Feeding width  As users needs
Effective width  As users needs
Production speed  8-12m/min
Roller stand  12 rows
Roller Diameter  52mm
Main power  4kw
Pump power  3kw
Side panel of machine  14mm
Roller material  Carbon 45# steel
Blade material  Cr12, quenched, Cr-plating size 0.05mm
Control system  Delta PLC control
Main structure of the machine  300mm H-Beam



Components



No. Item Unit Qty
1 Manual decoiler set 1
2 Main roll forming machine set 1
3 Main machine of composting set 1
4 PLC control box set 1
5 Supporter table set 1



Workflow

Decoiler–Roll Forming–PLC System–Hydraulic System–Cutting–Output Table

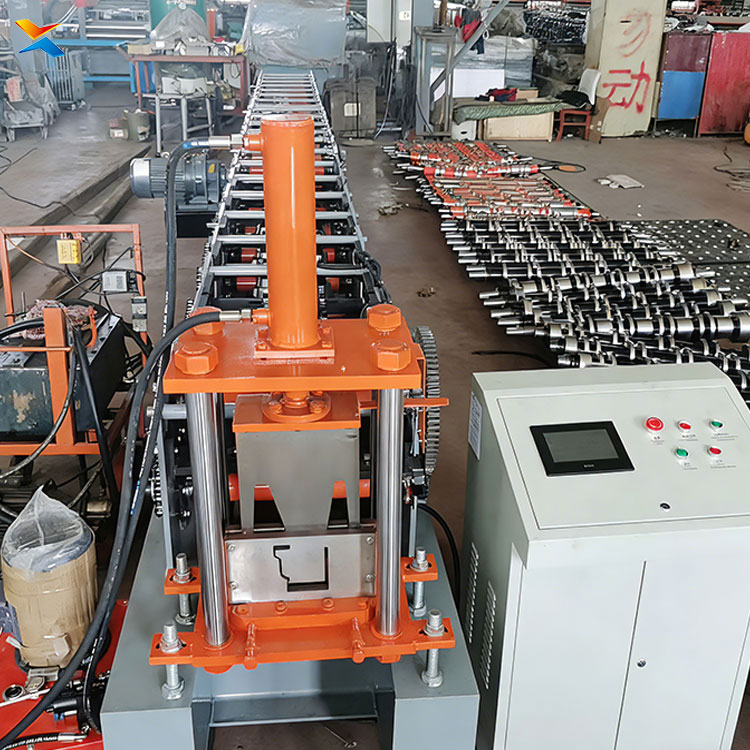

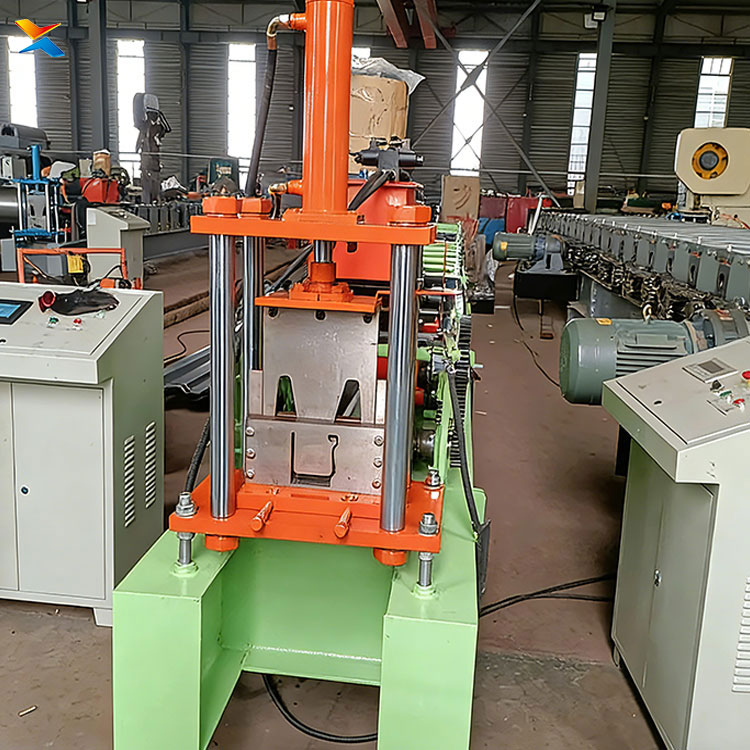

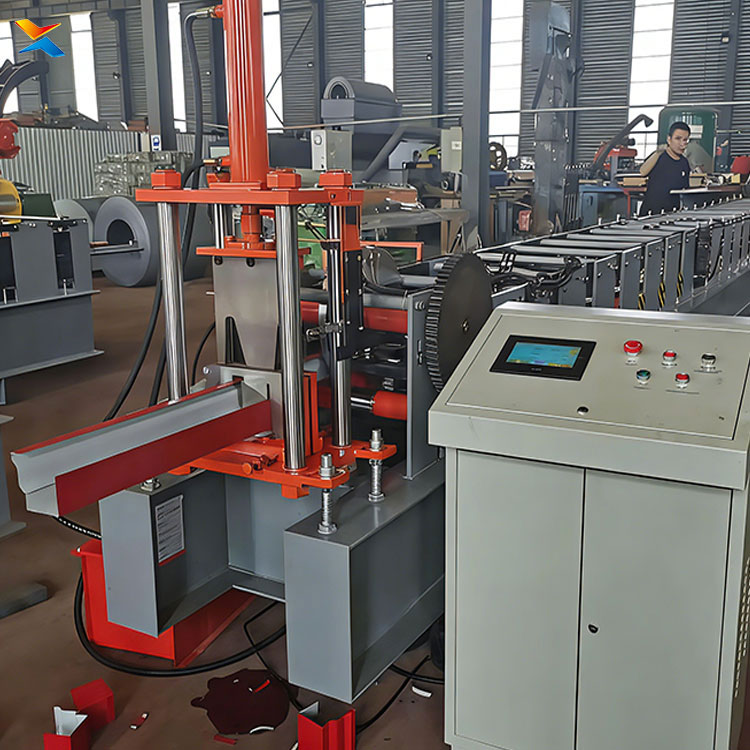

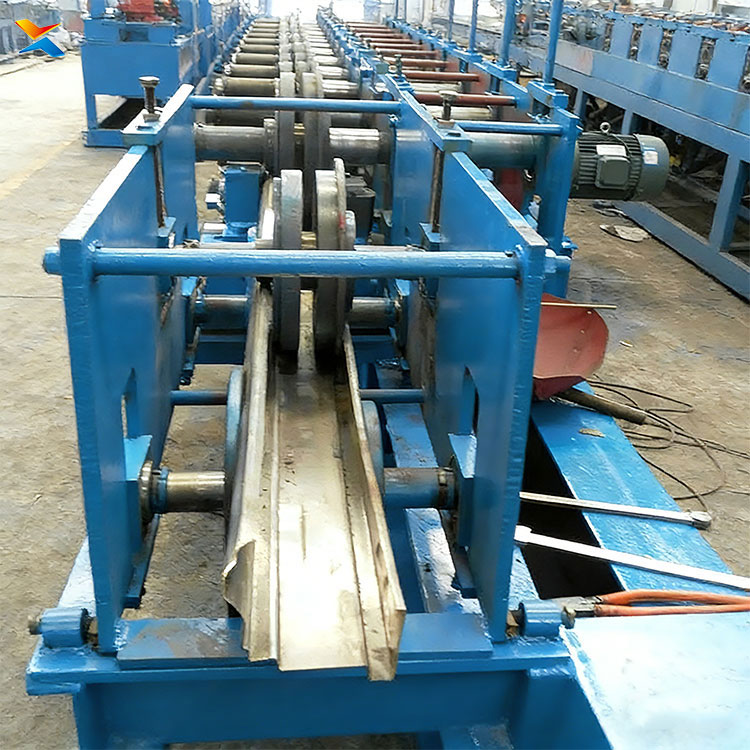

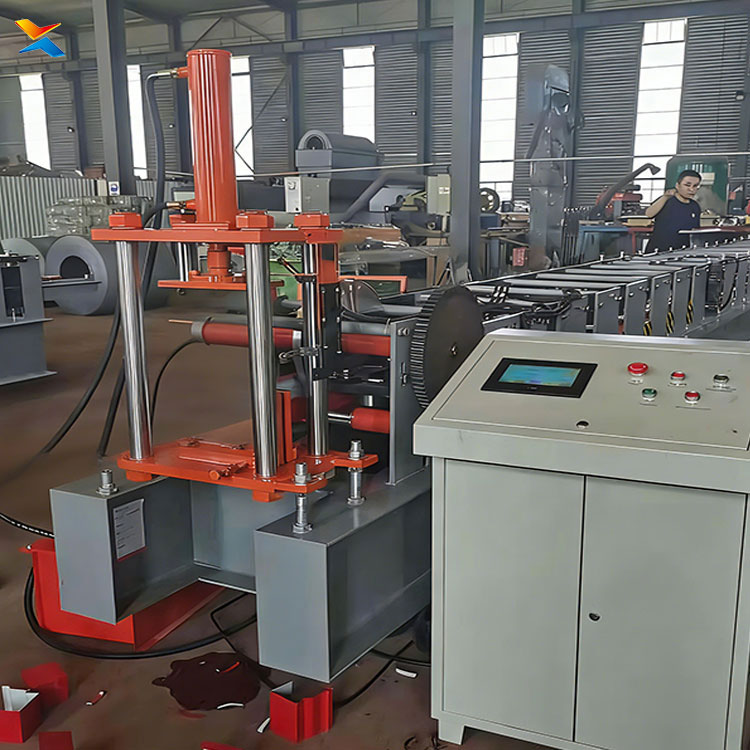

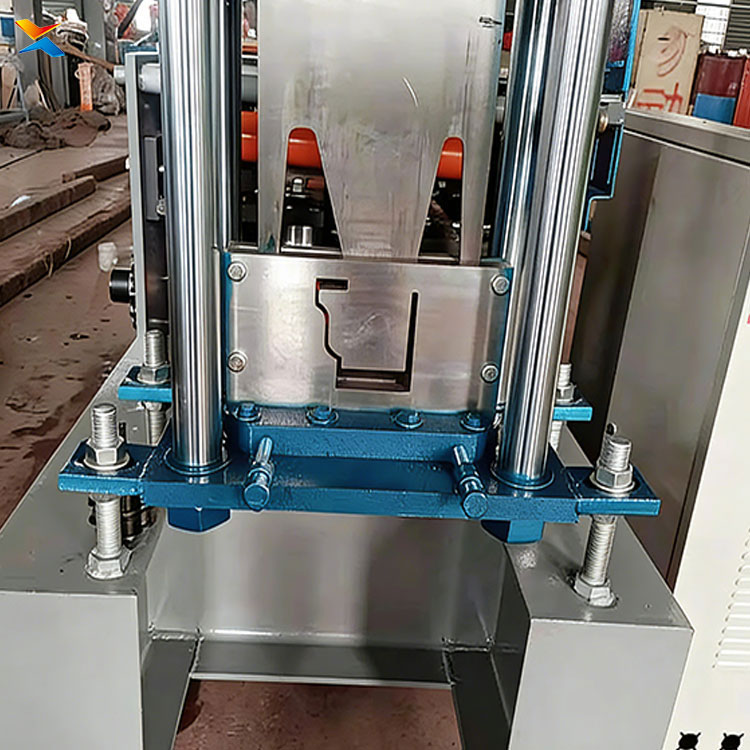

Product Pictures


Production Process

 Steel panel downpipe roll forming machine / colored steel down spout down-pipe making machine



Packaging & Shipping

 Steel panel downpipe roll forming machine / colored steel down spout down-pipe making machine



Packaging Details: Main machine is nude, the computer control box is packed with wooden frame.
Main machine is nude in the container, the computer control box ispacked with wooden packaging.
Delivery Detail: 20 days





Company Information

     Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc. Steel panel downpipe roll forming machine / colored steel down spout down-pipe making machine



FAQ



  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.

  •
