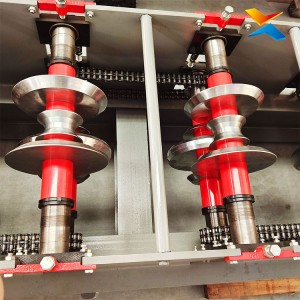

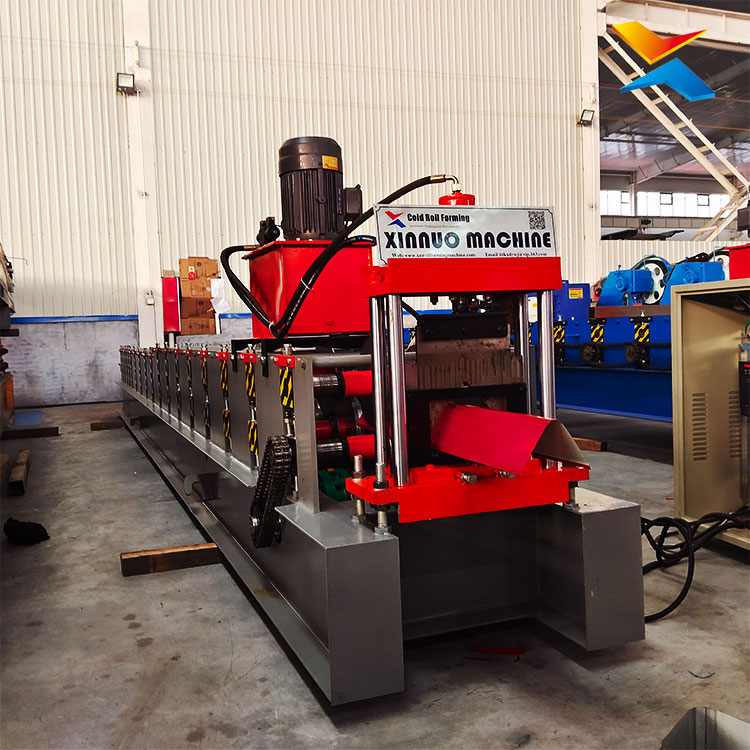

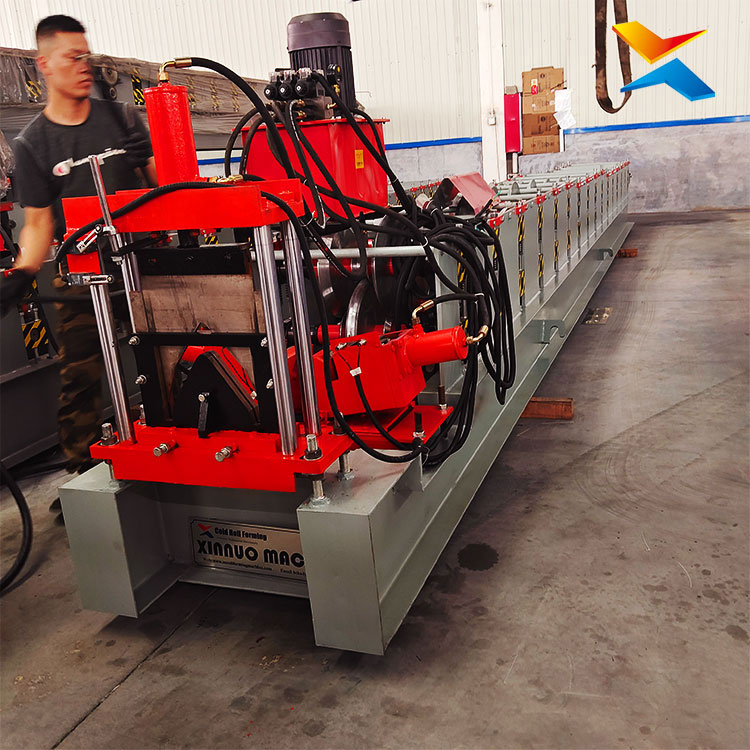

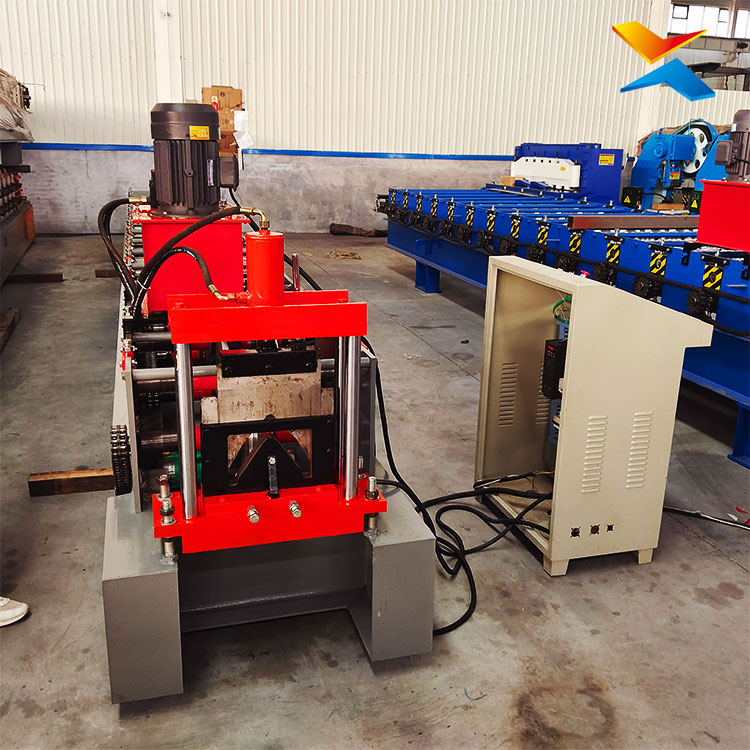

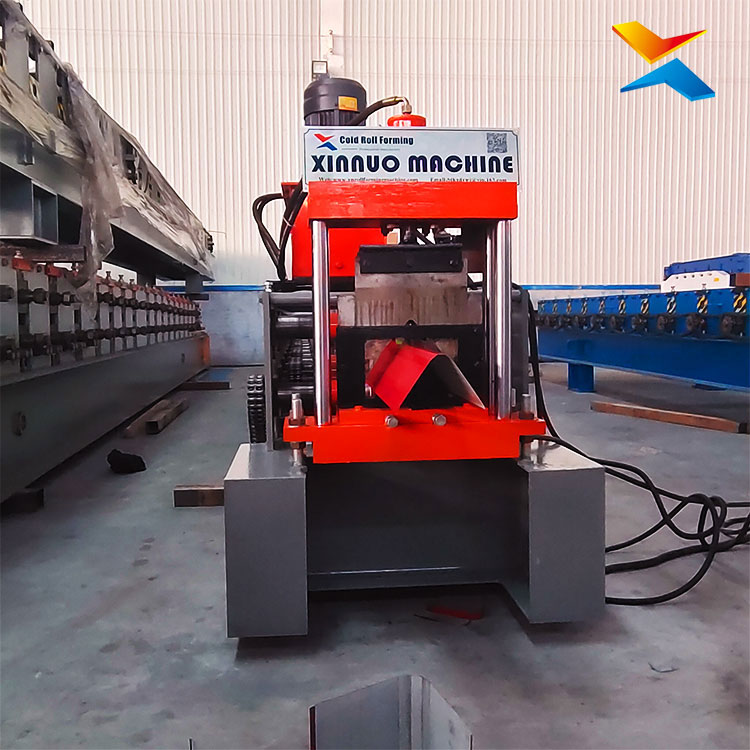

ridge cap roll forming machine

Short Description:


Product Detail

configuration

COMPANY PROFILE:

what is metal roll forming?

Product Tags

ridge  cap  roll  forming  machine

Technical parameters:
1 Name of commodity & specification Ridge tile roll forming machine
2 Main motor power 4kw, 3 phase
3 Hydraulic motor power 3kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 400mm H-Beam
8 Backboard Thickness 18mm
9 Chain Size 33mm
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-0.8mm
12 Feeding Width 600mm
13 Effective width 312mm
14 Productivity 4-8m/min
15 Roll Station 14

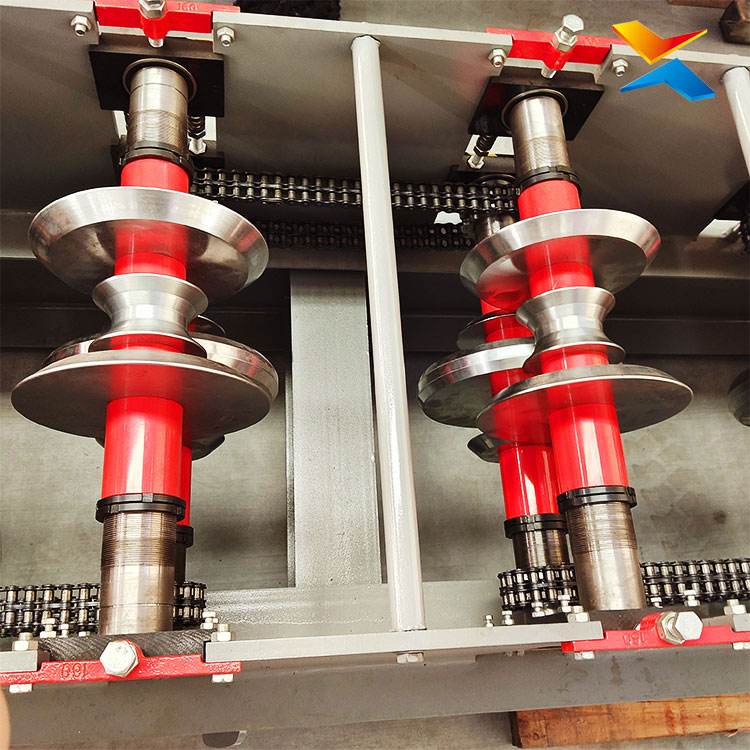

16 Roller Diameter 65mm
17  Roller material  45# steel
18  Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 7500×1000×1200mm
21 Total Weight 3.8T
22 Components                    Manual Uncoiler——————-1 set
    Guiding Platform——————1 set
    Coil Strip Leveler——————1 set
    Main Machine of Roll Forming——1 set
    Electric-Motor———————1 set
    Glazed Tile Pressing Device——–1 set
    Cutting Device——————–1 set
    Hydraulic Station——————1 set
    PLC Control———————–1 set
    Supporter Table——————-1 set
23 Workflow                        Manual decoiling—-feeding and guiding—-roll

   forming—-pressing—-cut to length—-run out table

24 Package nude in the container
25 Minimum order quantity 1 set




Company Information

 Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
     Our company locates in “The Town of Casting Molds”, enjoys convenient transportation, with No. 104 & 106 National Highway and Jinghu-Shihuang High-Speed Way nearby.

     Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on.

     Strong technical resources are the most stable guarantee for our products’ quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day!

     Our sales network covers all over China and all over the world.

       Our excellent and professional after-sales team will supply perfect services. We have a detailed manual book and can supply you with technical support via phone and network. If necessary, we can supply you with local technical support and send technicians to for installation and operation training.



  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.

  •
