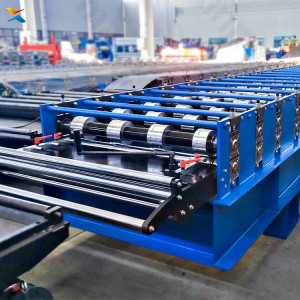

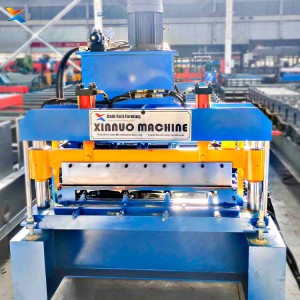

XINNUO Join-hidden drywall profile machine metal sheets roofing machine construction material making machinery

Short Description:


Product Detail

configuration

COMPANY PROFILE:

what is metal roll forming?

Product Tags

1 Suitable to process Color steel plate, galvanized sheet,aluminum coils and etc.
2 Width of the feeding material 1000mm
3 Roller station 22 rows
4 Thickness of feeding material 0.3-0.8mm
5 Productivity 8-12m/min
6 Rollers’ material 45# steel
7 Diameter of shaft 75mm
8 Voltage 380V 50Hz 3phases
9 Wall thickness of main forming machine 14mm steel plate
10 Main forming machine body 300 mm H steel
11 Motor power 7.5+4 kw
12 Size 7500*1500*1400mm
13 Weight About 5.8 T



♦ PROCESS DRAWING:

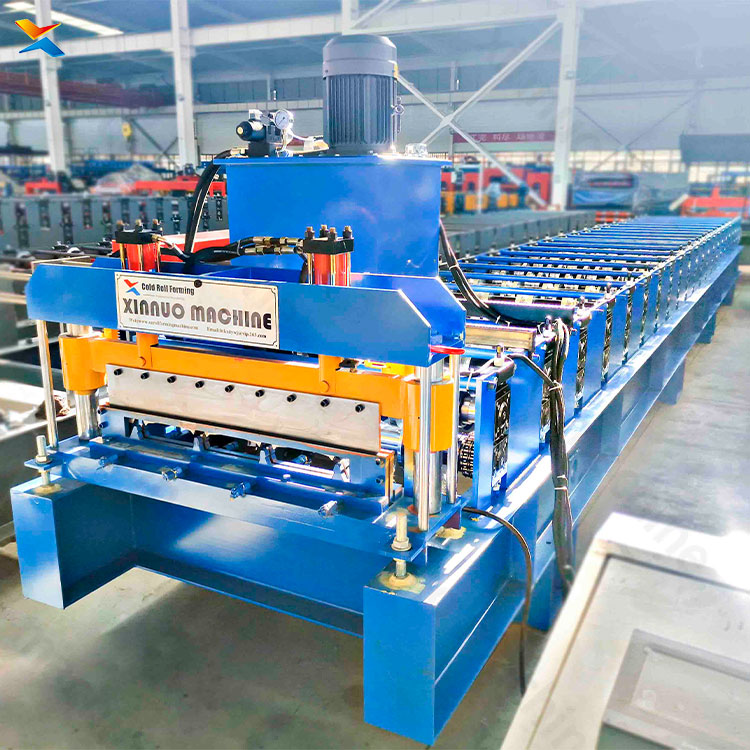

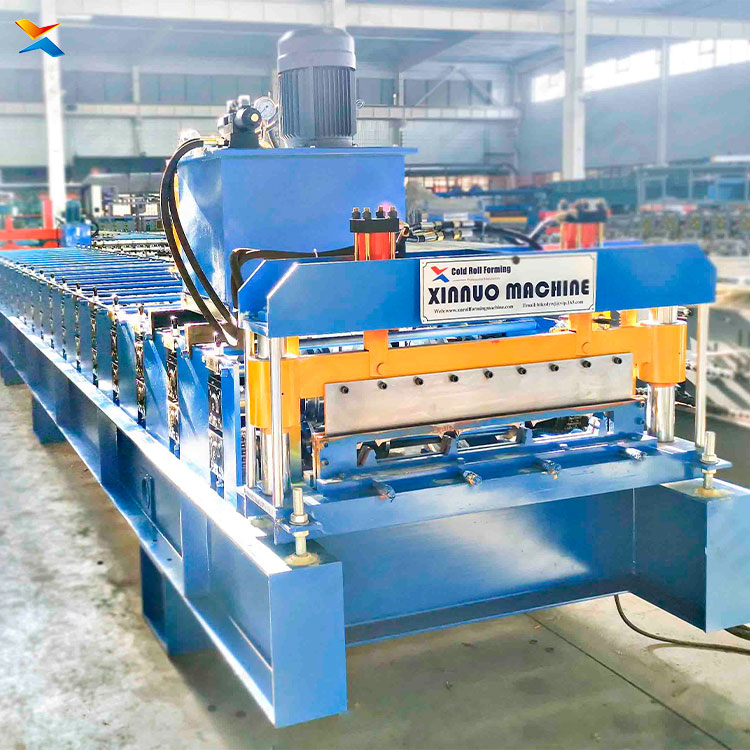

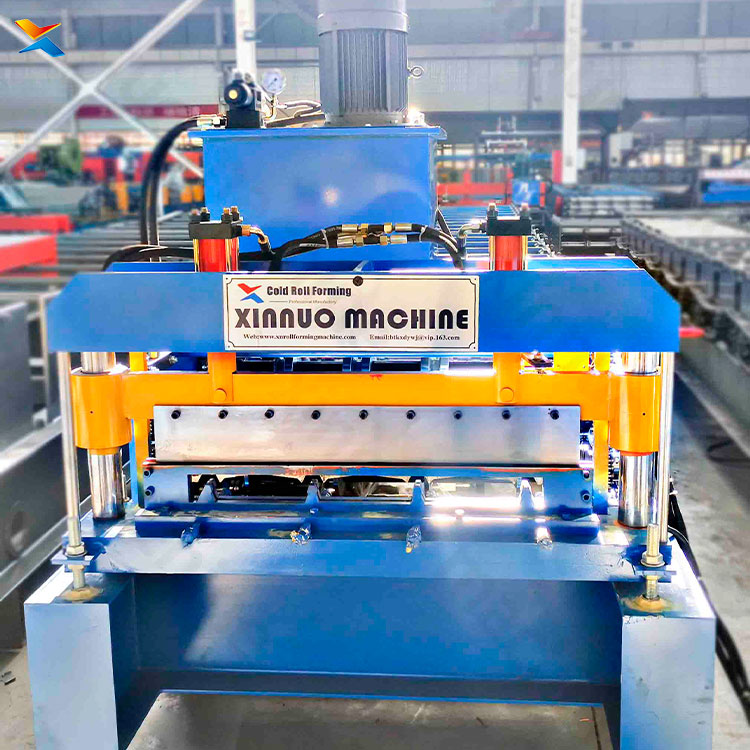

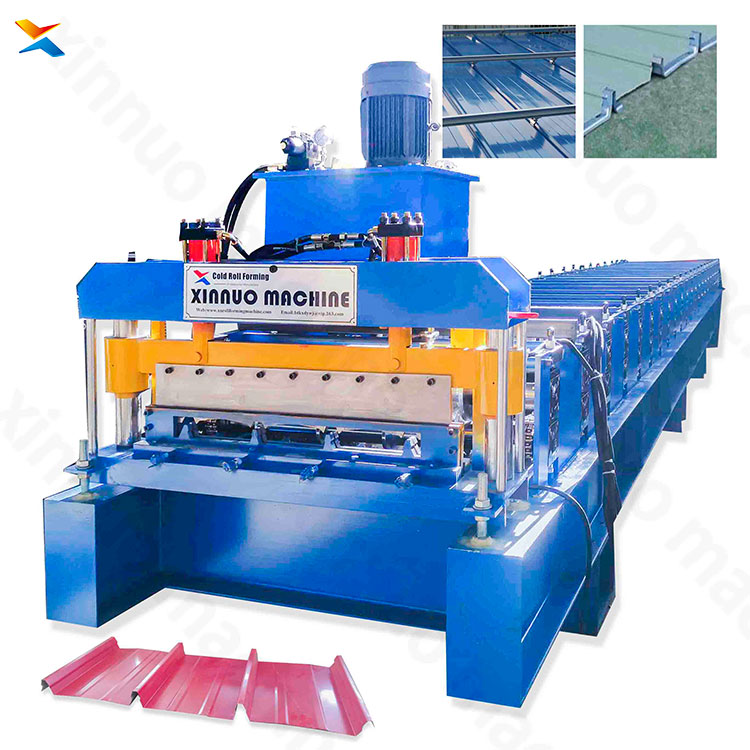

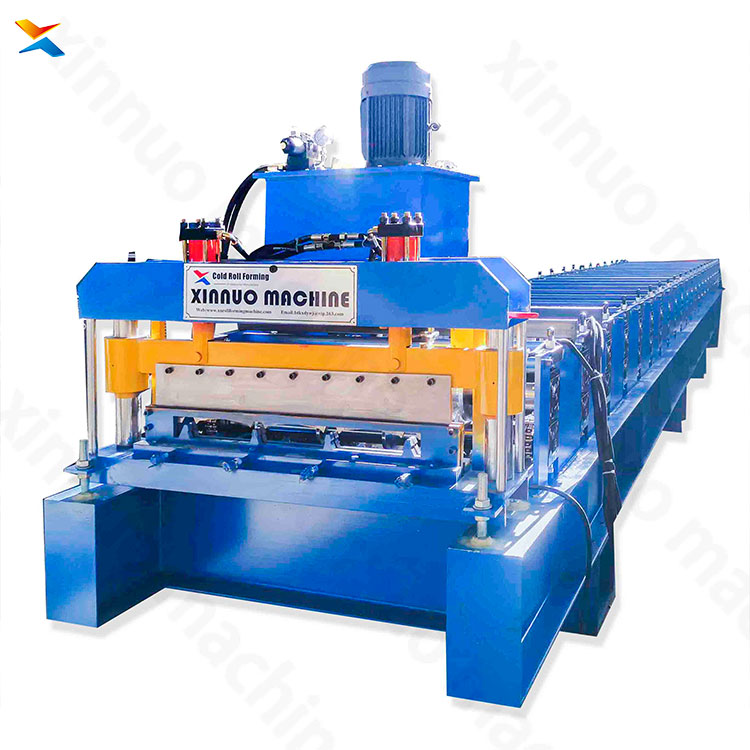

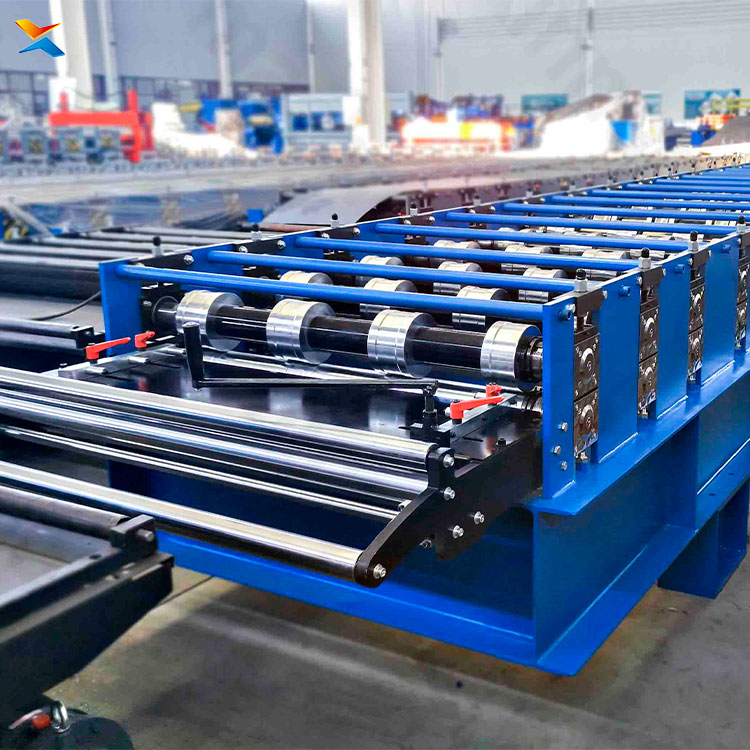

♦ MACHINE PICTURES:




♦ SPARE PART PICTURES:




Packaging & Shipping
Packaging Details: nude with simple plastic films in the container
Delivery Detail: 30 workdays after we receive the 30% advance payment
Our Services

♦ GUARANTEE:

12 MONTHS GUARANTEE. IF SOME PART OF THE MACHINE IS BROKEN.WE WILL SUPPLY THE BEST PART, BUT IF THE DAMAGED PARTS DUE TO OPERATE ERROR, BUYER WILL PAY FOR THE SHIPPING FEE.



♦ AFTER-SALE SERVICE:

WE SENT TECHNICIAN TO YOUR COUNTRY TO FIX THE MACHINE.THE BUYER SHOULD BEAR ALL THE COST INCLUDING:VISA,ROUNDTRIP TICKET AND SUITABLE ACCOMMODATION,ALSO BUYER SHOULD PAY THE SALARY 100USD/DAY.

.jpg

Company Information
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Click Here to check the company videoinitpintu11_.jpg
Certification

QQ20161203170746.jpg 2 -

FAQ

1:How to play order: Inquiry—confirm the profile drawings and price—-confirm the PI—arrange the deposit or L/C—then OK



2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),

then we can pick up you.



Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.



4:If you want to get more pictures or videos of the machines,Please feel free sent inquiry to me.






  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.

  •
