Product Overview

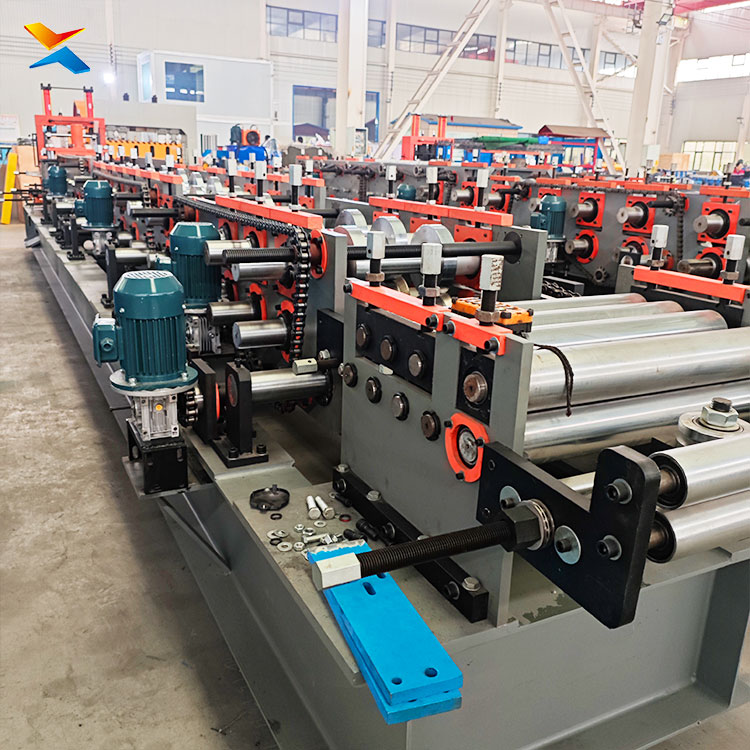

The Automatic Interchangeable C/Z Purlin Machine is a highly versatile and advanced cold roll forming equipment specifically designed for the steel structure industry. Combining the functions of both C and Z purlin production into a single, intelligent system, this machine features an interchangeable mold design that allows for seamless transitions between different profiles and multi-specification outputs. It is the ultimate solution for manufacturers seeking to maximize production flexibility while maintaining high structural standards.
- Interchangeable C & Z Molds: Engineered with a smart interchangeable mold system, this machine allows operators to easily switch between producing C channels and Z channels. This modular design eliminates the need for multiple dedicated machines, significantly optimizing factory space and reducing capital investment.

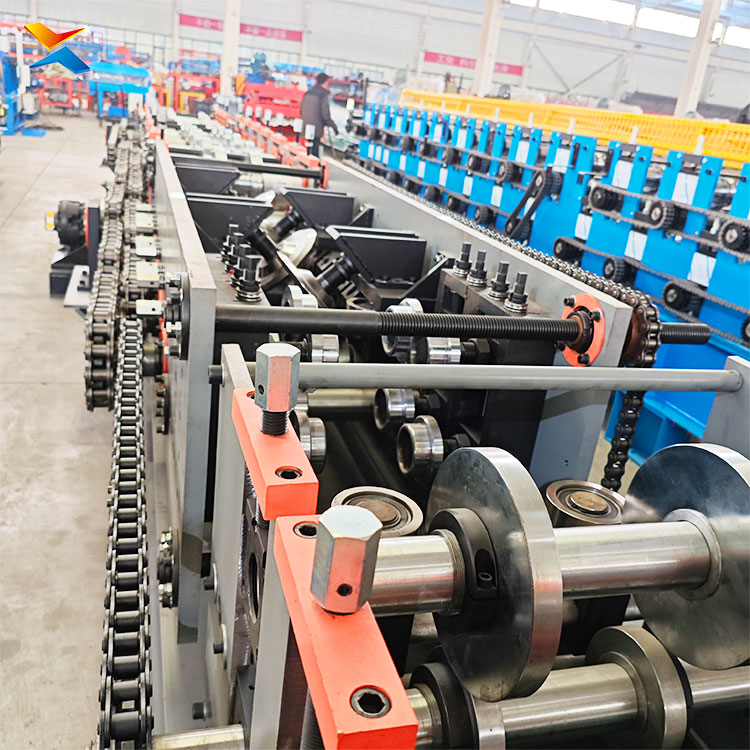

- Multi-Specification Cold Roll Forming: Utilizing advanced cold forming technology, the machine can produce a wide variety of profile specifications and dimensions. The precision-machined rollers ensure that each profile maintains exact geometric tolerances and superior surface quality, regardless of the specification being produced.

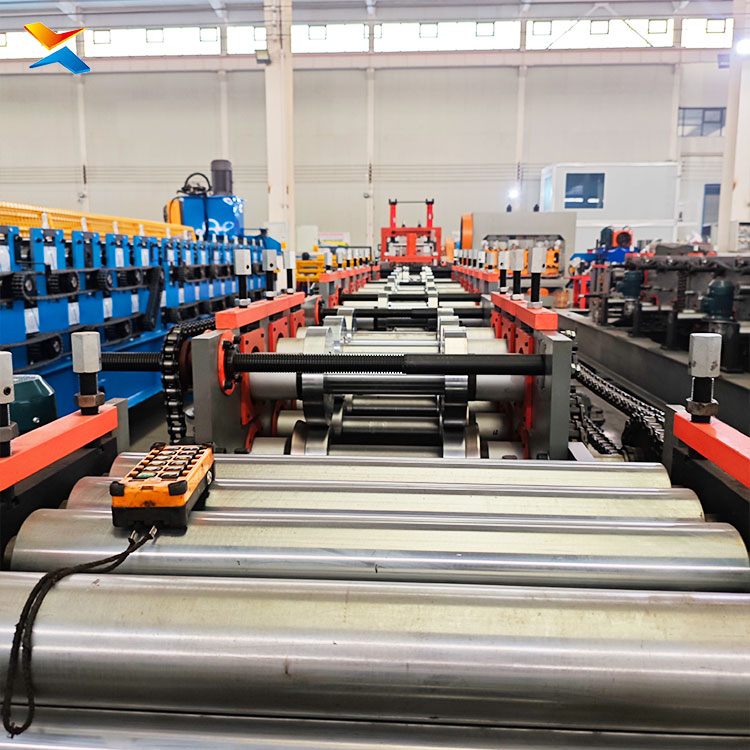

- Fully Automated Operation: The entire production line is driven by an intelligent PLC control system that synchronizes decoiling, leveling, punching, roll forming, and cutting. This high level of automation ensures consistent product quality, reduces manual labor, and minimizes operational errors.

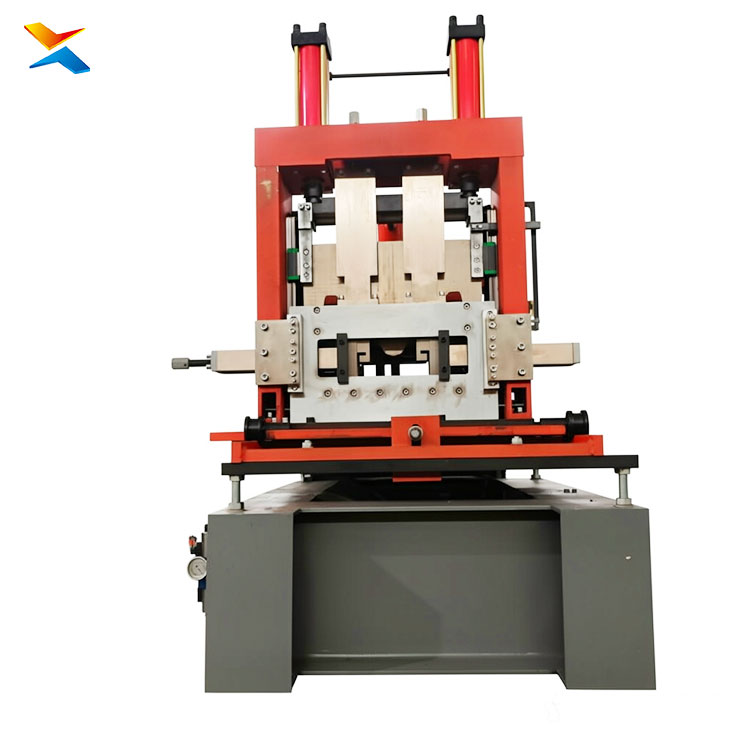

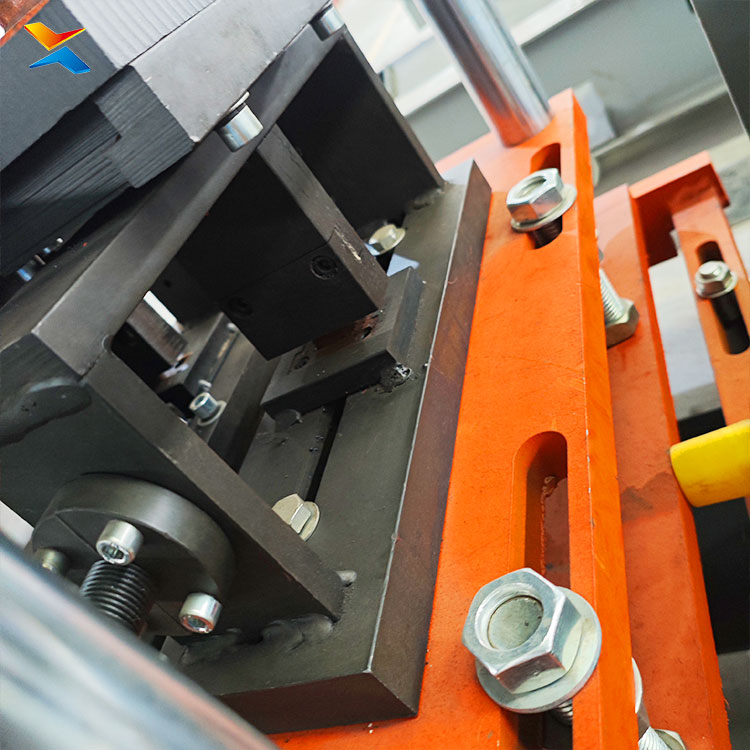

- Integrated Hydraulic Punching & Flying Cut: Equipped with a high-performance hydraulic punching unit, the machine can create various hole patterns essential for steel structure assembly. The flying cut-off system operates continuously without stopping the main line, delivering precise, burr-free cuts at high speeds.

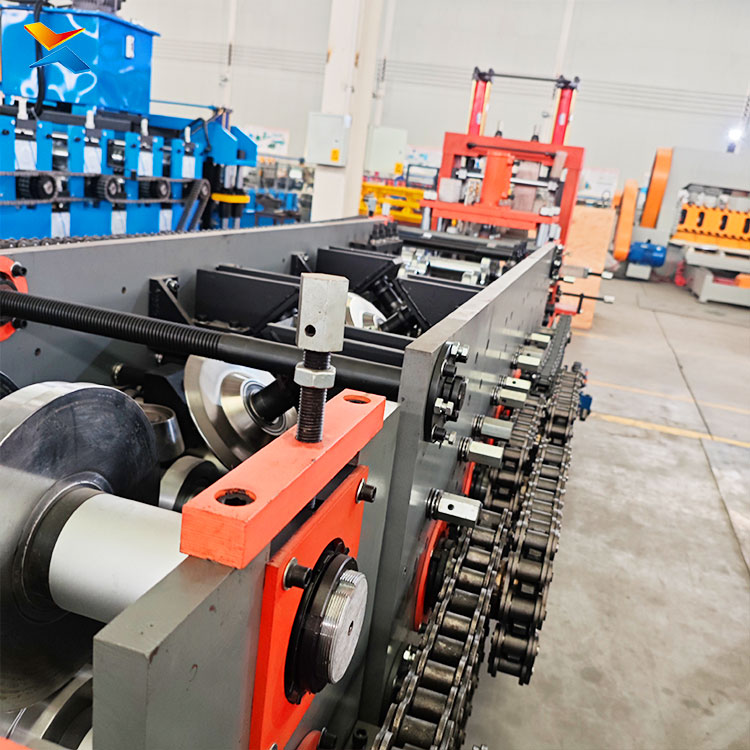

- Robust & Heavy-Duty Construction: The main frame is fabricated from high-strength steel and undergoes stress-relief treatment to guarantee exceptional rigidity. This solid foundation ensures stable, vibration-free operation during continuous multi-specification production runs.
- User-Friendly Interface: The intuitive touchscreen HMI allows operators to easily select between C or Z profiles, input specific dimensions, and monitor real-time production status. Recipe storage capabilities enable quick recall of previously used specifications for efficient batch processing.
The multi-specification C and Z purlins produced by this interchangeable machine are critical components in modern steel construction, including:
- Large-span industrial warehouses and manufacturing plants
- Commercial steel-framed buildings and shopping centers
- Prefabricated steel structures and modular construction
- Agricultural and rural steel framing systems
- Solar panel mounting structures and support frameworks
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
