Product Overview

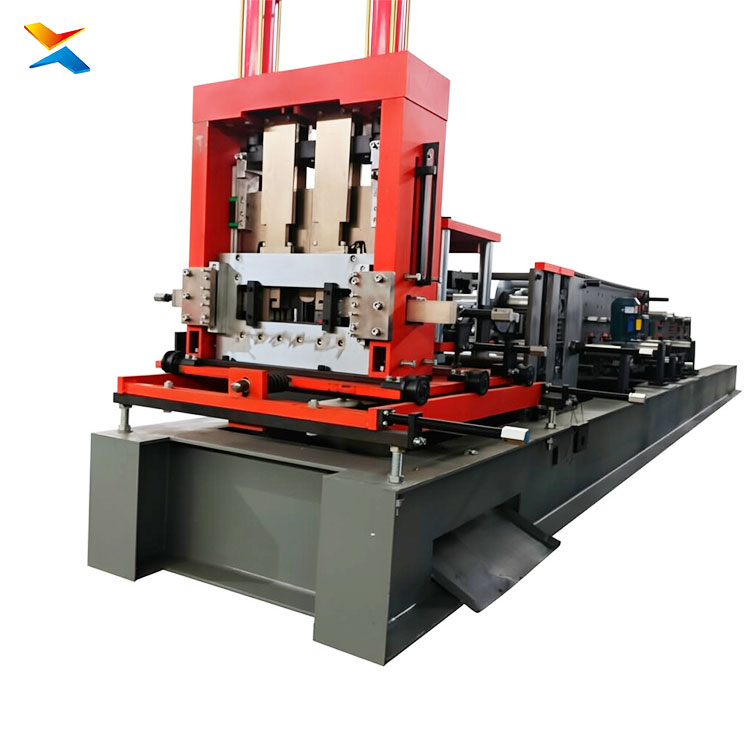

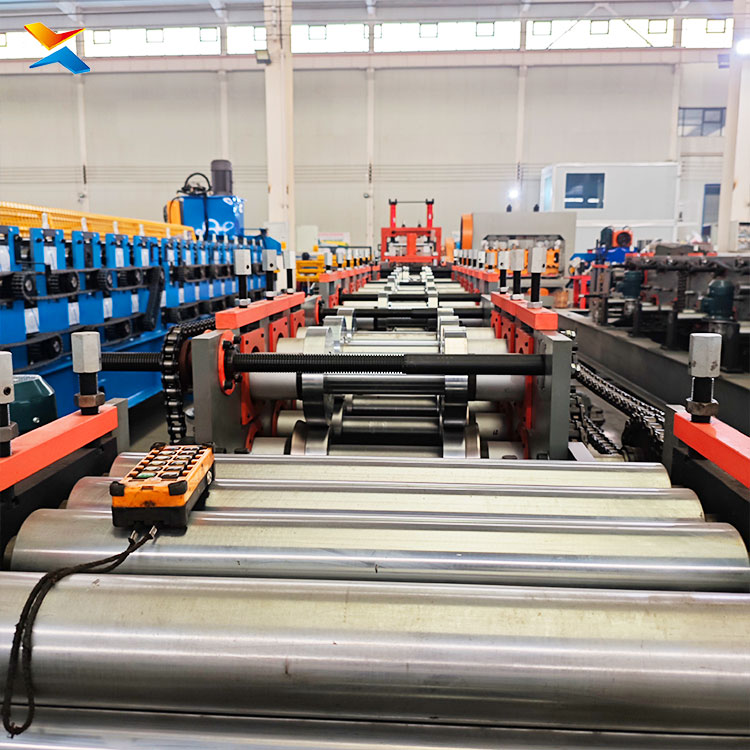

The 1-Second Quick Change CZ Purlin Roll Forming Machine is an ultra-efficient, next-generation manufacturing solution designed to revolutionize steel framing production. Featuring a revolutionary quick-change mechanism and infinitely adjustable forming system, this machine allows operators to seamlessly switch between C and Z purlins and adjust profile dimensions in mere seconds. It represents the pinnacle of flexibility and automation for modern steel construction material manufacturers.
- Ultra-Fast 1-Second Quick Change: Engineered with an advanced, automated mold-switching mechanism, this machine dramatically reduces downtime. The ability to change between C and Z profiles in just one second maximizes production time and allows for highly responsive, on-demand manufacturing.
- Infinitely Adjustable Dimensions: Say goodbye to fixed-size molds. The infinitely adjustable forming system allows for continuous, stepless modification of the purlin’s height, width, and flange sizes. This ultimate flexibility enables the production of custom profiles to meet highly specific architectural and engineering requirements without changing hardware.
- Dual C & Z Functionality: This versatile machine serves as a complete C and Z purlin production line in a single footprint. By combining two essential structural profiles into one highly adaptable system, manufacturers can significantly reduce capital expenditure and optimize factory floor space.
- Smart Automated Control: Driven by a state-of-the-art PLC and intuitive touchscreen HMI, the machine automatically synchronizes the quick-change mechanism, roll forming, punching, and cutting processes. Operators can input desired dimensions, and the system will automatically adjust to the new profile recipe instantly.

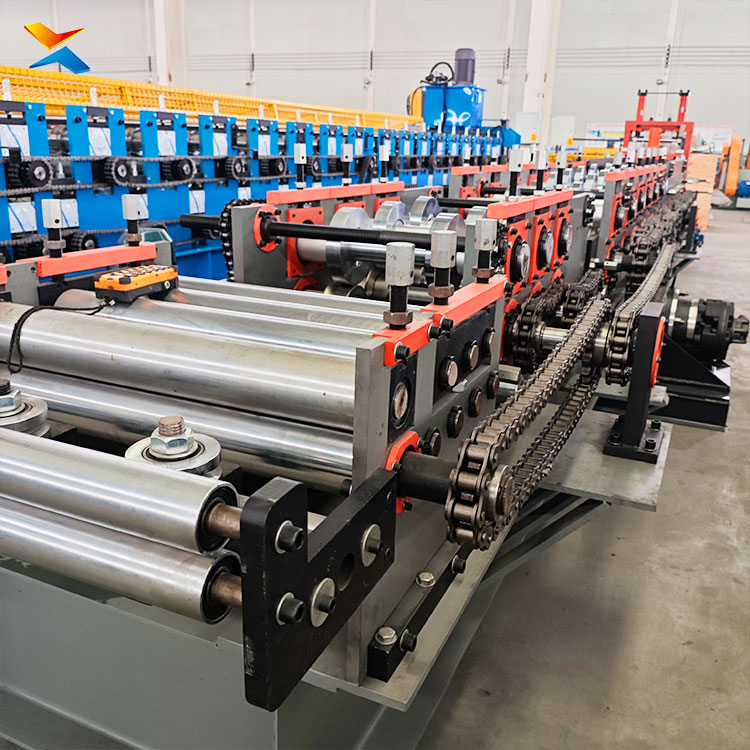

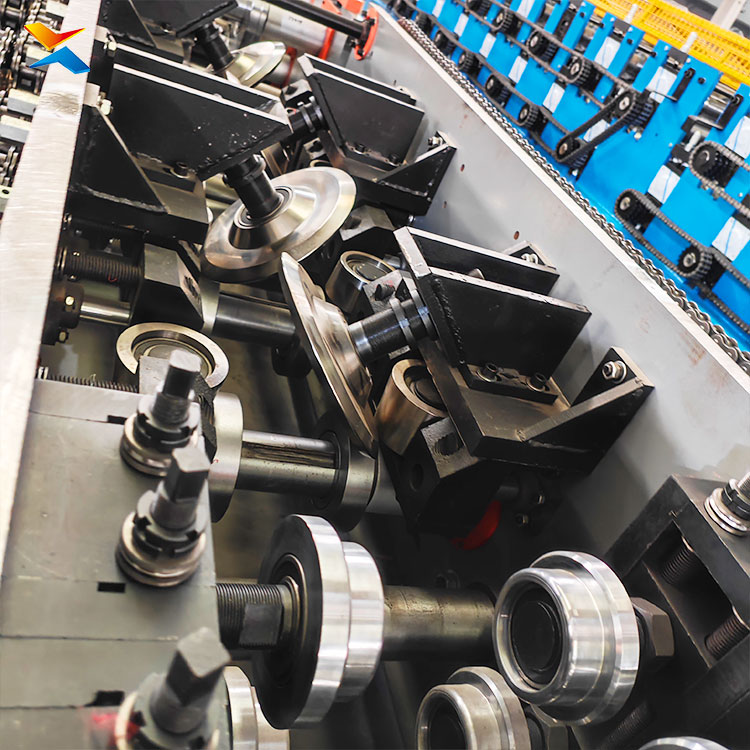

- Precision Roll Forming System: Despite its rapid adjustability, the machine maintains exceptional precision. High-grade, precision-machined rollers ensure smooth transitions, uniform thickness, and exact dimensional tolerances, guaranteeing top-tier structural integrity for both C and Z channels.

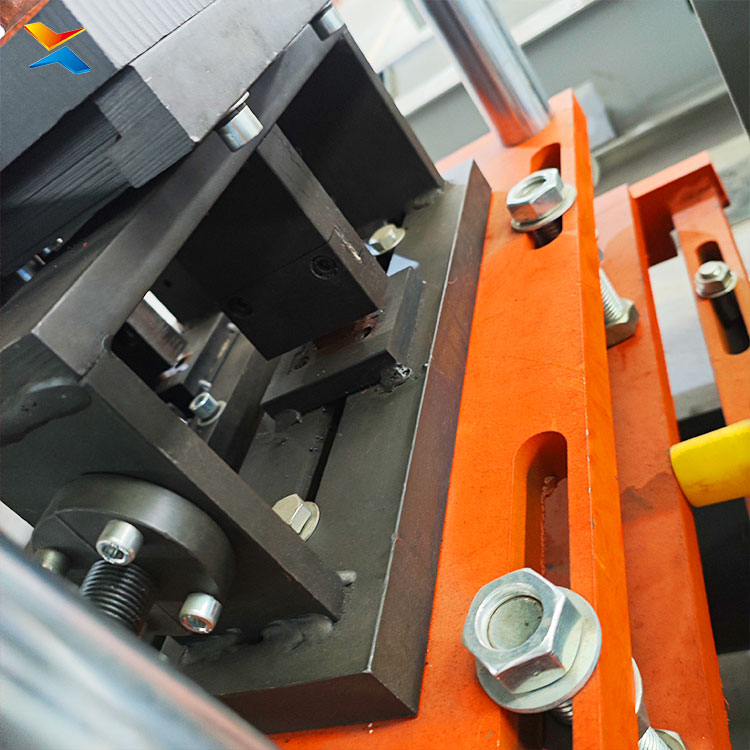

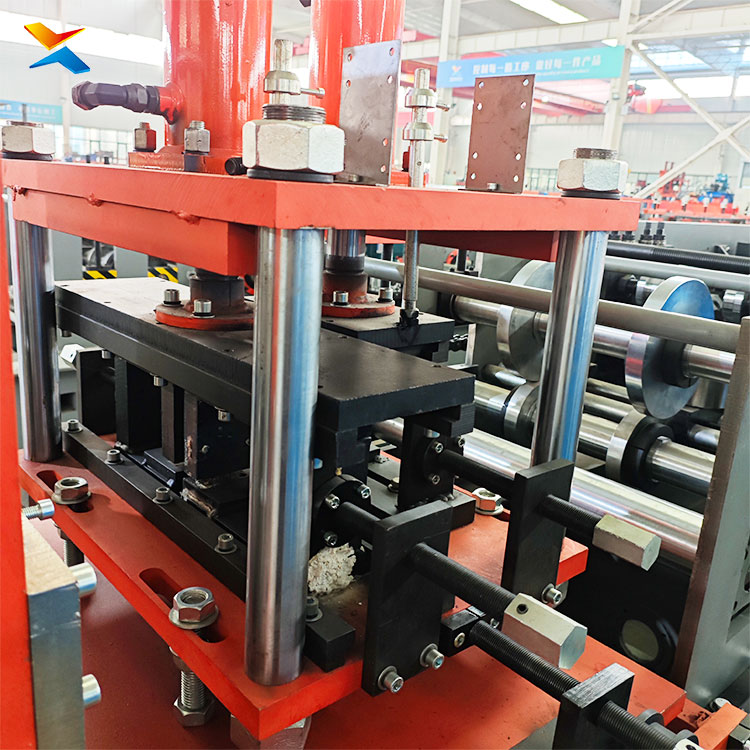

- Integrated High-Speed Processing: Features a seamless hydraulic punching unit and a flying cut-off system that operates flawlessly during rapid profile changes. This ensures continuous, high-speed production with clean, burr-free cuts and perfectly aligned holes.
The customizable C and Z purlins generated by this highly flexible machine are indispensable in modern construction, including:
- Prefabricated steel structures and modular building systems
- Industrial warehouses, factories, and large-span logistics centers
- Commercial and residential light steel framing
- Agricultural facilities and rural construction projects
- Solar energy mounting structures and customized support systems
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
