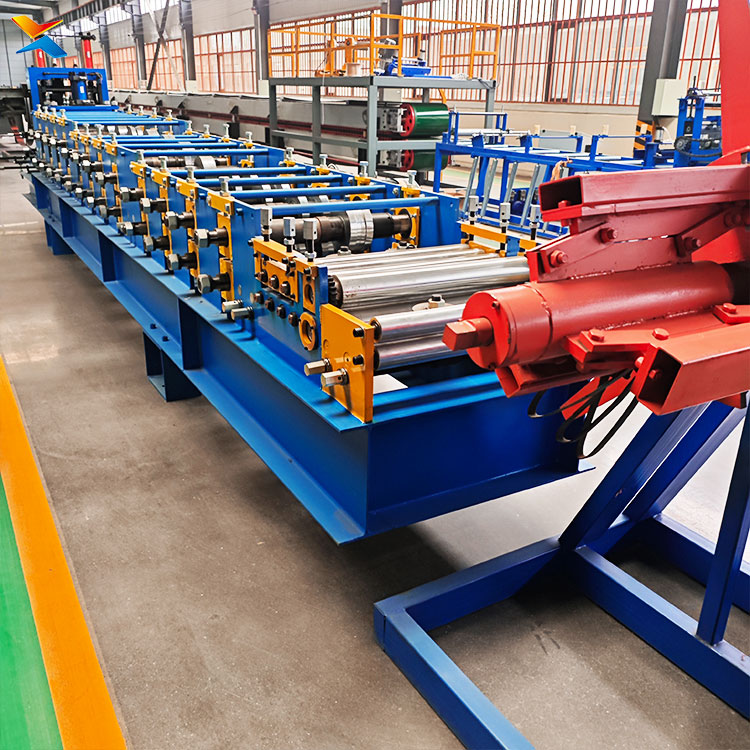

Frame C Section Machine Product Description
The Frame C Section Machine is a high-efficiency, precision-oriented roll forming equipment specifically designed for the continuous production of C-shaped steel sections used in frame structures. Widely applied in the steel structure, mechanical equipment, prefabricated building, and industrial frame industries, this machine integrates advanced mechanical design, automatic control, and stable operation, ensuring consistent product quality and high production efficiency for various frame C-section application scenarios.

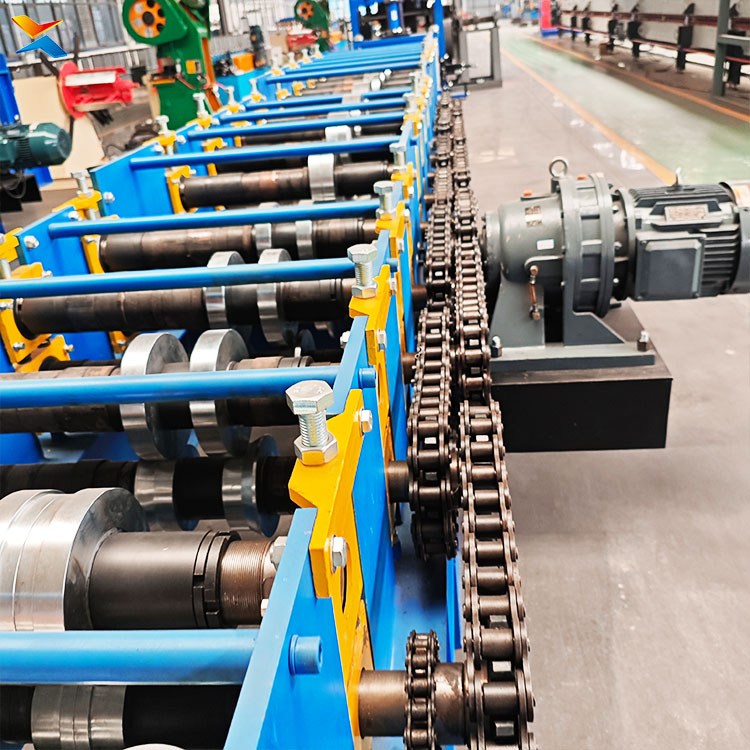

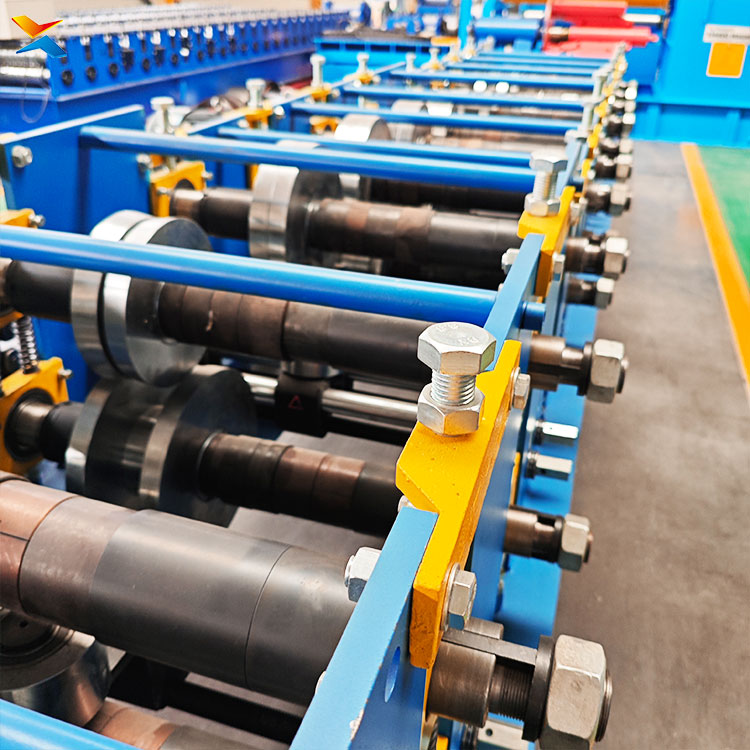

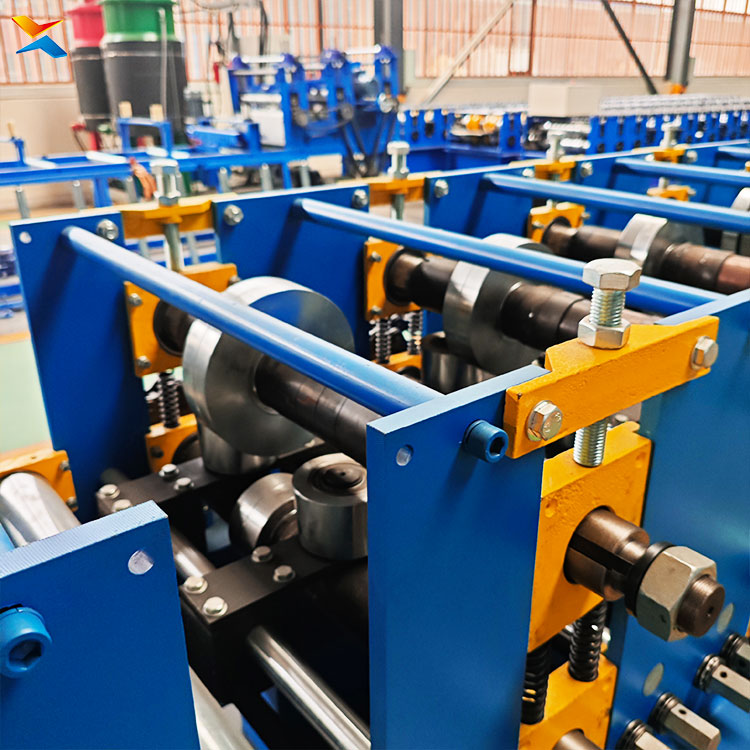

Equipped with a high-performance motor and precision gearbox, the Frame C Section Machine features smooth transmission, low noise, and strong load-bearing capacity, which effectively reduces energy consumption while improving production stability. The machine adopts a multi-station roll forming process, with each forming station scientifically designed and precisely adjusted to ensure that the frame C-sections have uniform cross-section, smooth surface, no deformation, and accurate dimensions—strictly complying with international and industry standards for frame steel components.
One of the core advantages of this machine is its excellent adjustability and versatility. It can be flexibly adjusted according to different specifications of frame C-sections (such as different widths, heights, and thicknesses), without the need for frequent replacement of molds, greatly reducing production preparation time and labor costs. The feeding system is equipped with a high-precision leveling device, which can effectively correct the flatness of the raw material (steel coil) and avoid defects caused by uneven raw materials, ensuring the consistency and reliability of the final frame C-section products.
In terms of operation, the Frame C Section Machine is equipped with an intelligent control system, featuring a user-friendly touch screen interface that allows operators to easily set parameters (such as forming speed, cutting length, and quantity), monitor the production process in real time, and quickly troubleshoot simple faults. The automatic cutting device adopts high-precision hydraulic or mechanical cutting, ensuring clean cutting edges, no burrs, and accurate length control—critical for the assembly accuracy of C-sections in various frame structures, including industrial frames, equipment frames, and prefabricated frame components.
Made of high-quality steel and wear-resistant components, the machine has excellent durability and long service life, reducing the frequency of maintenance and repair. It is also equipped with multiple safety protection devices (such as emergency stop buttons, protective covers, and overload protection) to ensure the safety of operators and the stable operation of the machine during long-term continuous production on frame component production lines.
The C-shaped steel sections produced by this machine are widely used as key components in frame structures, serving as vertical supports, horizontal beams, crossbars, and connecting parts in industrial frames, mechanical equipment frames, prefabricated building frames, and light steel structure frames. They have the characteristics of light weight, high strength, excellent load-bearing performance, and easy assembly, which can effectively reduce the overall weight of the frame, lower production and installation costs, and improve the structural stability, durability, and load-bearing capacity of the frame system.
Whether for large-scale mass production of standard frame C-sections or small-batch customized production according to specific frame design requirements, the Frame C Section Machine can meet the diverse needs of customers. We also provide customized solutions according to customer-specific requirements, including equipment modification, parameter adjustment, and after-sales technical support, to help customers improve production efficiency, reduce production costs, and achieve stable and efficient production of frame C-sections.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
