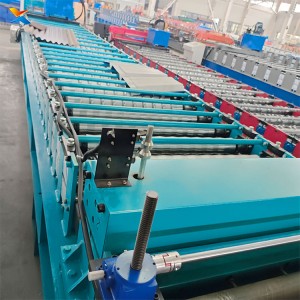

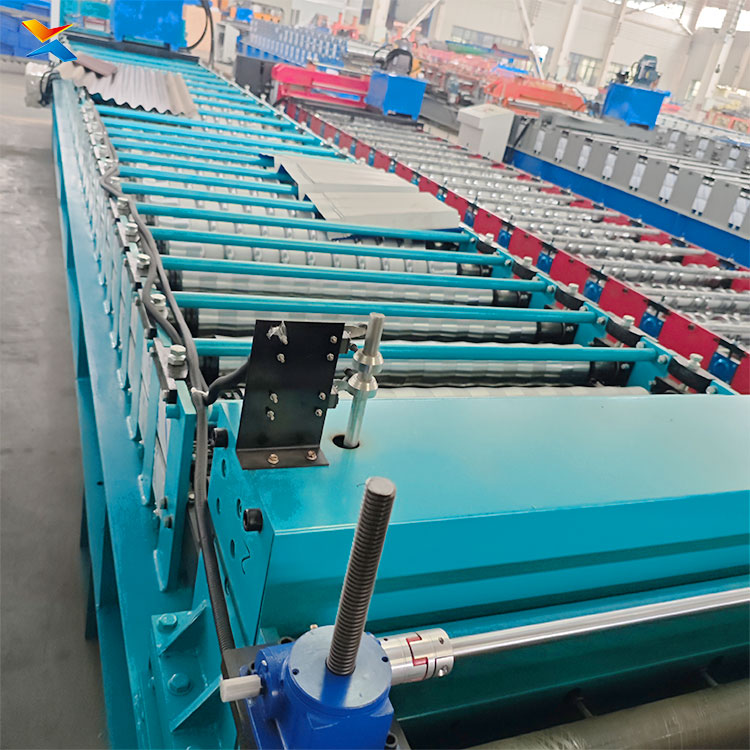

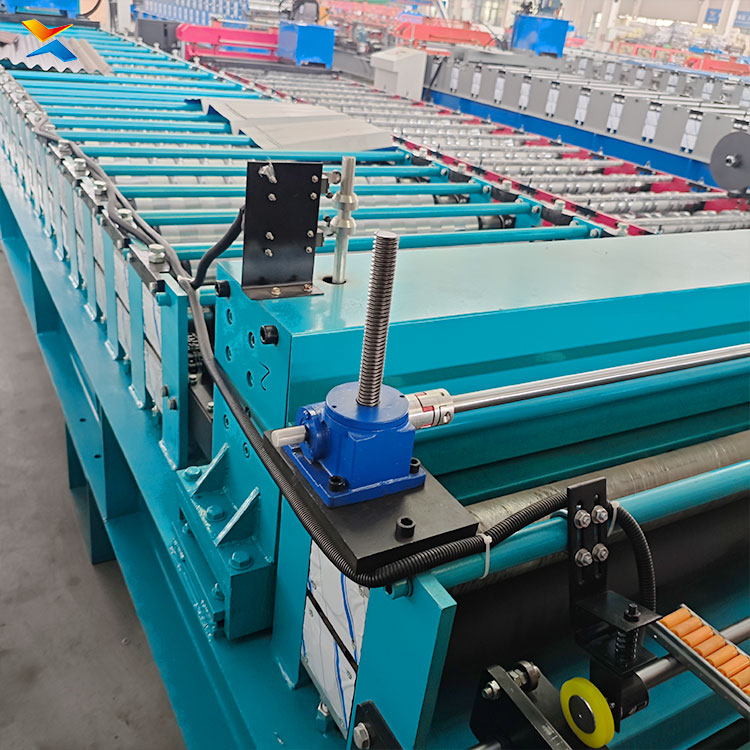

CNC Arc Single Panel Pressing Machine
Product Description
CNC Arc Single Panel Pressing Machine is a kind of high-precision cold roll forming equipment controlled by numerical control system, which is specially used for pressing and forming flat metal sheets into arc-shaped single panels at one time. It is widely used in the processing and production of arched roof panels, curved wall panels, garage door panels and decorative metal components in construction, steel structure and decoration industries.

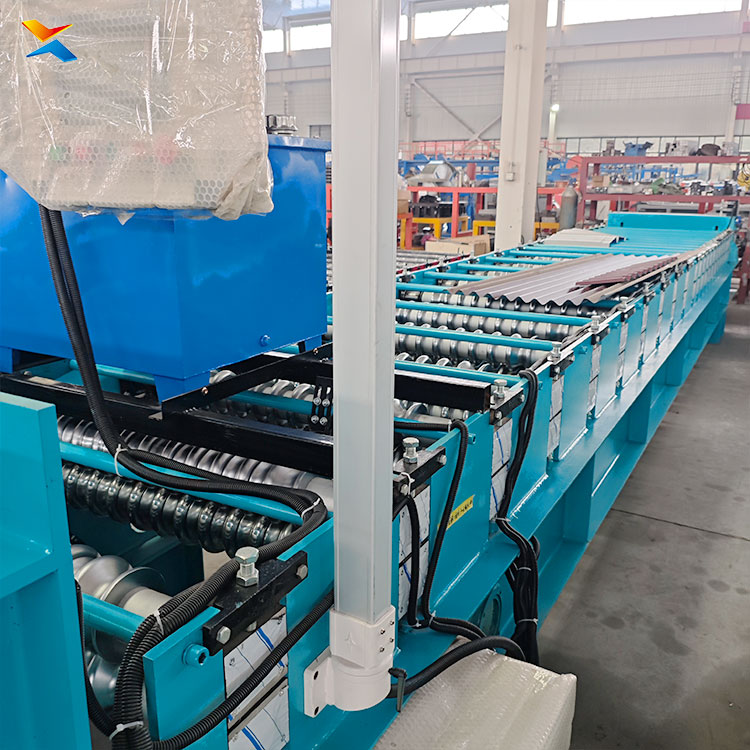

This machine adopts an integrated structure design with a solid welded frame, featuring strong rigidity, stable operation and low noise. Equipped with a professional CNC control system and touch screen operation interface, it can realize intelligent control of arc radius, forming speed, pressing length and cutting position, with high control precision and stable product size. The whole process of automatic feeding, forming, pressing and fixed-length cutting can be completed continuously, effectively improving production efficiency and reducing manual operation.

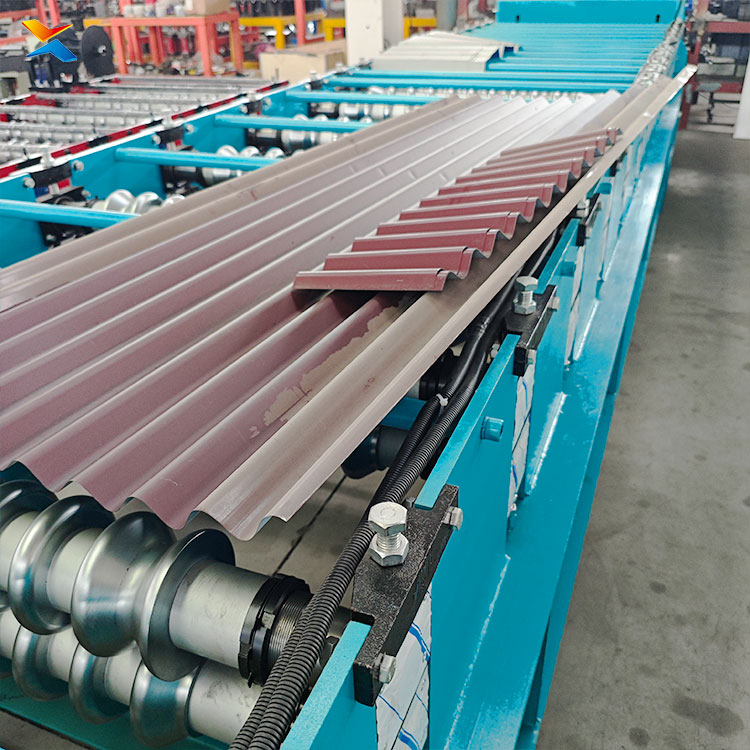

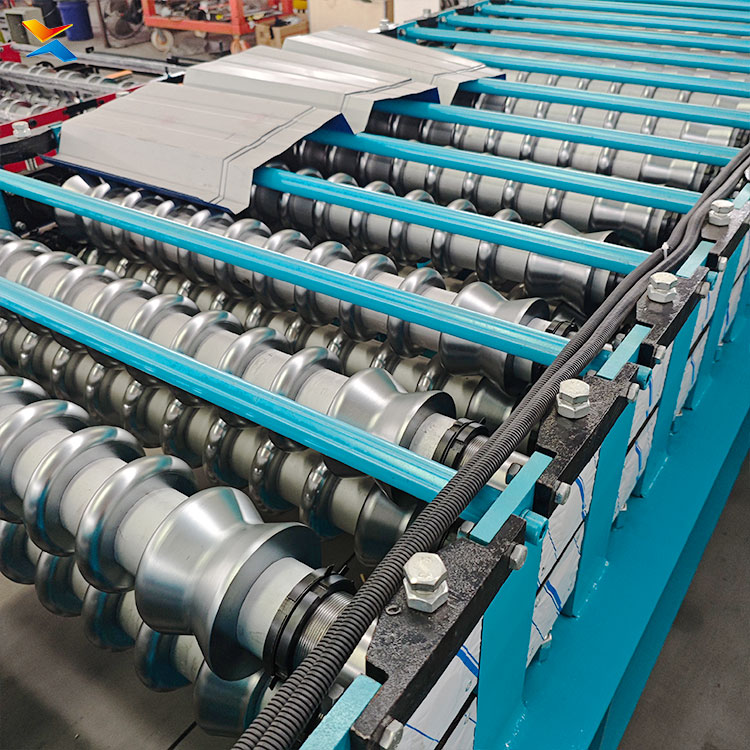

The forming rollers are made of high-quality alloy steel, processed by precision machining, quenching and hard chrome plating, with high wear resistance, ensuring smooth surface of formed panels without scratches or deformations. It supports stepless speed regulation, can adapt to various metal sheets such as color steel plates, galvanized steel plates and aluminum plates within a certain thickness and width range, and the arc radian can be flexibly adjusted according to actual production needs.
With the advantages of simple operation, high forming precision, reliable performance and long service life, this machine can be customized according to customer requirements for different profile shapes, pressing widths and arc radii, which is ideal equipment for metal sheet processing and building materials manufacturing enterprises.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
