Color Steel Trapezoidal Sheet Roll Forming Machine
Product Description
This color steel trapezoidal sheet roll forming machine is a kind of high-efficiency automatic cold bending forming equipment, which is mainly used for continuous processing and production of trapezoidal profiled plates from color steel coils, galvanized steel coils and other metal coils. It integrates uncoiling, leveling, roll forming, fixed-length cutting and other functions, and is widely used in the production of roof panels, wall panels and other building profiled plates in the construction field.

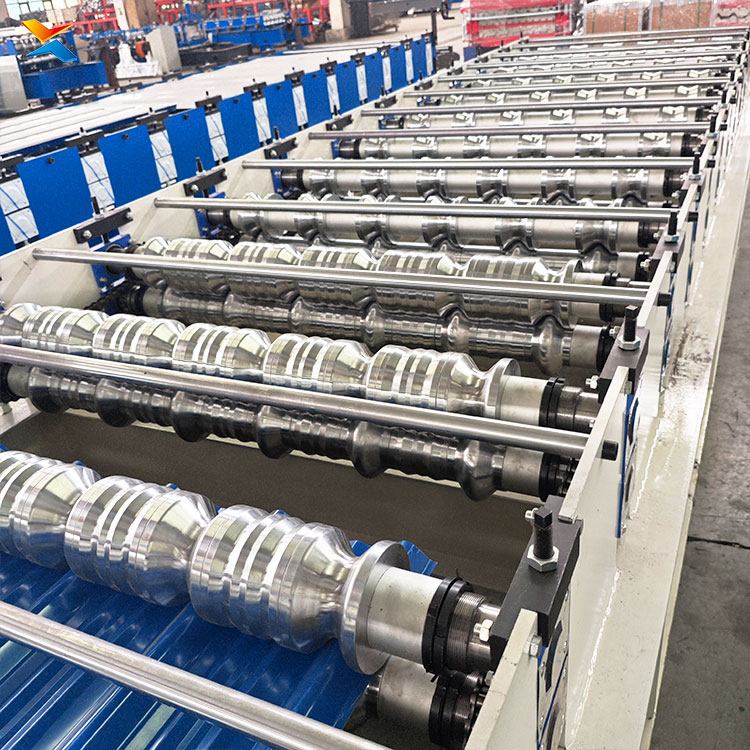

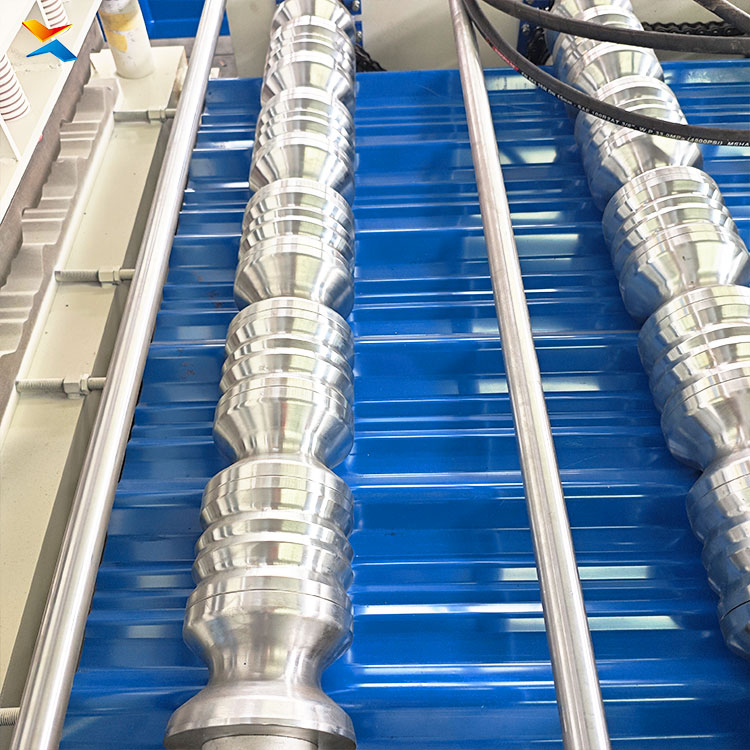

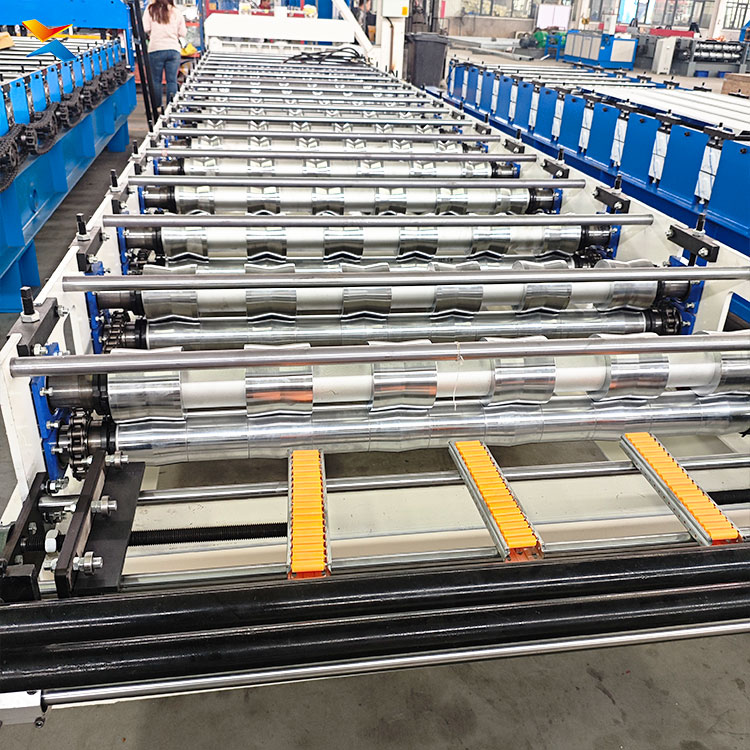

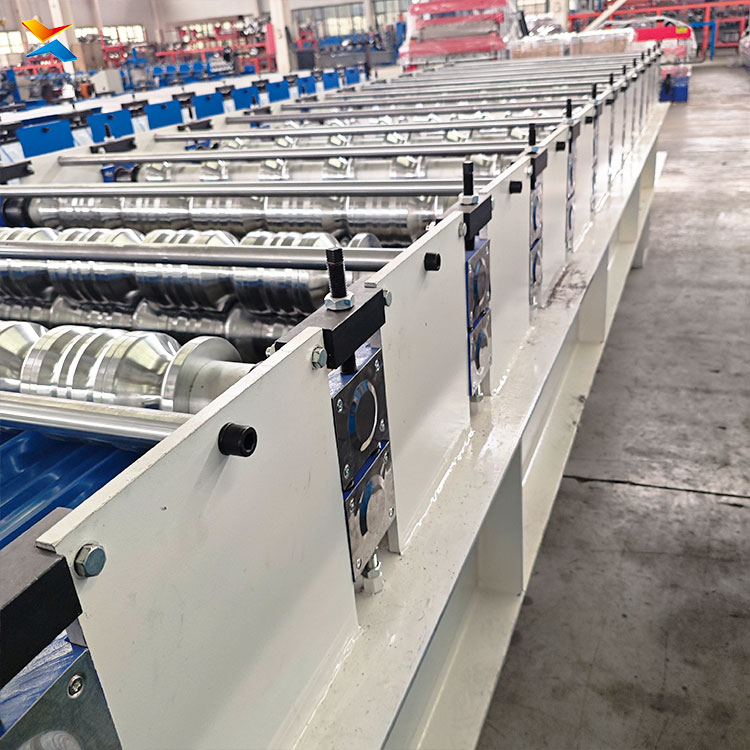

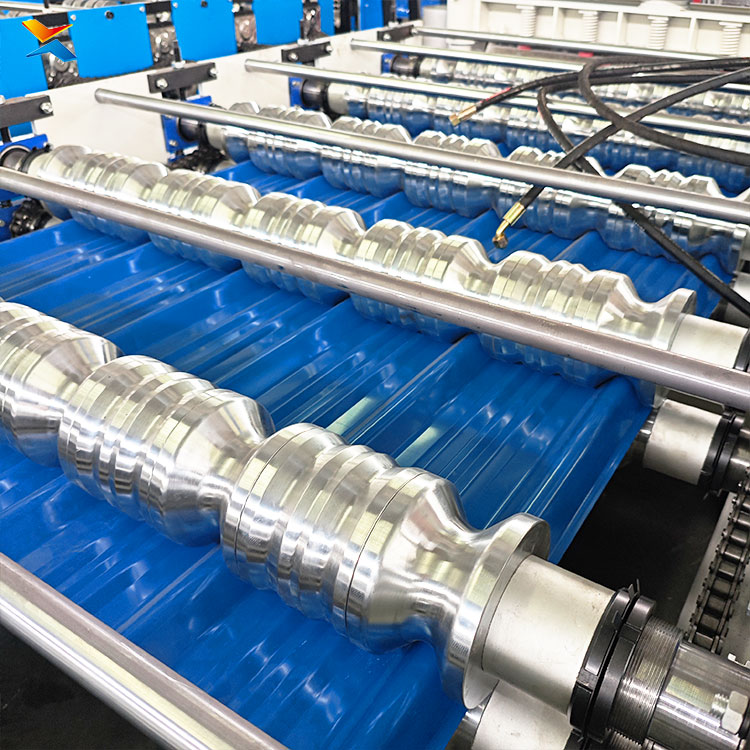

The whole machine adopts a heavy-duty welded frame structure, with good rigidity and stability, and is not easy to deform during long-term high-speed operation. The forming rollers are made of high-quality alloy steel after precision machining, heat treatment and surface hardening treatment, with high wear resistance and long service life, which can ensure the consistency and dimensional accuracy of the formed plates.
It is controlled by an independent PLC control system and equipped with a human-machine touch screen. Users can set parameters such as length, quantity and forming speed according to production needs. The automatic fixed-length cutting system adopts hydraulic cutting mode, with fast cutting speed, smooth cut and no burrs, effectively reducing material loss. The transmission system runs stably with low noise, and the forming speed can be adjusted freely to meet different production capacity requirements.
The equipment has a high degree of automation, simple operation and convenient maintenance. It can adapt to metal coils of different thicknesses within a certain range, and can produce a variety of conventional trapezoidal profiles. It has the advantages of high production efficiency, stable performance and good product quality, and is suitable for large-scale continuous production in steel structure building material processing enterprises.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
