Full Automatic Trapezoidal Color Steel Tile Roll Forming Machine
Product Description
This full automatic trapezoidal color steel tile roll forming machine is a kind of high-efficiency special equipment for continuous production of color steel trapezoidal roof tiles. It is mainly used for cold roll forming of color coated steel coils, galvanized steel coils and other metal coils, and the finished products are widely used in roof and wall enclosure systems of factories, warehouses, markets, steel structure buildings and residential buildings.

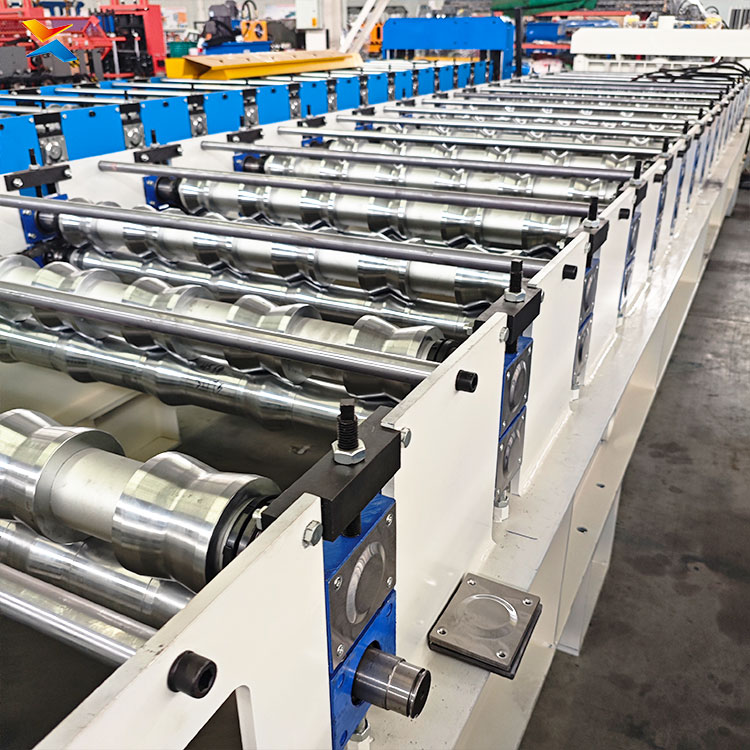

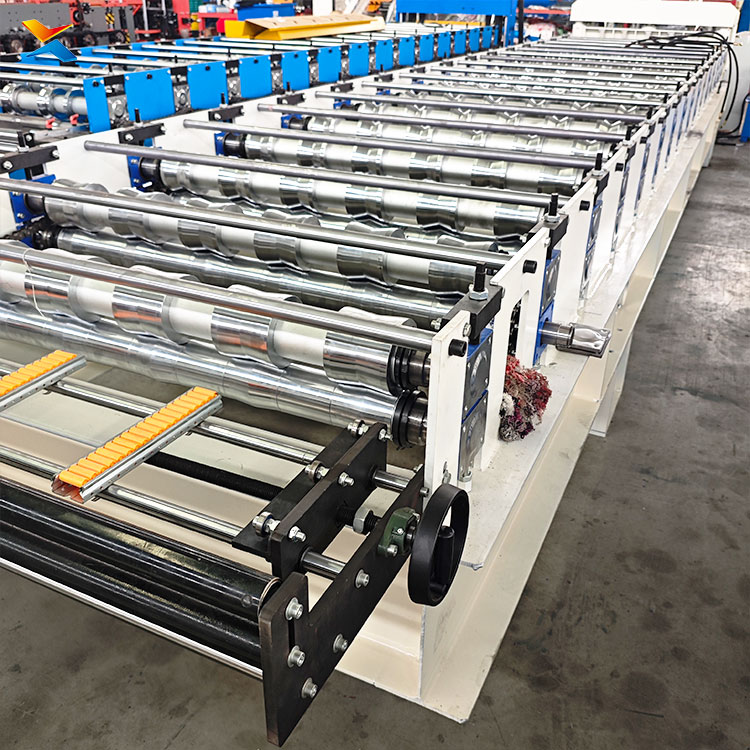

The whole machine is composed of decoiling, leveling, feeding, roll forming, hydraulic cutting and product receiving system, which realizes fully automatic continuous production. It adopts heavy-duty welded frame with strong rigidity and good stability, ensuring stable operation and no deformation during long time high-speed production.

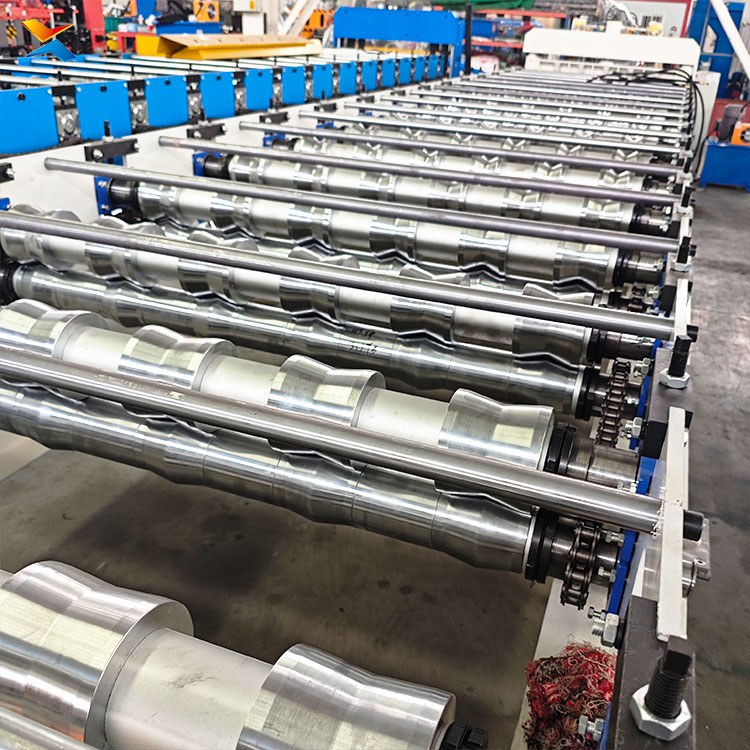

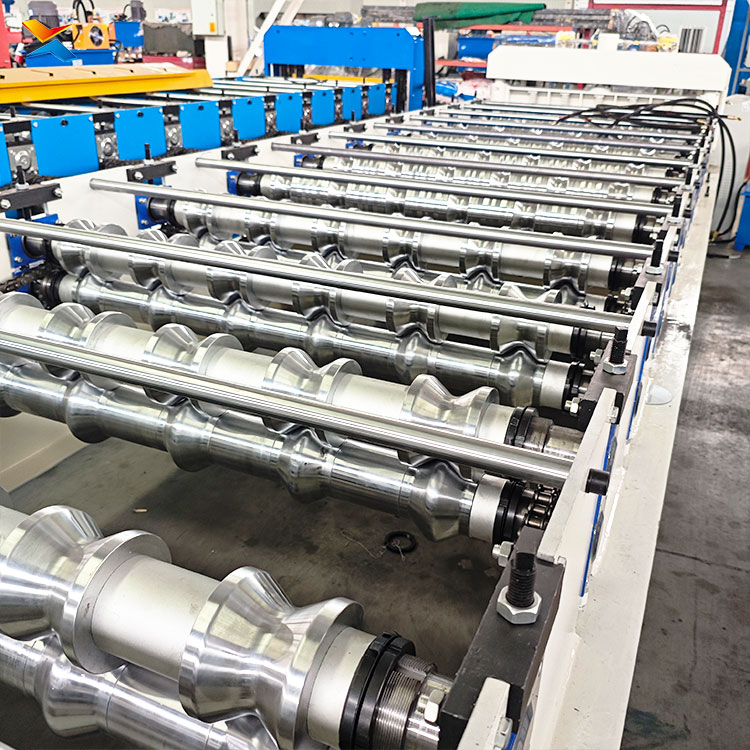

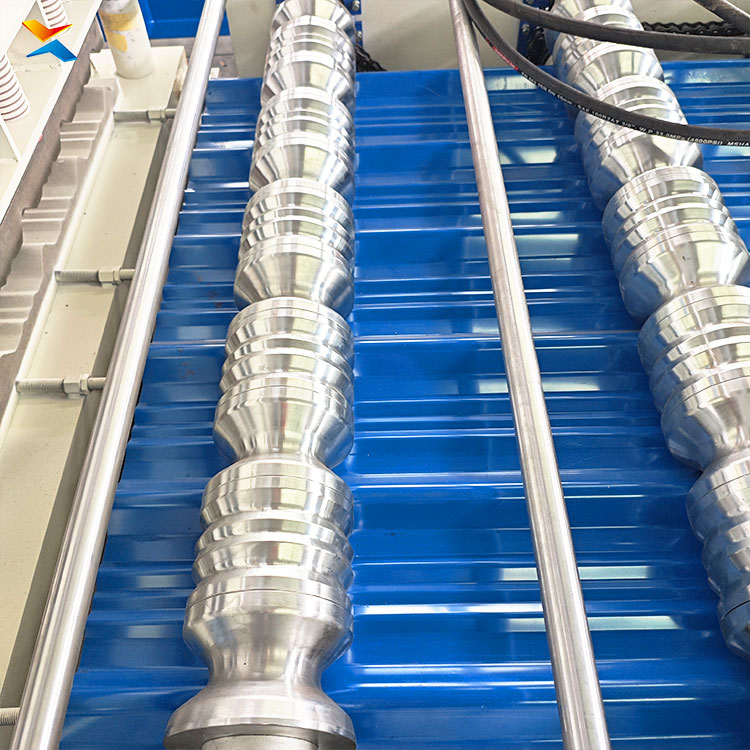

The forming rollers are made of high-quality alloy steel, precision processed, quenched and hard chrome plated, with high wear resistance and long service life. The roller design ensures that the formed color steel tiles have smooth surface, accurate size and good bending resistance.
Equipped with PLC automatic control system and touch screen operation interface, it can freely set the length, quantity and speed of the products. The hydraulic cutting system can achieve fixed-length accurate cutting, with flat cut and no burrs, effectively reducing material waste. The transmission system runs stably with low noise, and the forming speed is adjustable to meet different production capacity requirements.
This machine has the advantages of high automation, simple operation, high production efficiency, stable performance and easy maintenance. It can process metal coils of different thicknesses and produce a variety of standard trapezoidal color steel tiles, which is ideal equipment for building material processing enterprises.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
