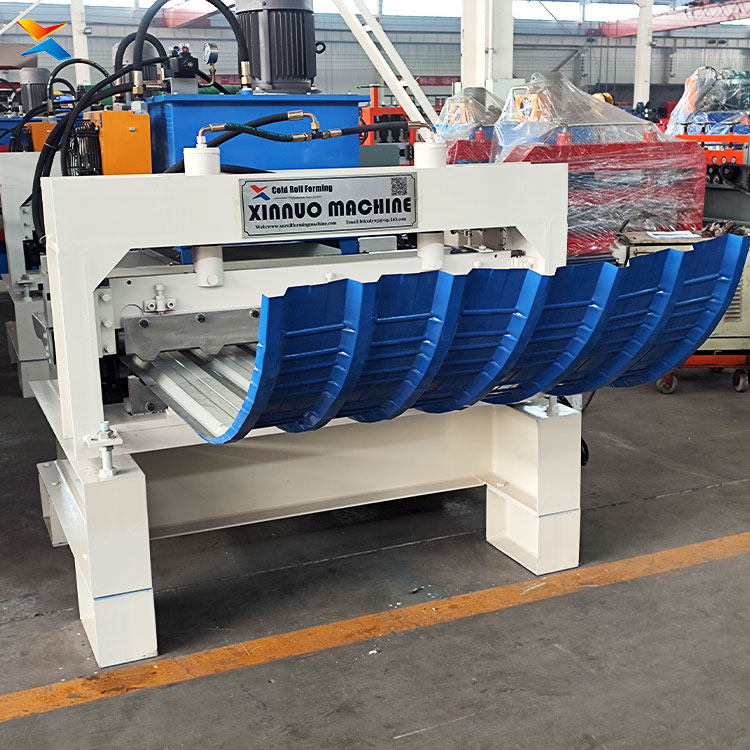

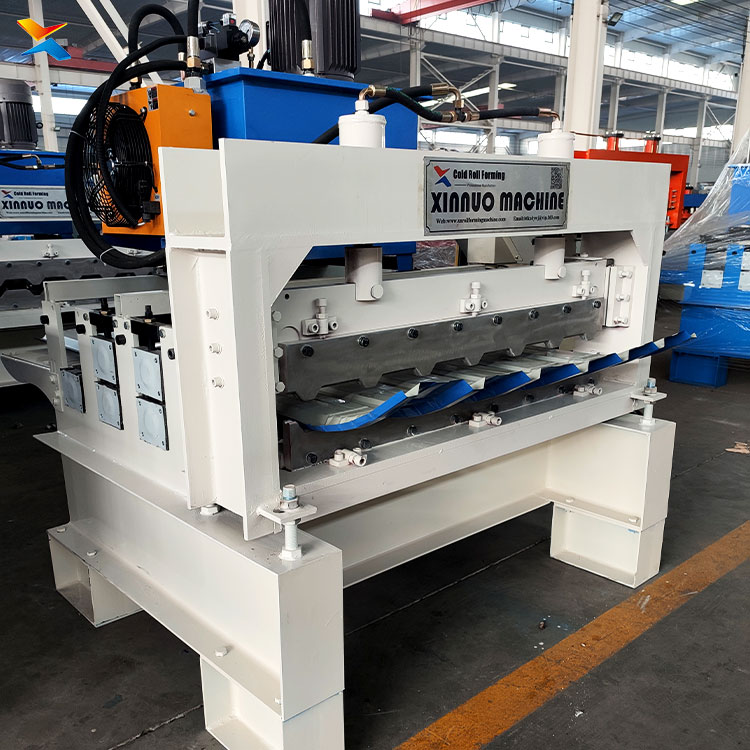

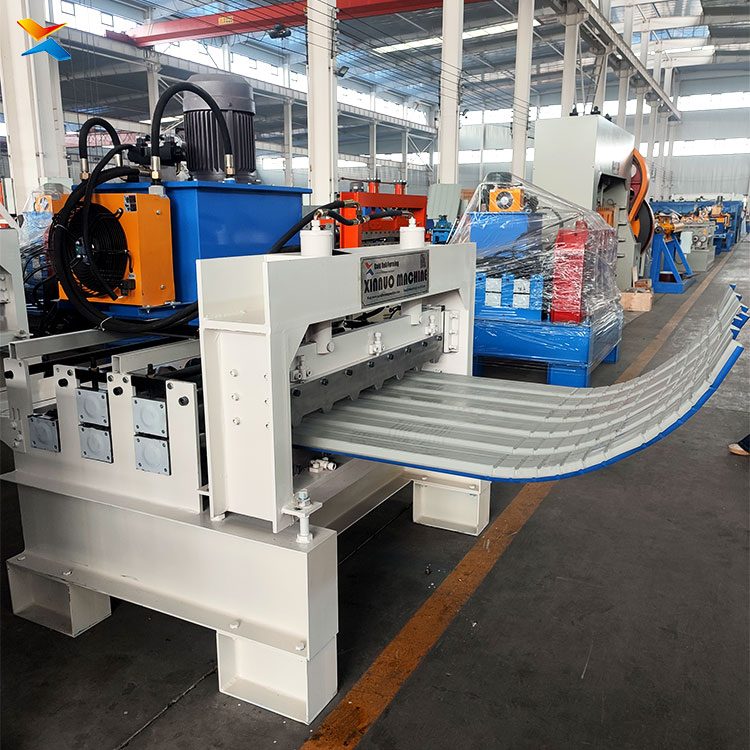

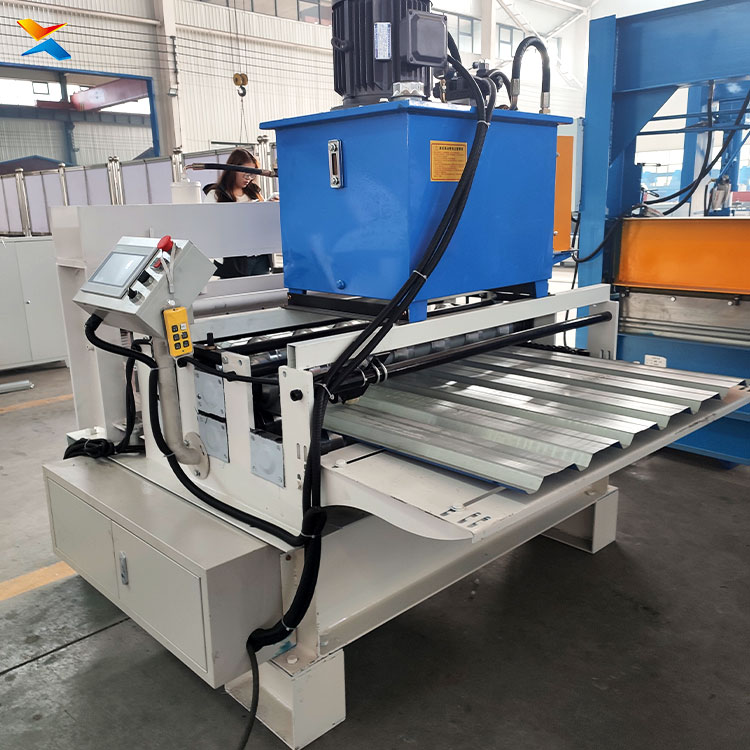

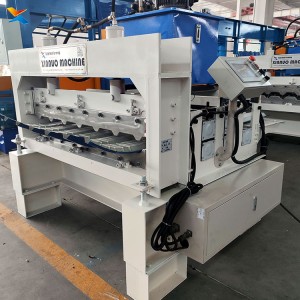

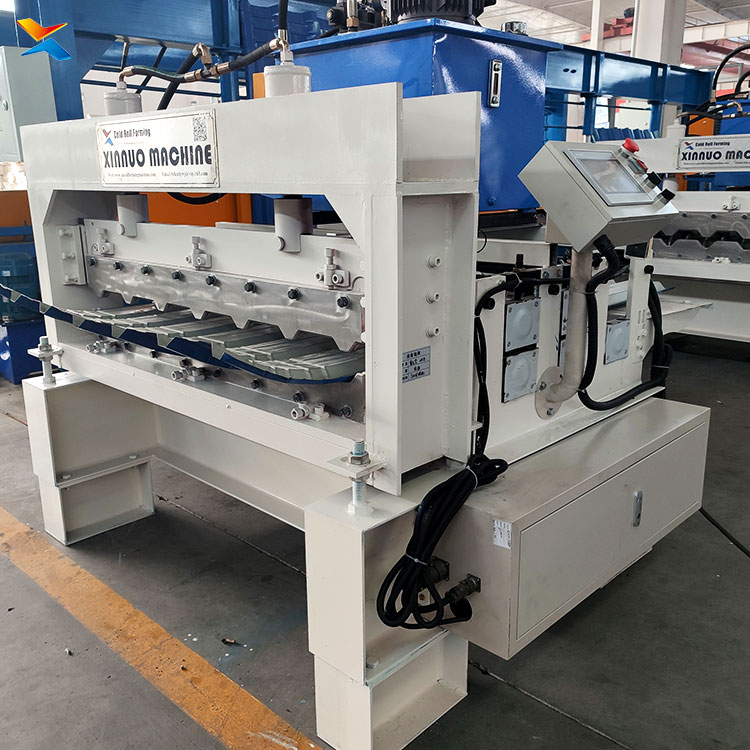

High Efficiency Cambering Machine For Steel Sheet Product Description
The High Efficiency Cambering Machine for Steel Sheet is a professional cold-bending processing equipment specially designed for the camber forming of various steel sheets, integrating high efficiency, precision, and durability. It is widely used in architectural curved steel structures, tunnel support, bridge engineering, colored steel roofing, steel structure workshops, and other fields, effectively replacing traditional heat-bending processes and manual operation, significantly improving production efficiency and product quality while reducing production costs and material waste[superscript:7].
Adopting advanced full hydraulic control system and precision mechanical structure, the machine realizes efficient and stable camber forming without heating the steel sheet, avoiding material oxidation and structural damage caused by heat treatment. Compared with the traditional heat camber process, it has obvious advantages: the whole operation process is controllable in real time, and there is no need to repeat heating and correction due to inaccurate camber, which greatly saves time and energy consumption, and the energy consumption is reduced by more than 70% compared with the heat-bending process[superscript:2]. The integrated dual-drive conveyor system ensures seamless high-speed feeding and unloading, further improving the continuity and efficiency of the production line.
In terms of precision control, the machine is equipped with a high-performance PLC control system and a laser measuring system (optional), which can realize real-time monitoring and automatic correction of the camber forming process. The operator only needs to input the required camber parameters and steel sheet specifications, and the machine can complete the forming operation automatically with high precision. The camber tolerance can reach ±1mm, and the arc deviation per meter is not more than ±2mm, which fully meets the high-precision requirements of various engineering projects[superscript:5][superscript:8]. The laser measuring system can digitally display the deformation of the steel sheet, effectively compensating for the springback effect of the steel sheet, ensuring the consistency and stability of the finished product shape.
The machine has strong versatility and flexible adaptability, which can process various types of steel sheets such as galvanized steel sheets, colored steel sheets, and ordinary carbon steel sheets, with a thickness range of 0.3-8mm (customizable according to customer needs) and a maximum processing width that can be customized according to actual production requirements[superscript:12]. By replacing the roller mold, it can quickly switch between different camber specifications and shapes, with a mold change time of less than 30 minutes, which is suitable for small-batch and multi-specification production needs, and greatly improves the utilization rate of the equipment. It supports the forming of various arc shapes such as circular arcs, elliptical arcs, and multi-segment arcs, and can meet the personalized processing needs of different projects.
In terms of structural design, the machine adopts a high-strength steel frame structure, which is integrally welded and subjected to aging treatment, ensuring strong rigidity and stability during long-term high-load operation, and effectively reducing vibration and noise. The key components such as rollers and hydraulic cylinders are made of high-quality alloy steel, which has been quenched and tempered, with high hardness (cutter hardness up to 50-65 HRC) and wear resistance, greatly extending the service life of the equipment[superscript:8]. The overall structure is compact and detachable, which is convenient for transportation and on-site installation, and can be directly operated on the construction site, avoiding the loss and cost increase caused by long-distance transportation of finished cambered steel sheets[superscript:4].
The machine is designed with user-friendliness in mind, with a simple and intuitive operation interface (supporting Chinese and English languages) and easy-to-learn operation steps. Operators can master the operation skills with minimal training, which effectively reduces the labor intensity and skill requirements of operators. It is equipped with a complete safety protection system, including emergency stop buttons, safety guards, and overload protection devices, which can effectively avoid safety accidents caused by misoperation and ensure the safety of operators and equipment.
We provide comprehensive after-sales service, including 12-24 months of quality warranty, on-site debugging, remote technical guidance, and free technical training. Our professional engineering team can provide timely on-site maintenance services (arriving at the site within 48 hours in most regions) to ensure the stable operation of the equipment and solve the worries of customers in use[superscript:4]. In addition, we can provide customized services according to the specific needs of customers, including equipment specifications, control systems, and mold customization, to perfectly match the actual production needs of different industries and projects[superscript:5].
As an indispensable key equipment in modern steel sheet processing, the High Efficiency Cambering Machine for Steel Sheet has the characteristics of high efficiency, energy saving, high precision, strong versatility, and easy operation. It can help enterprises improve production efficiency, reduce production costs, and enhance product competitiveness, and is an ideal choice for steel processing enterprises, construction engineering companies, and related manufacturing industries to realize high-quality and efficient production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
