Product Overview

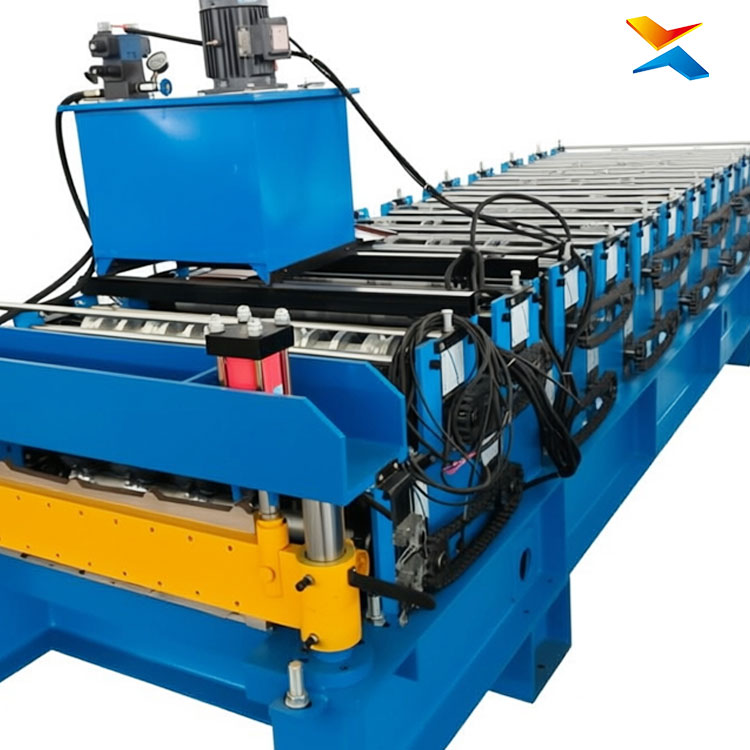

The High Output Trapezoidal Single Sheet Machine is a highly efficient, cost-effective steel roofing panel production line meticulously engineered to maximize manufacturing throughput while minimizing operational costs. Designed for high-volume production environments, this advanced roll forming system seamlessly transforms PPGI and GI steel coils into premium trapezoidal roofing sheets at exceptional speeds. By integrating a high-speed continuous forming architecture with intelligent automation, it delivers unmatched productivity, consistent quality, and rapid return on investment. This cost-effective production line is the definitive choice for steel fabricators looking to scale up operations, meet surging market demand, and maintain a highly competitive edge in the commercial and industrial metal roofing sector.
- Exceptional Production Speed & High Output: Engineered for maximum throughput, this machine operates at high speeds (typically 25 to 35 meters per minute, depending on profile and thickness). The continuous roll forming and flying cut-off technology ensure uninterrupted production, significantly increasing daily output and fulfilling large-volume orders with ease.
- Cost-Effective & Energy-Efficient Design: Optimized to deliver the lowest cost-per-panel in the industry, the machine features an energy-efficient hydraulic system and streamlined mechanical design. Its robust, low-maintenance architecture reduces long-term operational expenses, spare parts consumption, and labor requirements, maximizing overall profitability.
- Continuous Hydraulic Flying Cut-Off: Equipped with a high-performance hydraulic flying shear system that dynamically tracks the moving panel. This technology executes clean, burr-free cuts at exact lengths without stopping the production line, eliminating idle time and ensuring seamless, high-speed manufacturing.

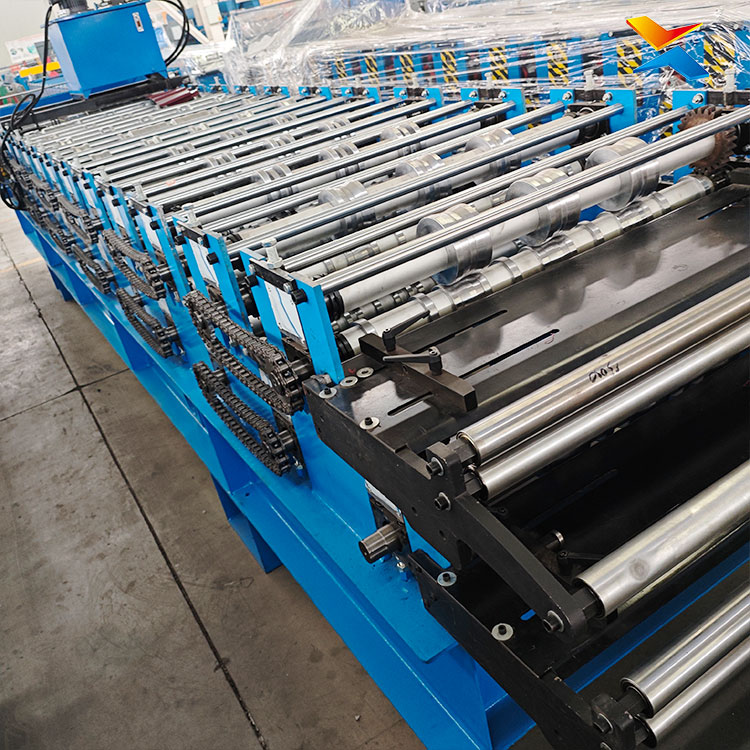

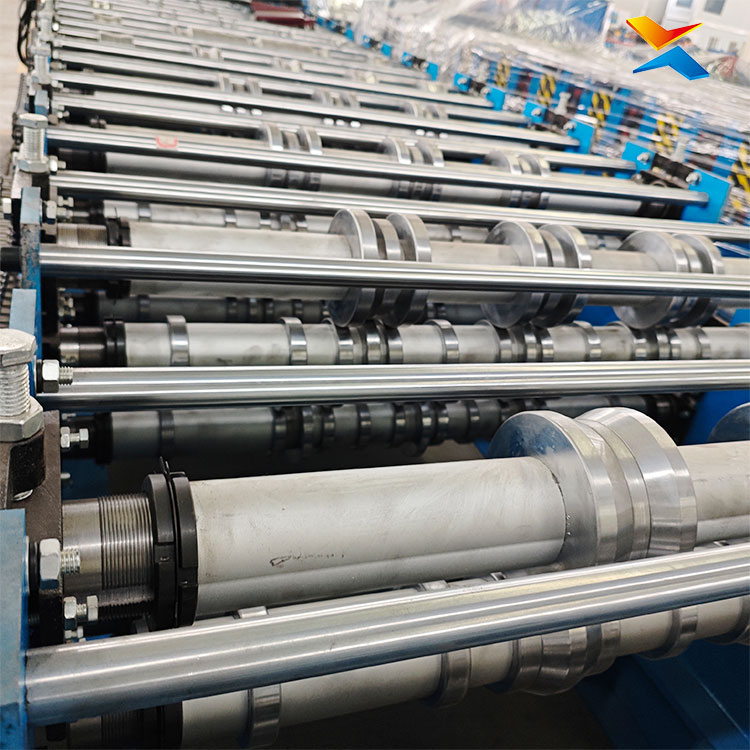

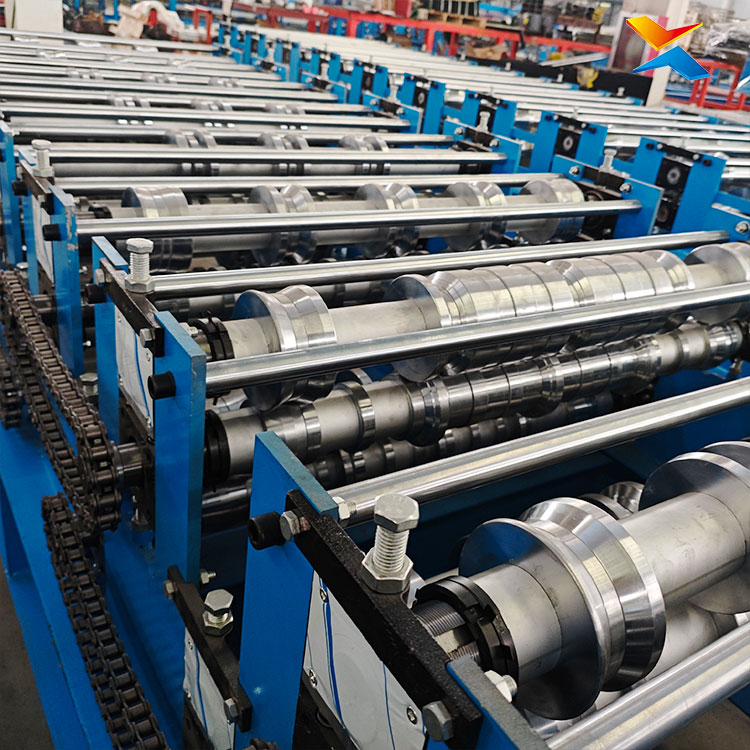

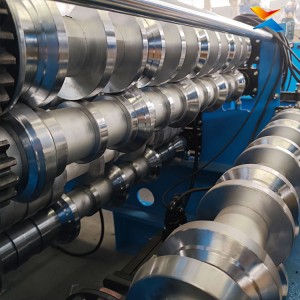

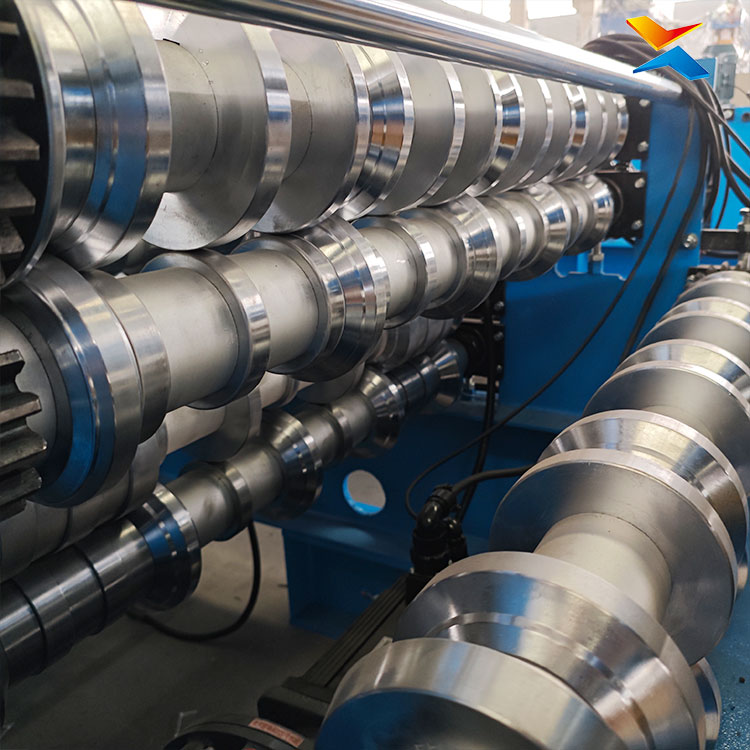

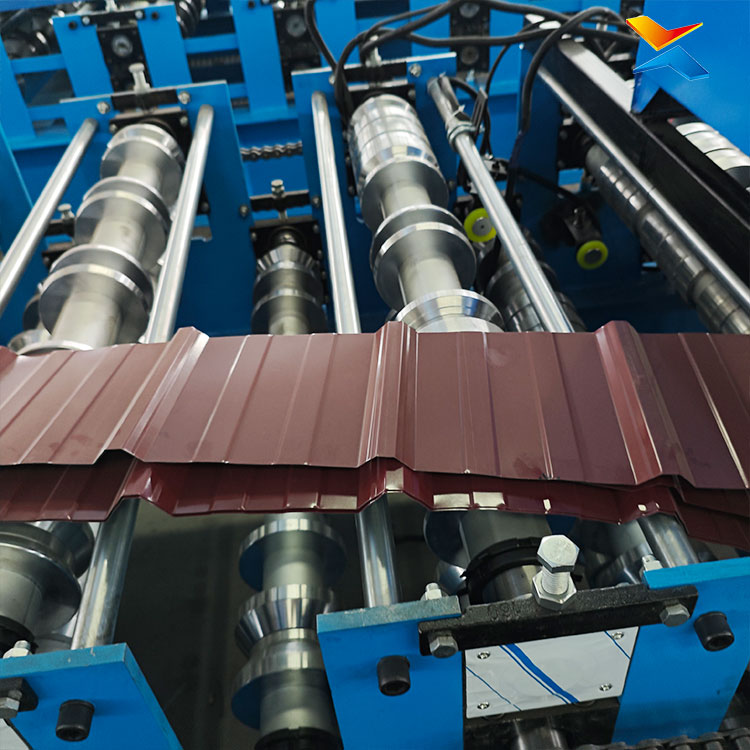

- Precision Roll Forming Stations: Despite its focus on high output, the machine does not compromise on quality. It features heavy-duty, precision-machined forming rollers crafted from premium tool steel (Cr12MoV) with hard chrome plating. This ensures crisp trapezoidal ribs, exact dimensional tolerances, and a flawless surface finish on every panel.
- Intelligent PLC Automation & Quick Changeover: Governed by an advanced PLC control system and a user-friendly touchscreen HMI, the line automates the entire workflow. Operators can effortlessly manage batch quantities, panel lengths, and production speeds. The system also supports rapid recipe switching, minimizing downtime between different profile specifications.
- Heavy-Duty, Vibration-Free Frame: Built with a reinforced, stress-relieved steel chassis, the machine absorbs the intense vibrations and forming forces generated during high-speed operation. This rigid structural integrity guarantees consistent panel quality and extends the service life of all mechanical components.
The high-volume trapezoidal steel panels produced by this cost-effective production line are the backbone of large-scale construction and infrastructure projects, including:
- Large-Span Industrial Warehouses: Supplying massive quantities of durable, weather-resistant roofing and wall cladding for manufacturing plants, logistics hubs, and distribution centers.
- Commercial & Public Facilities: Providing high-strength, aesthetically pleasing metal panels for shopping malls, exhibition centers, sports stadiums, and airport terminals.
- Agricultural & Rural Infrastructure: Delivering reliable, long-lasting roofing solutions for large-scale greenhouses, poultry farms, and agricultural storage facilities.
- Residential & Modular Construction: Supporting high-volume production of modern metal roofing and siding for residential housing developments and prefabricated modular buildings.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
