Product Overview
The Smooth Surface Trapezoidal Single Sheet Machine is a premium-grade roll forming system specifically engineered to produce high-quality metal roofing panels with flawless, scratch-free finishes. Designed to handle sensitive pre-painted (PPGI) and galvanized (GI) steel coils, this advanced equipment combines precision mechanical engineering with intelligent automation to deliver superior aesthetic and structural performance. By utilizing meticulously polished, hard-chromed forming rollers and a rigid, zero-deflection frame, the machine guarantees a perfectly smooth surface while maintaining exact trapezoidal profiles. This high-quality metal roofing roll forming equipment is the ultimate manufacturing solution for fabricators producing premium architectural cladding and industrial roofing where both durability and visual perfection are paramount.

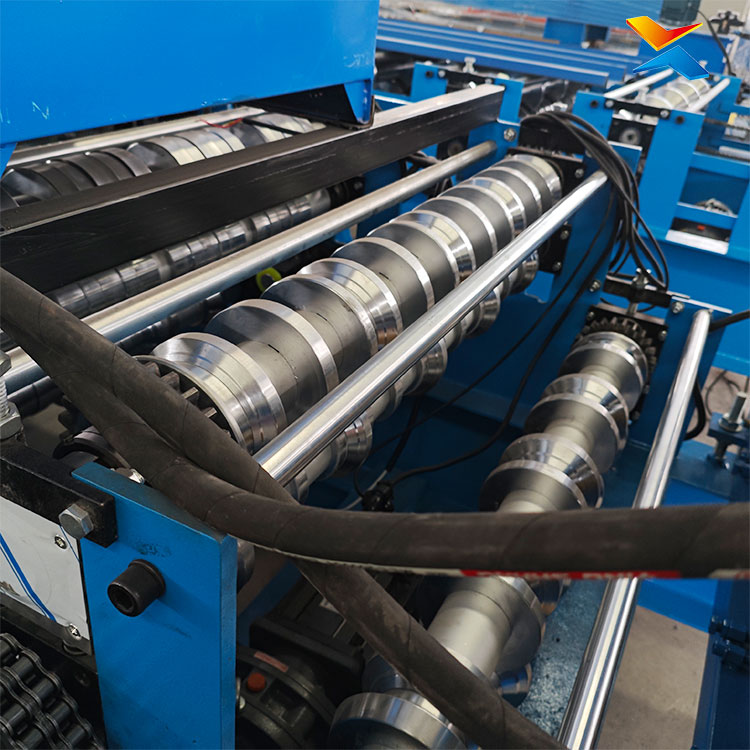

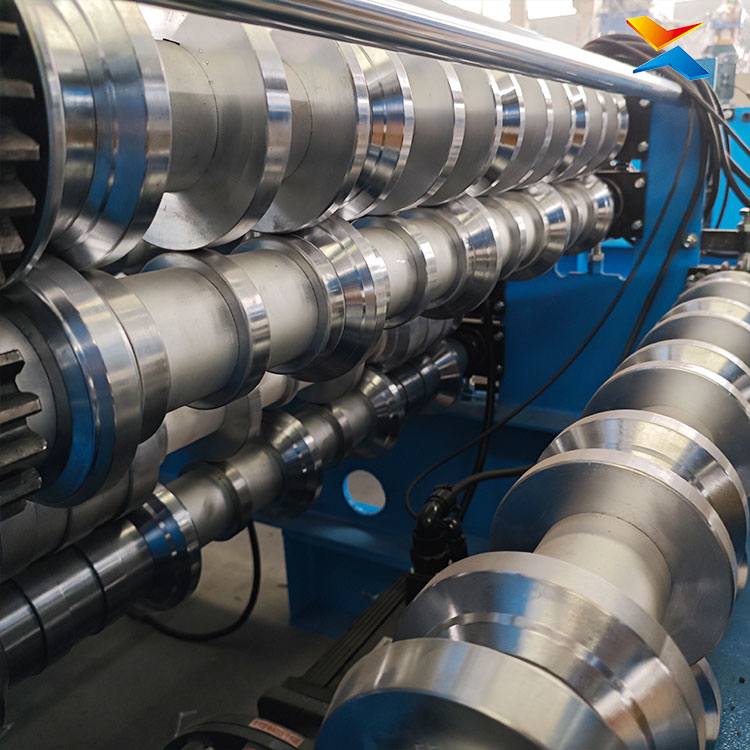

- Flawless Surface Protection Technology: The core advantage of this machine lies in its specialized surface protection. All forming rollers undergo precision CNC machining, mirror polishing, and hard chrome plating. This ultra-smooth finish completely eliminates friction, ensuring that the color coating and zinc layers on PPGI/GI coils remain completely scratch-free and visually perfect.
- High-Precision Trapezoidal Forming: Engineered with meticulously calibrated multi-stage forming stations, the machine guarantees crisp, uniform ribs and exact dimensional tolerances. This high-precision bending ensures perfect panel interlocking, superior structural load-bearing capacity, and excellent water-shedding performance.
- Intelligent PLC Automation & Control: Governed by an advanced PLC control system and a user-friendly touchscreen HMI, the machine allows for seamless operation. Operators can effortlessly input panel lengths, batch quantities, and bending parameters. The intelligent system ensures high repeatability, automated length counting, and rapid recipe switching.

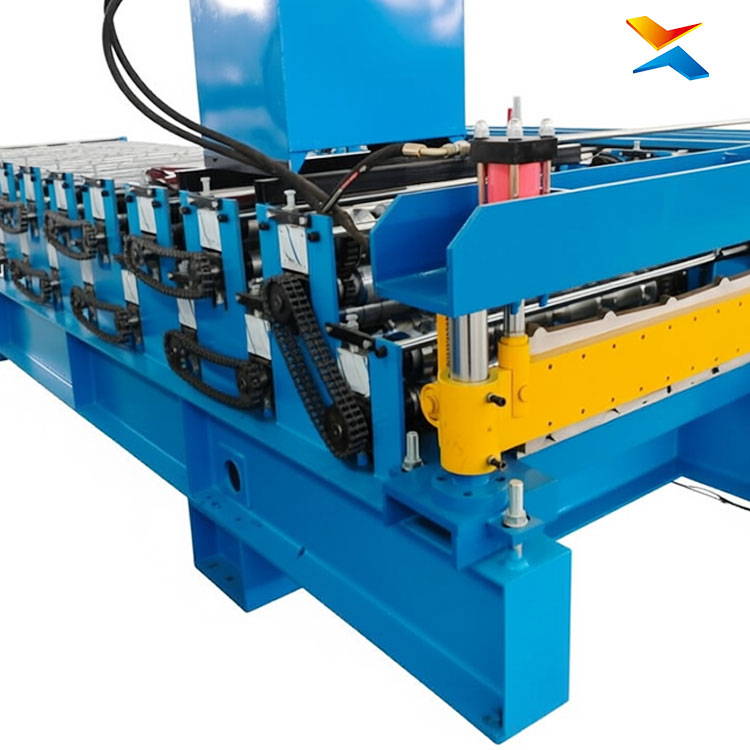

- Continuous High-Speed Automatic Cutting: Equipped with a high-speed hydraulic flying shear system, the machine dynamically tracks the moving panel to execute clean, burr-free cuts at exact lengths. This continuous cutting technology maximizes throughput and operational efficiency without stopping the production line.
- Heavy-Duty & Vibration-Free Frame: Built with a reinforced, stress-relieved steel chassis, the machine absorbs high forming forces and vibrations without mechanical deflection. This robust architecture guarantees stable, continuous operation and consistent panel quality even during prolonged, high-speed manufacturing.
- Versatile Material Compatibility: Highly adaptable to process PPGI, GI, and aluminum coils with thicknesses typically ranging from 0.3mm to 0.8mm. Adjustable entry guides and precision leveling equipment ensure the material feeds perfectly straight into the forming section.
The smooth, high-quality trapezoidal panels produced by this machine are widely utilized across premium construction and architectural sectors, including:
- Premium Commercial Architecture: Producing aesthetically flawless exterior facades, roofing, and wall cladding for high-end shopping malls, exhibition halls, sports arenas, and corporate headquarters.
- Industrial & Warehouse Construction: Manufacturing durable, weather-resistant, and visually appealing roofing for large-span factories, logistics centers, and storage facilities.
- Residential & Modern Housing: Creating sleek, modern metal roofing and siding for residential homes, luxury villas, and prefabricated modular buildings where surface finish is critical.
- Agricultural & Rural Structures: Providing reliable, long-lasting, and aesthetically pleasing roofing solutions for modern greenhouses, poultry farms, and agricultural equipment storage.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
