High Precision Arc Color Steel Single Panel Cold Roll Forming Machine
Product Description

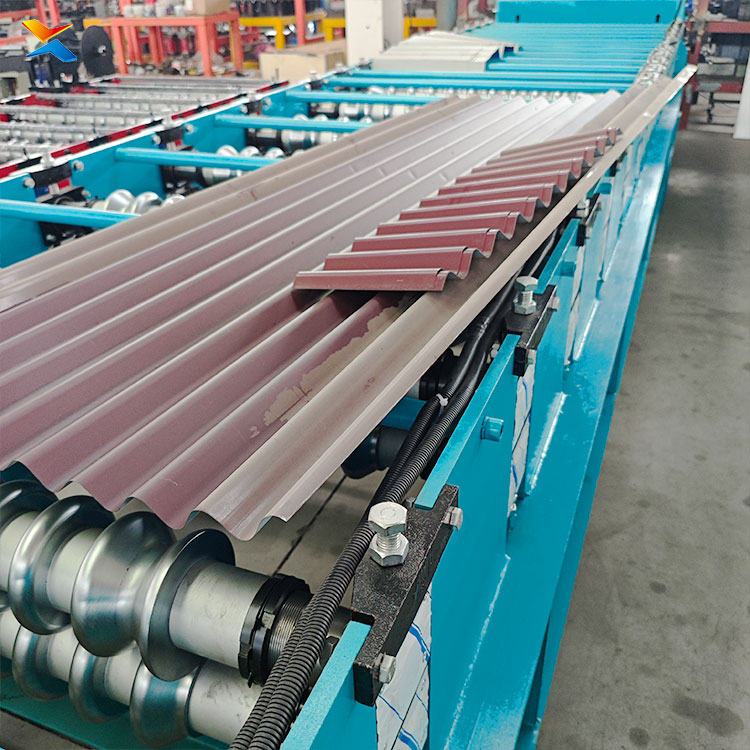

This machine is a piece of high-efficiency, fully automatic cold roll forming equipment specially designed for manufacturing high-precision arc-shaped color steel single panels. It integrates automatic uncoiling, leveling, feeding, roll forming, arc bending, fixed-length cutting and finished product output, which is widely used in the production of arched roof panels, curved wall panels, garage door panels, canopy panels and other building decoration metal parts.

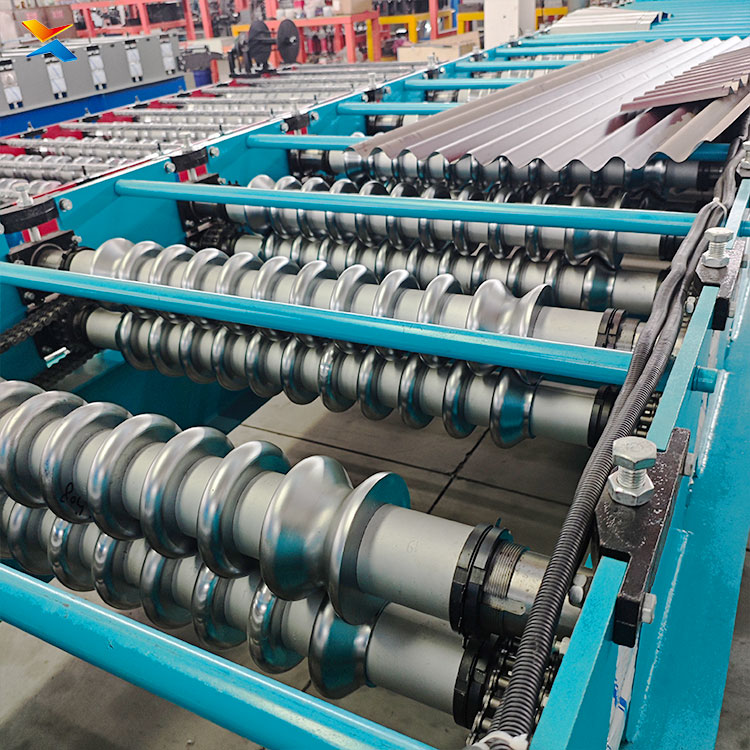

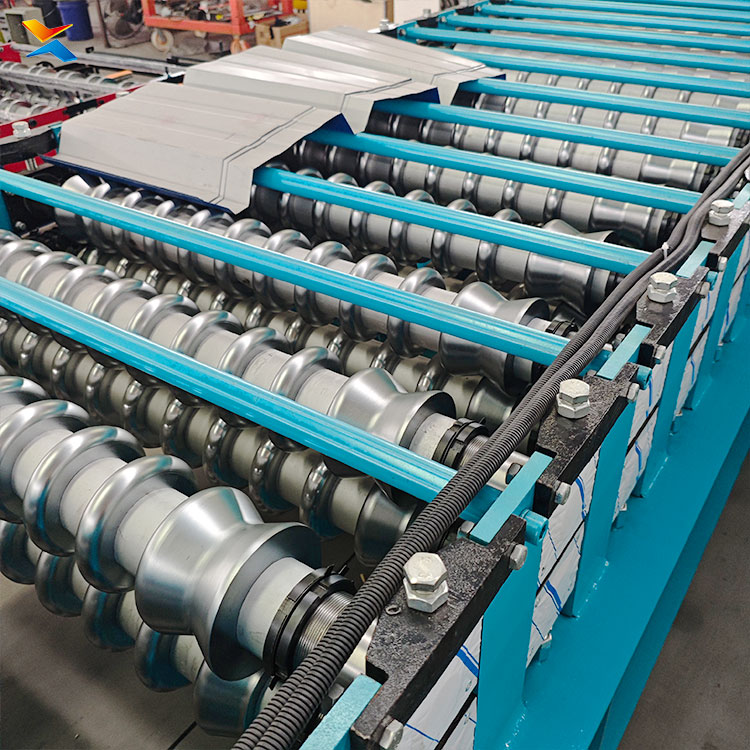

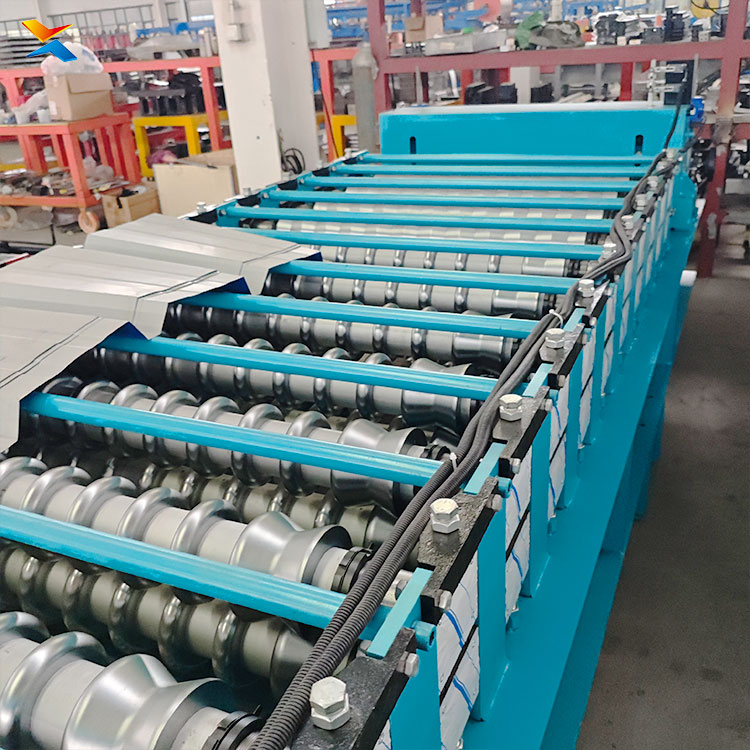

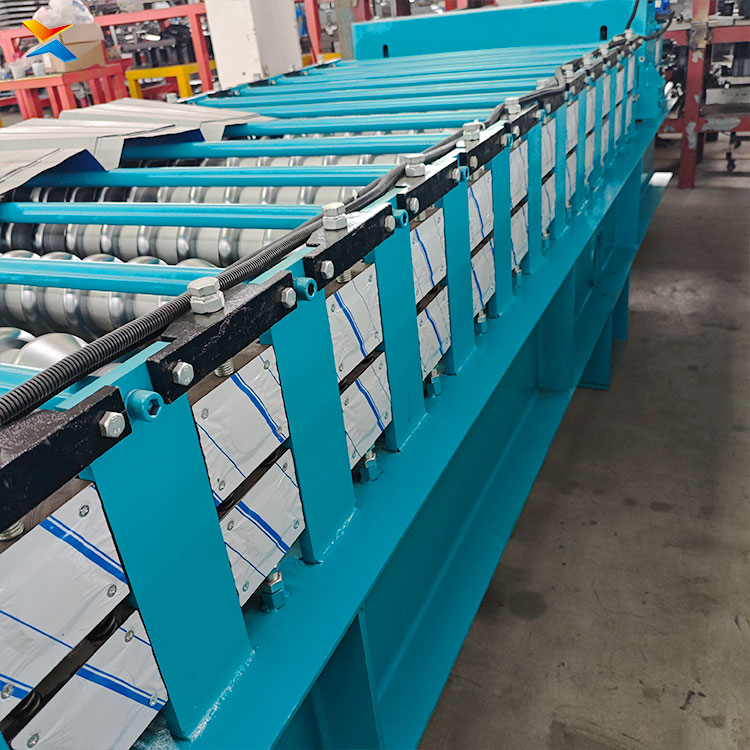

Adopting a heavy-duty welded steel frame structure, the equipment features high rigidity, stable operation and low vibration, ensuring long-term stable processing accuracy. The multi-pass progressive forming roller system is precisely designed and manufactured with high-quality alloy steel, quenched and hard chrome plated, which can gradually shape the sheet into a smooth and even arc surface without scratches, wrinkles or springback.
Equipped with an intelligent PLC control system and human-machine touch screen, it supports precise adjustment of forming speed, cutting length and arc radian, realizing fully automatic and high-stability production. The main drive adopts variable frequency speed regulation, with reliable performance, low energy consumption and low noise. It is suitable for color steel plates, galvanized steel plates and other metal sheets with thickness ranging from 0.3 mm to 1.2 mm.
With the advantages of high forming precision, good consistency, high production efficiency and easy operation, the machine can be customized according to customer requirements for different plate widths, profile models and arc radii, providing an ideal solution for high-standard color steel forming and steel structure processing enterprises.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
