Product Overview
The High Speed C Z Purlin Roll Forming Machine is a state-of-the-art, dual-purpose manufacturing system engineered for the modern light gauge steel framing industry. Combining high-speed production capabilities with energy-saving technology, this machine offers unparalleled versatility by seamlessly producing both C and Z purlins. Guided by an advanced PLC control system, it delivers exceptional precision, operational efficiency, and sustainability for large-scale construction material production.
- Versatile C & Z Profile Production: Designed with a quick-change mechanism, this machine can effortlessly switch between producing C channels and Z channels. This dual functionality eliminates the need for separate machines, saving valuable factory floor space and reducing capital investment.
- High-Speed & Energy-Efficient Operation: Engineered for maximum throughput without compromising performance, the machine utilizes an optimized drive system and energy-saving motors. This ensures high-speed continuous forming while significantly reducing power consumption and operational costs.
- Advanced PLC & Touchscreen Control: The intelligent PLC system acts as the brain of the machine, synchronizing feeding, forming, punching, and cutting processes with pinpoint accuracy. The intuitive touchscreen interface allows operators to easily set parameters, store different profile recipes, and monitor real-time production metrics.

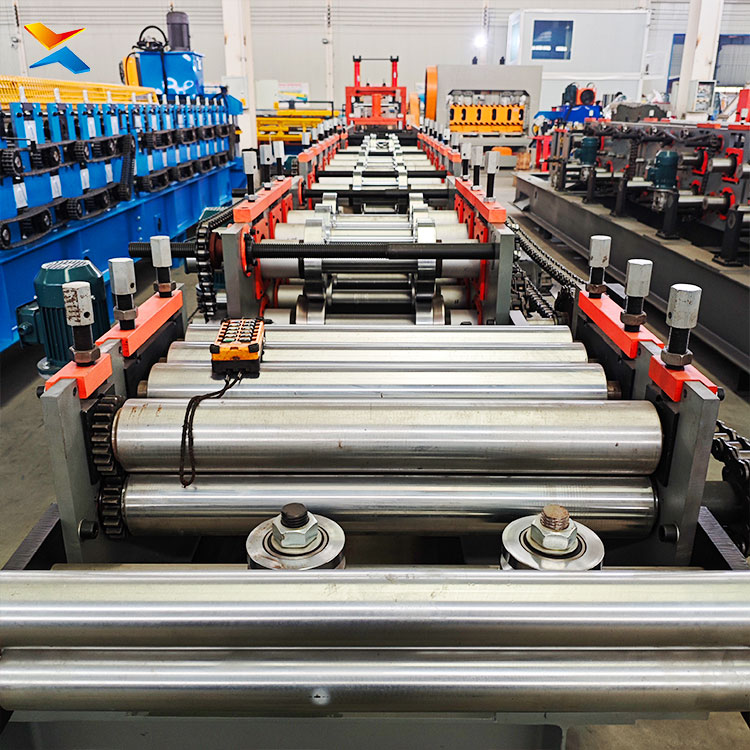

- Precision Roll Forming System: Constructed with high-quality, heat-treated rollers and precision-machined shafts, the forming station guarantees smooth transitions, uniform thickness, and exact dimensional tolerances for both C and Z profiles.

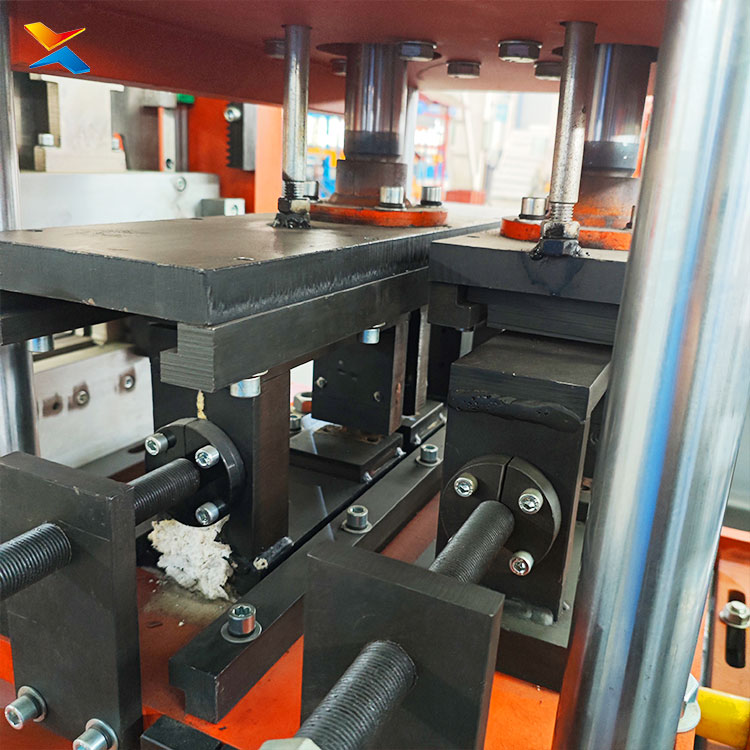

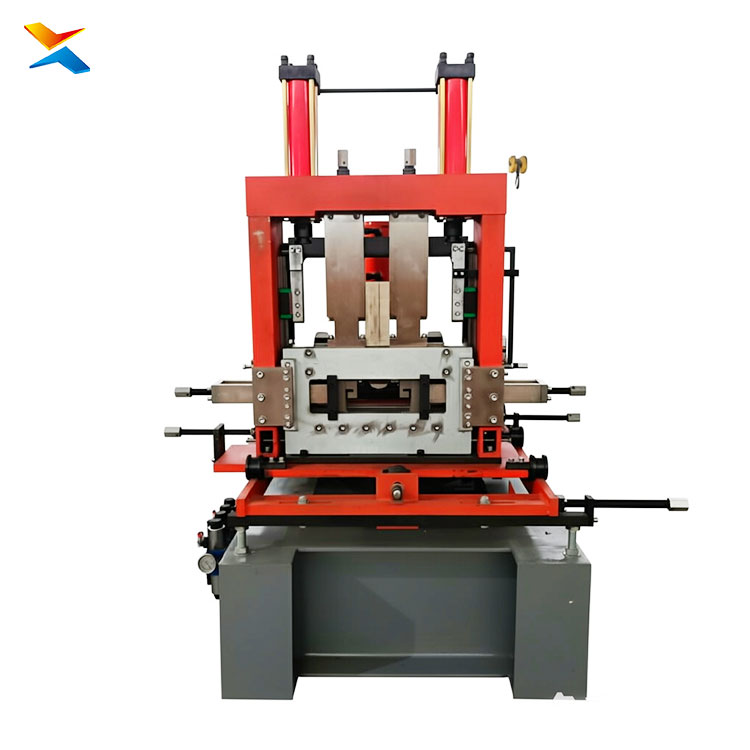

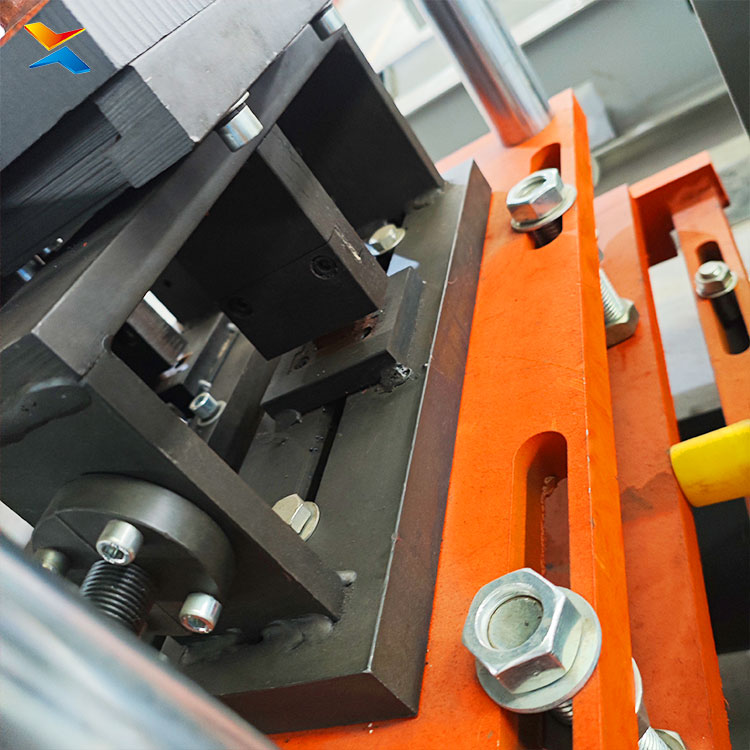

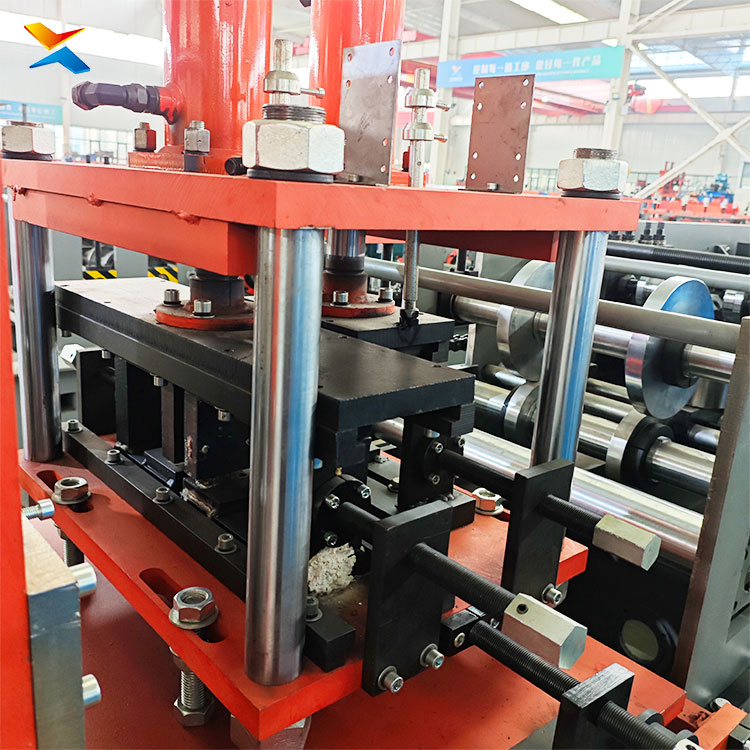

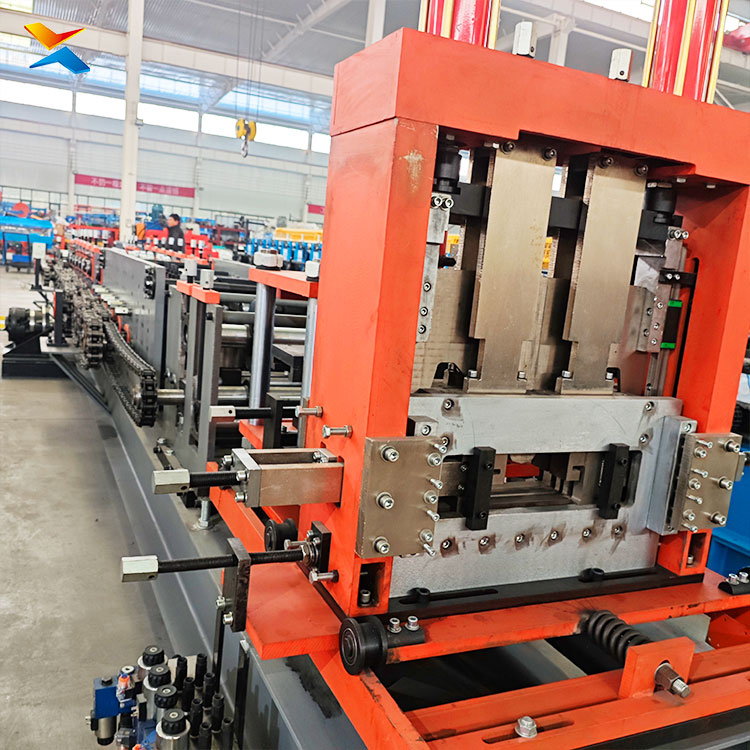

- Integrated Hydraulic Punching & Cutting: Features a high-performance hydraulic system capable of executing multiple punching operations in a single stroke. The servo-driven or hydraulic flying cut-off system ensures precise, burr-free cutting at high speeds without stopping the main production line.
- Robust & Durable Build: The heavy-duty welded frame undergoes rigorous stress-relief treatments to prevent deformation over time. This solid foundation ensures stable, vibration-free operation even during high-speed, continuous production runs.
The high-quality light gauge steel profiles generated by this machine are essential components in contemporary construction, including:
- Prefabricated steel structures and modular buildings
- Industrial warehouses, factories, and logistics centers
- Residential and commercial light steel framing systems
- Agricultural and rural construction projects
- Solar energy mounting structures and support systems
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
