Product Overview

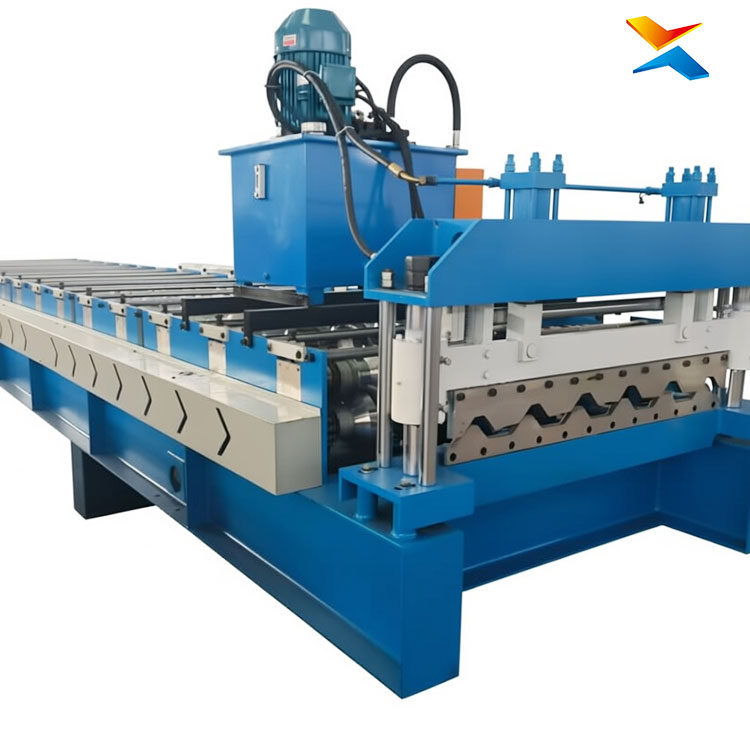

The Trapezoidal Roof Sheet Roll Forming Machine, widely recognized in the industry as the IBR Metal Roofing Panel Making Machine, is a highly specialized manufacturing system designed to produce the iconic trapezoidal profile metal roofing sheets. The IBR (Inverted Box Rib) profile is globally renowned for its superior structural strength, excellent water-shedding capabilities, and aesthetic appeal, making it the premier choice for large-span industrial warehouses, commercial buildings, and agricultural facilities. This automated cold roll forming line efficiently transforms color-coated steel coils (PPGI), galvanized steel (GI), or aluminum coils into continuous, high-quality roofing panels. Equipped with advanced PLC control systems and precision-engineered roller stations, the machine guarantees consistent rib height, exact panel width, and flawless surface finishes, providing a turnkey solution for modern metal roofing manufacturers.
- Premium IBR Profile Design: The machine is specifically calibrated to produce the distinct trapezoidal IBR profile, which offers an optimal balance of load-bearing capacity and water drainage. This design ensures superior wind uplift resistance and leak-proof performance, critical for expansive warehouse roofs.

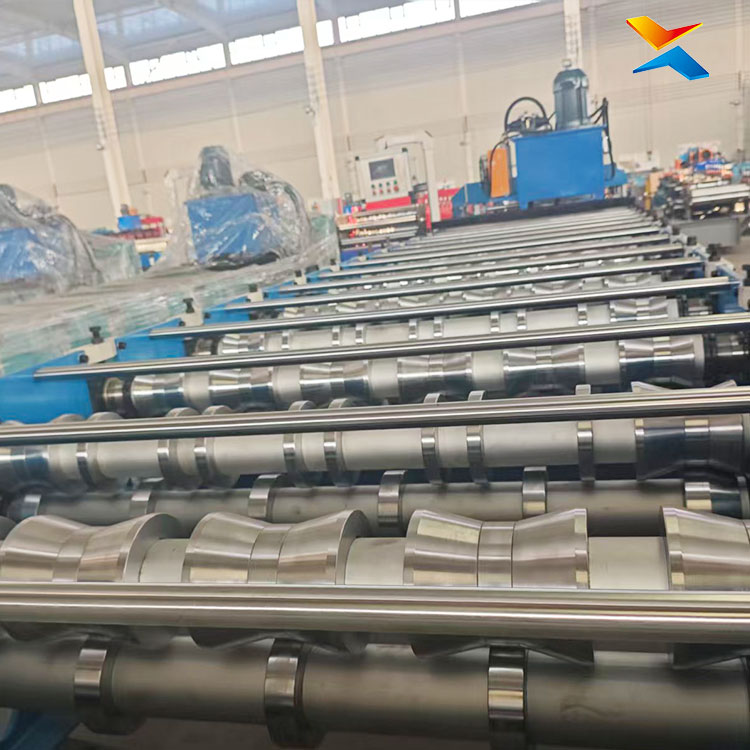

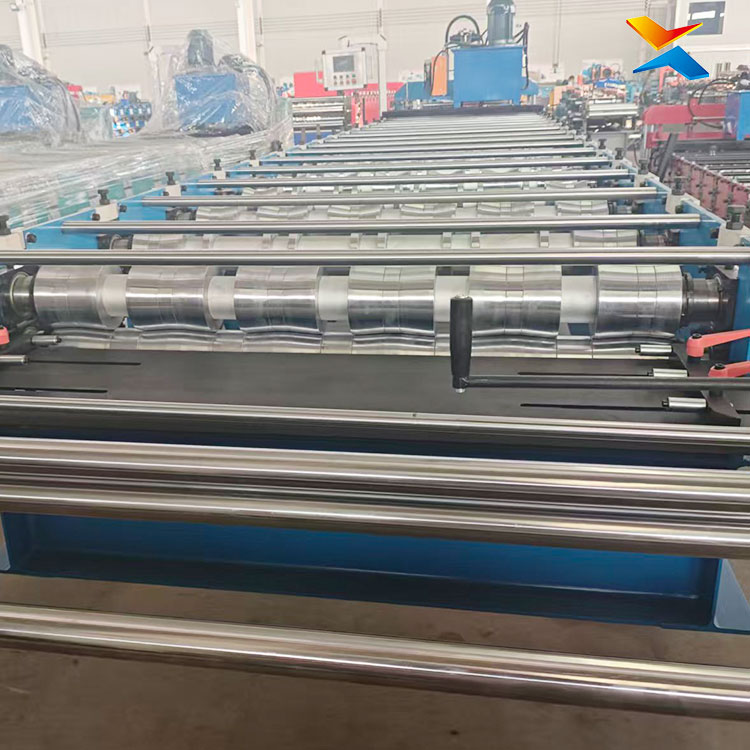

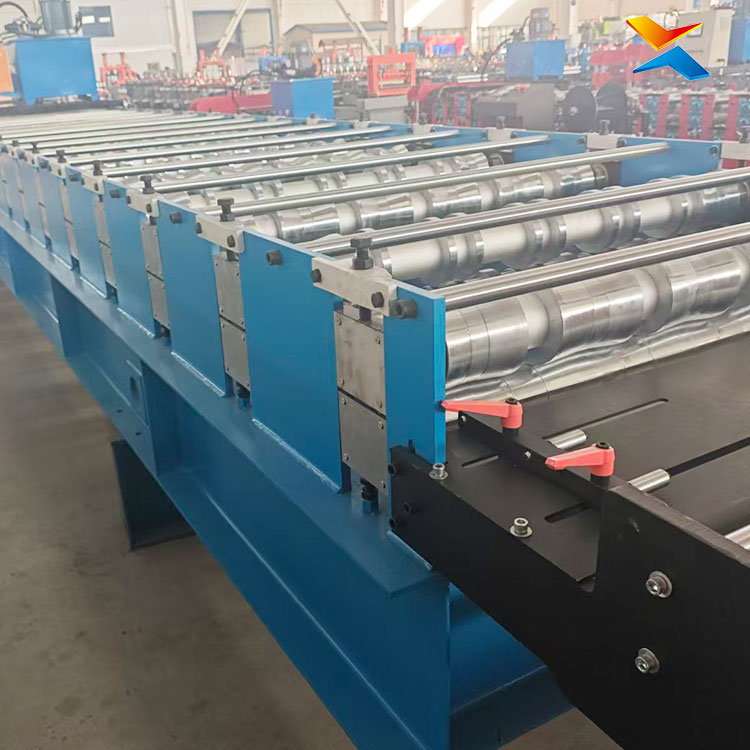

- Heavy-Duty Precision Rollers: The forming rollers are manufactured from high-grade 45# steel, precision-machined, and coated with hard chrome to ensure a smooth, scratch-free finish on the metal panels. Heat treatment processes guarantee that the rollers maintain their exact shape and durability over years of continuous high-speed production.
- Advanced PLC Automation & HMI: The production line is governed by an intelligent PLC control system featuring a user-friendly touchscreen interface. Operators can effortlessly input panel lengths, quantities, and batch settings. The system automates the entire process, ensuring precise length tolerances and minimizing human error.

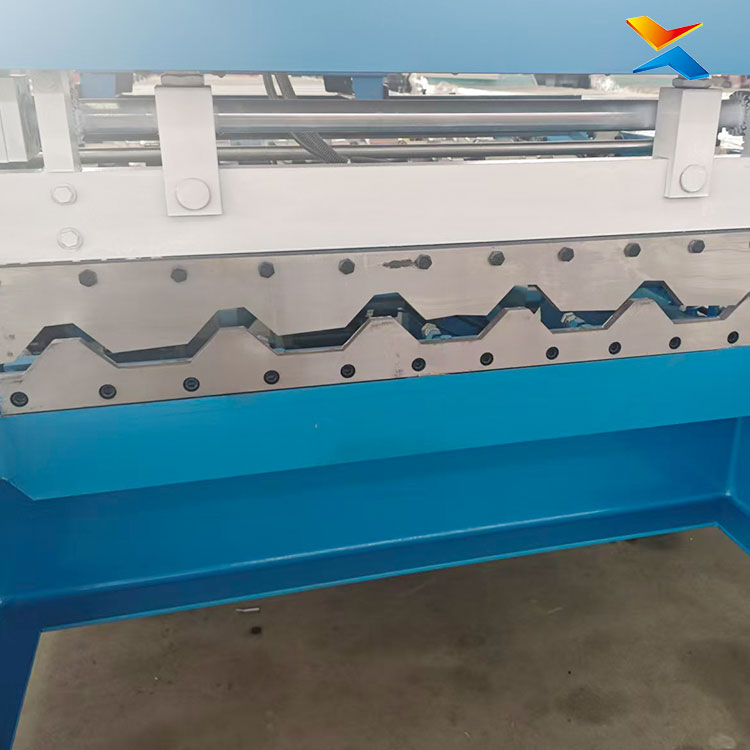

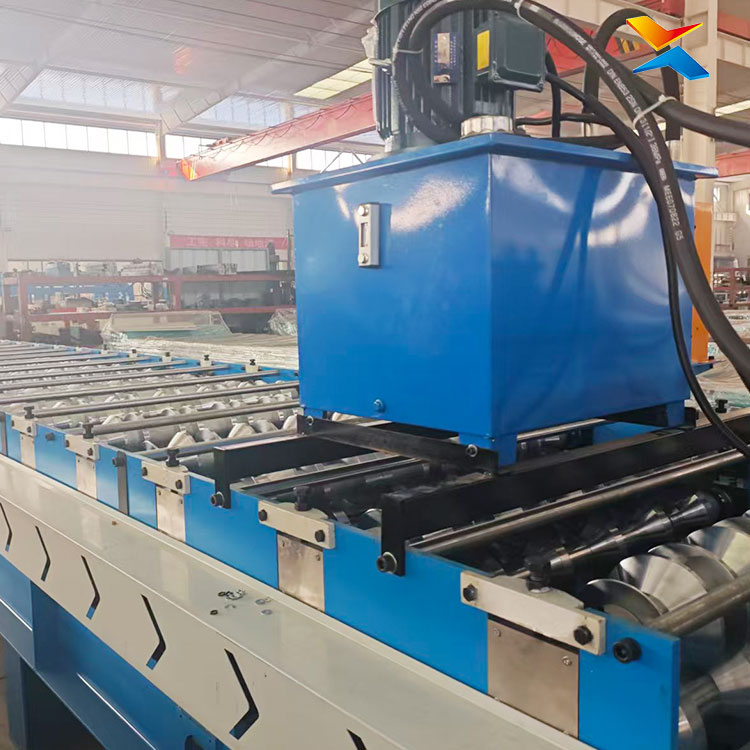

- High-Speed Hydraulic Flying Cut-Off: The integrated hydraulic cutting system dynamically tracks the moving panel during production, executing clean, burr-free cuts at exact lengths without stopping the machine. This continuous cutting technology maximizes production efficiency and throughput.
- Versatile Material Compatibility: Engineered to handle a wide range of raw materials, the machine processes PPGI, GI, and aluminum coils with thicknesses typically ranging from 0.3mm to 0.8mm. Adjustable entry guides and leveling equipment ensure the material feeds perfectly straight into the forming section.
- Robust Structural Frame: The main machine body is constructed from heavy-duty welded steel and reinforced H-beams, providing exceptional stability and vibration resistance. This robust architecture ensures consistent panel quality even during prolonged, high-speed operations.
The trapezoidal IBR roofing panels produced by this machine are the industry standard for a wide variety of structural and architectural applications:
- Industrial Warehouses & Factories: Providing durable, weather-resistant, and high-load-capacity roofing for large-span manufacturing plants, logistics centers, and storage facilities.
- Commercial Buildings: Used extensively in shopping malls, exhibition halls, sports arenas, and airport terminals due to their sleek, modern appearance and structural reliability.
- Agricultural Facilities: Ideal for greenhouses, poultry farms, and equipment storage barns, offering excellent protection against harsh weather conditions.
- Residential & Modular Construction: Increasingly popular in modern residential architecture and modular housing for its clean lines, fast installation, and longevity.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
