Product Overview
The PPGI / GI Trapezoidal Single Sheet Machine is a premium, high-precision roll forming system specifically engineered to manufacture superior trapezoidal and corrugated metal panels. Designed to process PPGI (Pre-Painted Galvanized Iron) and GI (Galvanized Iron) coils, this advanced equipment delivers unmatched dimensional accuracy, ensuring that every panel features crisp, uniform ribs and flawless surface finishes. By combining a rigid mechanical architecture with intelligent automation, this roll former guarantees zero-defect output and exact length tolerances. It is the ultimate manufacturing solution for fabricators producing high-quality roofing and wall cladding for industrial, commercial, and residential construction projects.

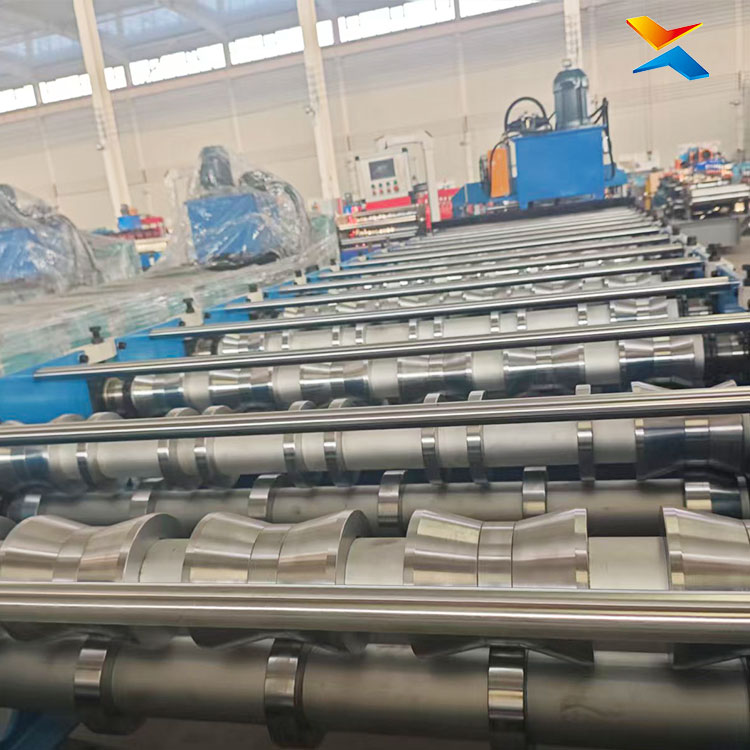

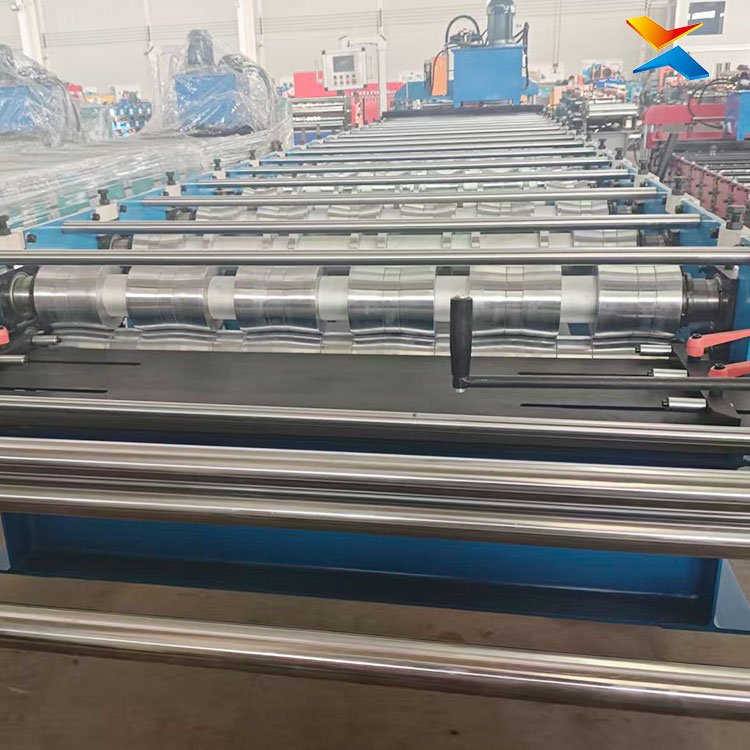

- High-Precision Roll Forming Technology: The machine features meticulously calibrated forming stations and premium-grade rollers that guarantee exact trapezoidal profiles. This high-precision engineering ensures perfect interlocking capabilities, superior structural strength, and exceptional water-shedding performance.
- Optimized for PPGI & GI Materials: Specially designed to handle color-coated and galvanized steel coils without damaging the protective surface. The smooth, hard-chromed rollers and precision guide systems prevent scratching, peeling, or deformation of the paint and zinc coatings, preserving the material’s corrosion resistance and aesthetic appeal.
- Intelligent PLC Automation & Control: Governed by an advanced PLC control system and a user-friendly touchscreen HMI, the machine allows operators to easily set panel lengths, quantities, and batch parameters. The intelligent system automates the entire workflow, ensuring high repeatability and minimizing human error.

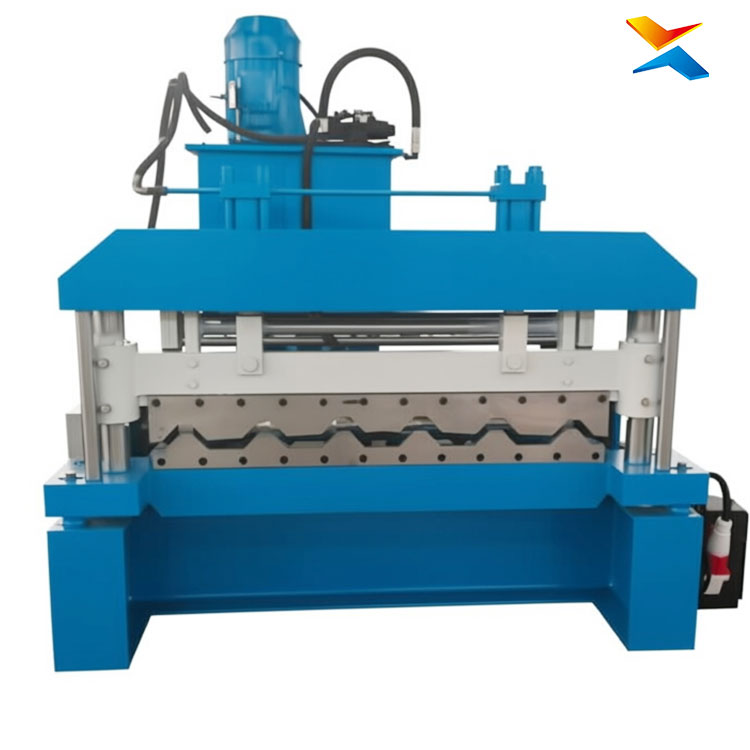

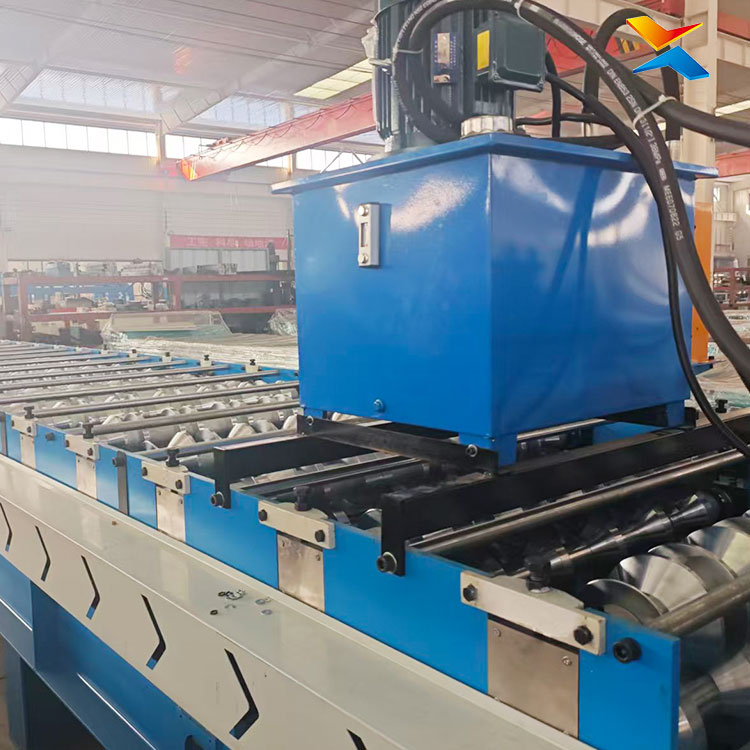

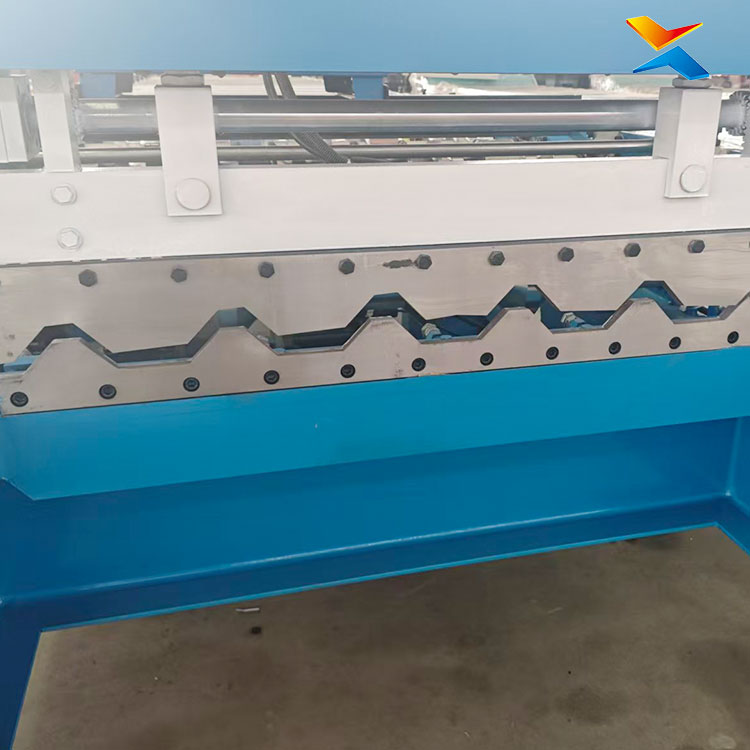

- Continuous Hydraulic Flying Cut-Off: Equipped with a high-speed hydraulic flying shear system that dynamically tracks the moving panel. This technology executes clean, burr-free cuts at exact lengths without stopping the production line, significantly maximizing throughput and operational efficiency.

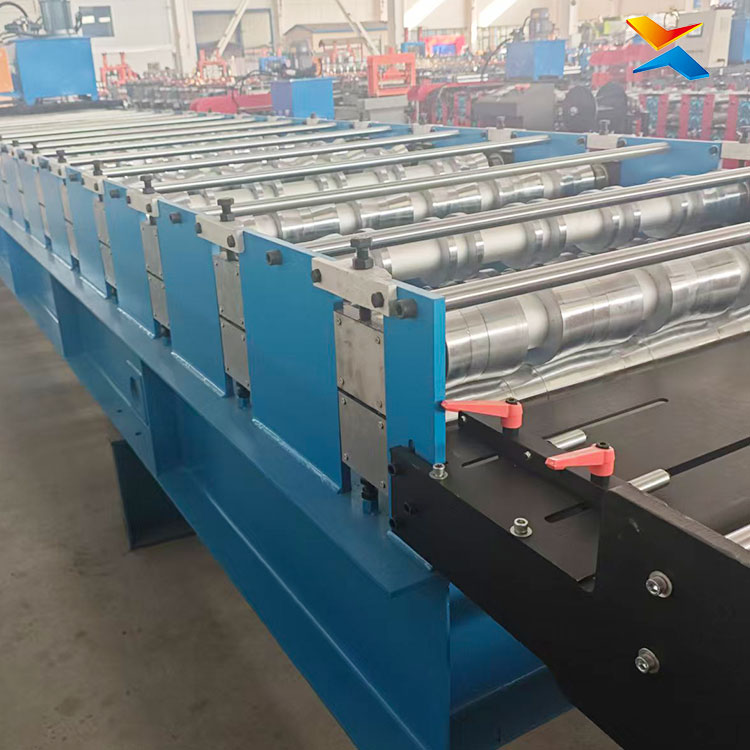

- Heavy-Duty Structural Frame: Built with a reinforced, stress-relieved steel chassis that absorbs high forming forces without deflection. This robust construction guarantees stable, vibration-free operation, ensuring consistent panel quality even during continuous, high-speed manufacturing.
- Versatile Production Capabilities: Highly adaptable to various trapezoidal and corrugated profiles, making it an ideal multi-purpose asset for manufacturers catering to diverse architectural and structural requirements.
The high-precision trapezoidal metal panels produced by this machine are widely utilized across the modern construction industry, including:
- Industrial & Warehouse Construction: Manufacturing durable, weather-resistant roofing and wall cladding for large-span factories, logistics centers, and storage facilities.
- Commercial & Public Buildings: Producing aesthetically pleasing, high-strength exterior facades and roofing for shopping malls, exhibition halls, sports arenas, and airports.
- Residential & Modular Housing: Creating sleek, modern metal roofing and siding for residential homes, villas, and prefabricated modular buildings.
- Agricultural & Rural Structures: Providing reliable, long-lasting roofing solutions for greenhouses, poultry farms, and agricultural equipment storage.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
